7.1"-10.1" LCD Display (8.8")

8.8 Inch TFT LCD Display 480×1920 MIPI High Brightness 550nits LCD Display For Automotive

Part No.:ET088WF01-TT
Size:8.8″ inch
Resolution:480x1920
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:64.1x231.2mm
Active Area:54.72x218.88mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:550nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

8.8 Inch TFT LCD Display 480×1920 MIPI High Brightness 550nits LCD Display For Automotive Video

8.8 Inch TFT LCD Display 480×1920 MIPI High Brightness 550nits LCD Display For Automotive Overview

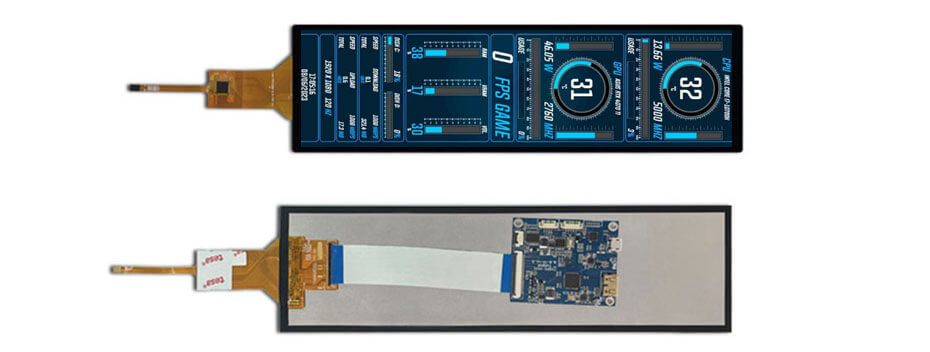

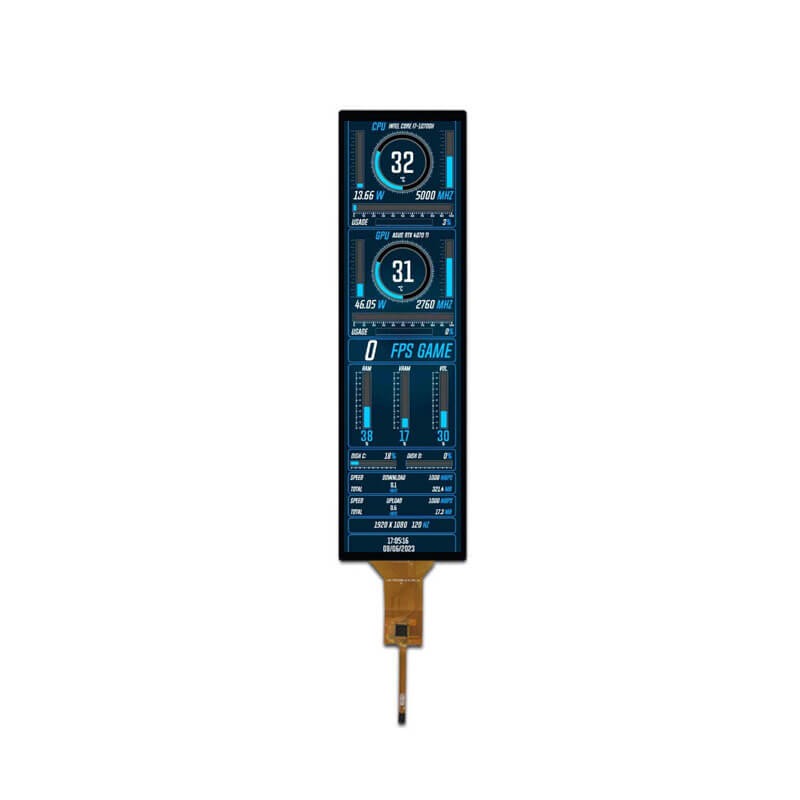

ET088WF01-TT is an 8.8-inch diagonal TFT-LCD display product with a transmissive display mode. ET088WF01-TT supports a resolution of 480×1920 with an aspect ratio of 1:4 (W:H), delivering a tall vertical display format, and utilizes a MIPI interface for signal transmission. It features an active area of 54.72(W)×218.88(H) mm and an outline dimension of 64.1(W)×231.2(H) mm. The display provides a brightness of 550 cd/m², suitable for automotive applications and bright ambient environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET088WF01-TT operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.
