10.2"-17.3" LCD Display (17")

17 Inch Square Display IPS 1920x1920 eDP 600nits High Brightness TFT LCD Display

Part No.:ET170SQ01-A
Size:17″ inch
Resolution:1920x1920
Panel Interface:eDP
Display mode:Transmissive
Outline Dimension:319.33x325.01mm
Active Area:305.28x305.28mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:600(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

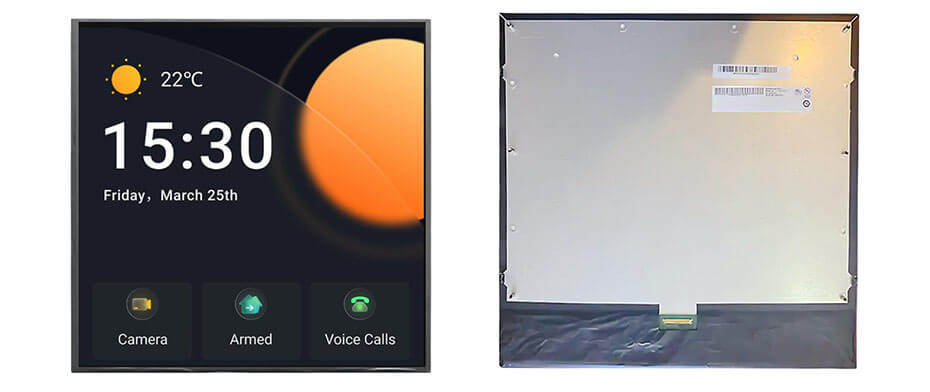

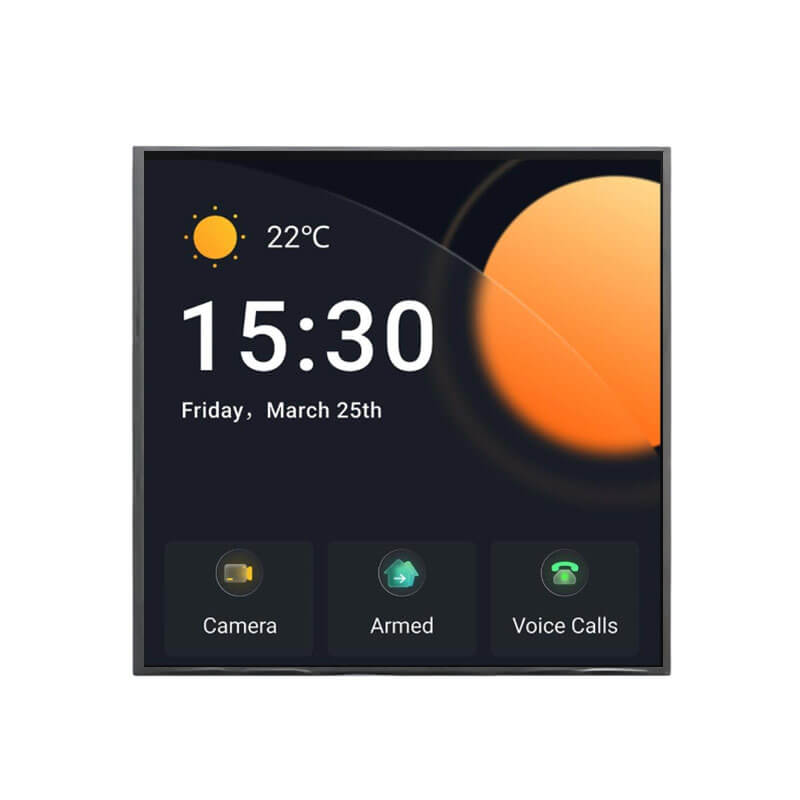

17 Inch Square Display Overview
ET170SQ01-A is a 17-inch diagonal square IPS TFT LCD display with a resolution of 1920×1920, featuring an eDP interface. The display operates in transmissive mode and has an active area of 305.28(W)×305.28(H) mm, with an outline dimension of 319.33(W)×325.01(H) mm. ET170SQ01-A provides high brightness of 600 cd/m², wide viewing angles of 89° in all directions (L/R/U/D), and supports operation from –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
