7.1"-10.1" LCD Display (7.6")

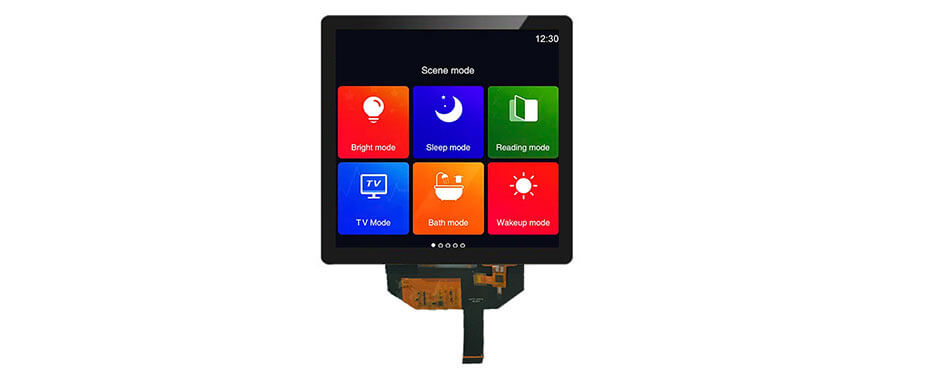

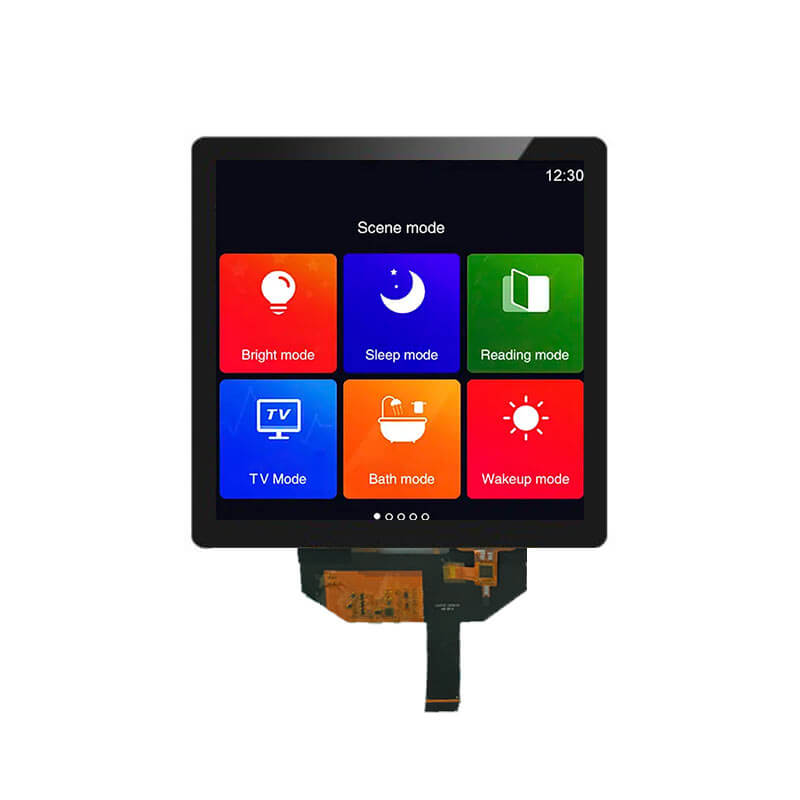

7.6 Inch Square Display 1200x1200 MIPI 1000nits High Brightness TFT LCD Display With Capacitive Touch

Part No.:ET076SQ02-GXT
Size:7.6″ inch
Resolution:1200x1200
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:142.56x148.14mm
Active Area:135.36x135.36mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

7.6 Inch Square Display Overview
7.6 Inch Square Display 1200x1200 MIPI 1000nits High Brightness TFT LCD Display With Capacitive Touch.

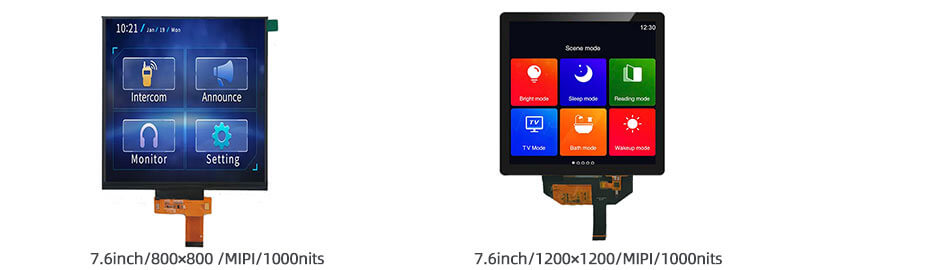

More 7.6 Inch Square Display For Reference
ET076MBA1-GXT (800x800, MIPI, 1000nits, -20~70°C, 142.56x148.24mm)
ET076SQ02-GXT (1200x1200, MIPI, 1000nits, -20~70°C, 135.36x135.36mm)

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
