8.8 inch 1280x320 Bar Type Color TFT LCD With LVDS Interface Screen Flat Rectangle Transmissive For Automotive Industrial

Part No.:ET088BA01-SD
Size:8.8″ inch
Resolution:1280x320
Panel Interface:LVDS
Display mode:TN,Transmissive
Outline Dimension:/
Active Area:216.95x54.24
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:400nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Products Description

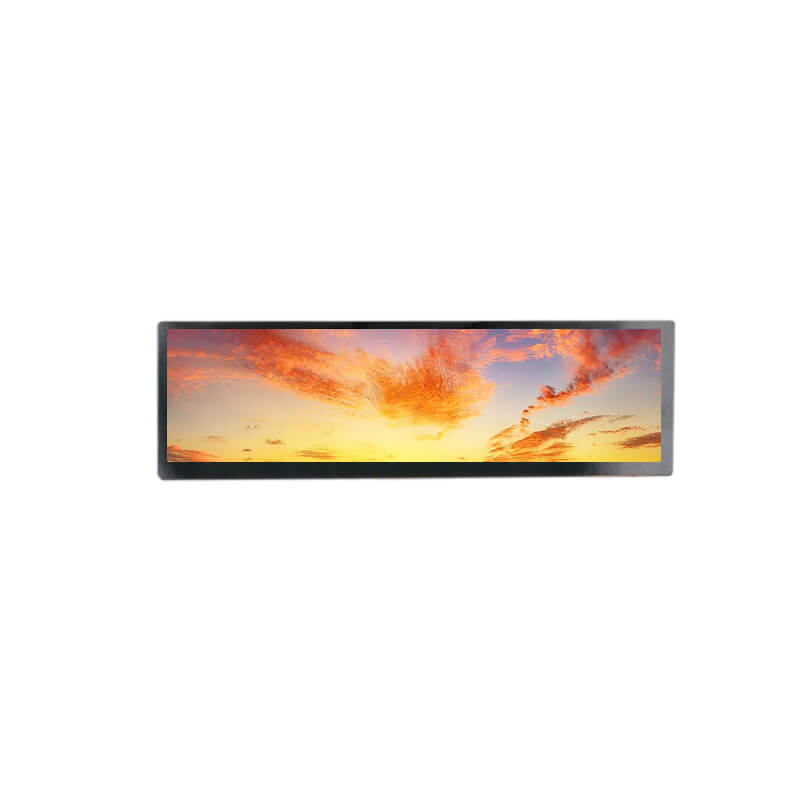

ET088BA01-SD-8.8inch-TFT-1280x320-LVDS-Bar-type-2

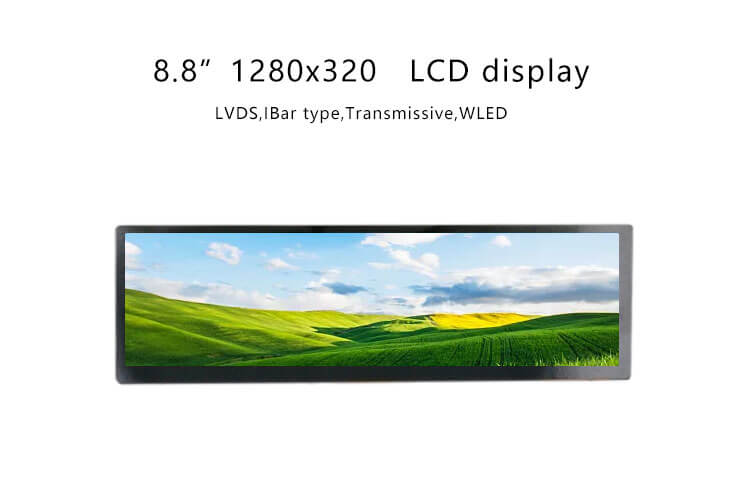

ET088BA01-SD_02

Panel Size	8.8”
Pixel Number	1280x320
Operating Mode	TN, Transmissive
Display area	216.95*54.24
Brightness	400nits
Viewing Angle	TN
Signal Interface	LVDS 40 Pins
Display Color	16.7M
Contrast Ratio	700:1
Environment	Operating Temp.:-20 ~ 70 °C; Storage Temp.:-30 ~ 80 °C

ET088BA01-SD_03 ET088BA01-SD_04
