7.1"-10.1" LCD Display (8.2“)

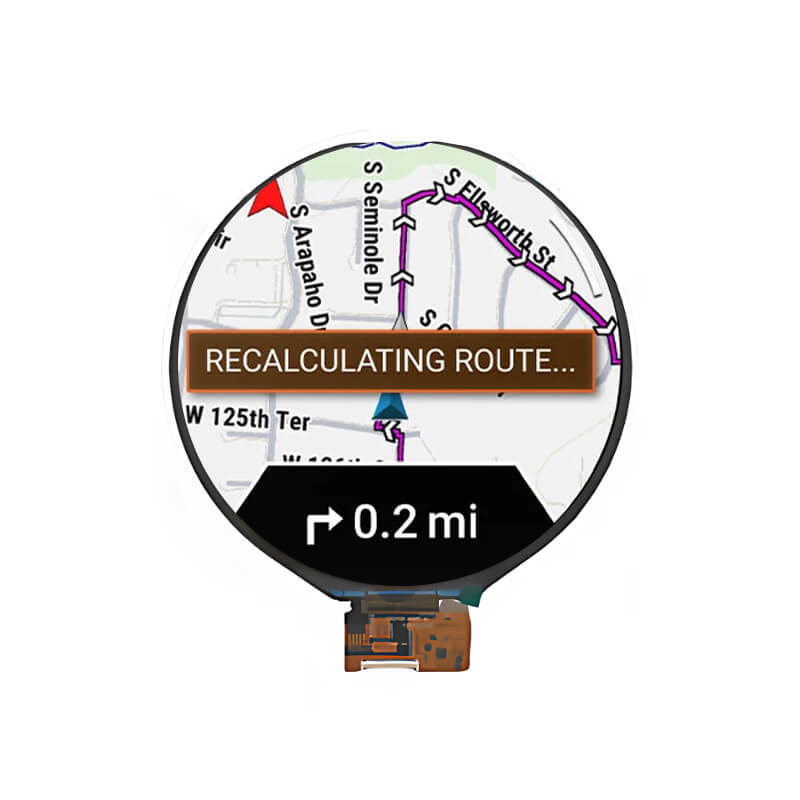

8.2 Inch Round Display 1080×1080 IPS Circular Display with In-Cell Touch & HDMI/Android Board

Part No.:ET082CR01-GXT
Size:8.2″ inch
Resolution:1080x1080
Panel Interface:40pin MIPI
Display mode:Normally Black
Outline Dimension:219.30x224.02x4.0mm
Active Area:208x208mm
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~70°C / /
Touch:yes

8.2 Inch Round Display 1080×1080 IPS Display with In-Cell Touch & HDMI/Android Board Overview
ET082CR01-GXT is an 8.2 inch diagonal round IPS display screen product with in-cell capacitive touch. ET082CR01-GXT supports a display resolution of 1080×1080 with a 1:1 (W:H) aspect ratio, featuring a circular display design and IPS viewing characteristics. It features an active area of 208(W)×208(H) mm and an outline size of 219.30(W)×224.02(H)×4.0(D) mm. ET082CR01-GXT can provide 350 cd/m² display brightness and uses a Normally Black display mode, with a 40-pin MIPI display interface. It features IPS wide viewing angles in L/R/U/D directions and supports an operating temperature range of -20°C to 70°C. The display is equipped with an in-cell capacitive touch panel and can be paired with an HDMI driver board or Android board for various display applications.

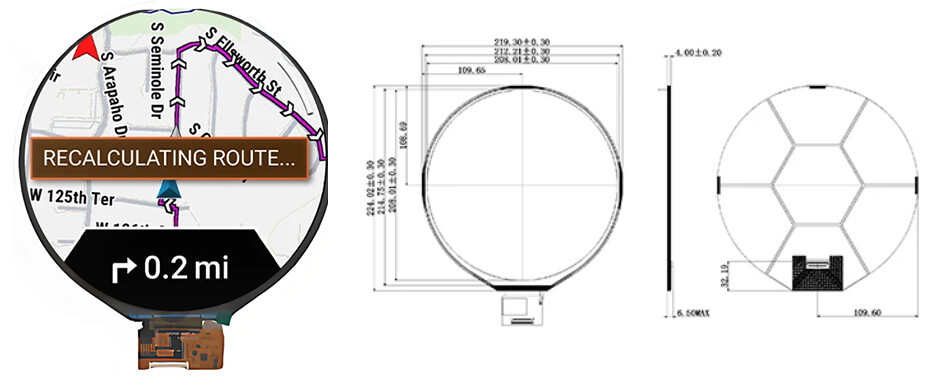

8.2 Inch Round Display 1080×1080 IPS Display with In-Cell Touch & HDMIAndroid Board
More 8.2 Inch Circular Display Solution For Reference

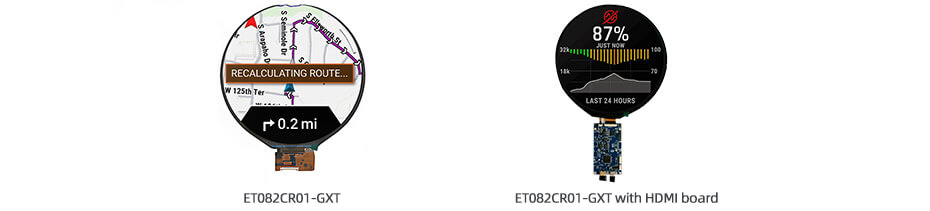

ET082CR01-GXT
ET082CR01-GXT with HDMI board
