7 Inch TFT LCD Display 800×480 Parallel RGB High Brightness 800nits Wide Temperature LCD Display For Automotive

7 Inch Automotive Display Overview
TX18D210VM0BAA is a 7.0 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX18D210VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 167.7(W)×109.5(H)×20.3(D) mm, viewing area size of 156.2(W)×94.5(H) mm, net weight of 214g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D210VM0BAA can provides 800 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX18D210VM0BAA utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 7 Inch Automotive Display For Reference
TX18D200VM0EAA (1920×1080, LVDS, IPS, 1200nits, -40~85°C, 169×104mm)
ET070FH01-H (1920×1080, MIPI, IPS, 4500nits, -20~70°C, 164.19×97.87mm)
COM70H7M24ULC (800×480, LVDS, VA, 790nits, -30~85°C, 169.8×109.7mm)
TX18D211VM0BXA (800×480, LVDS, IPS, 1000nits, -30~80°C, 170×113.3mm)
COM70H7M40ULC (800×480, LVDS, VA, 400nits, -30~85°C, 169.8×109.7mm)
COM70H7M40ULN (800×480, LVDS, VA, 1200nits, -30~85°C, 169.8×109.7mm)
TX18D210VM0BAA (800×480, TTL, IPS, 800nits, -40~85°C, 167.7×109.5mm)
TM070RDHG34-00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)

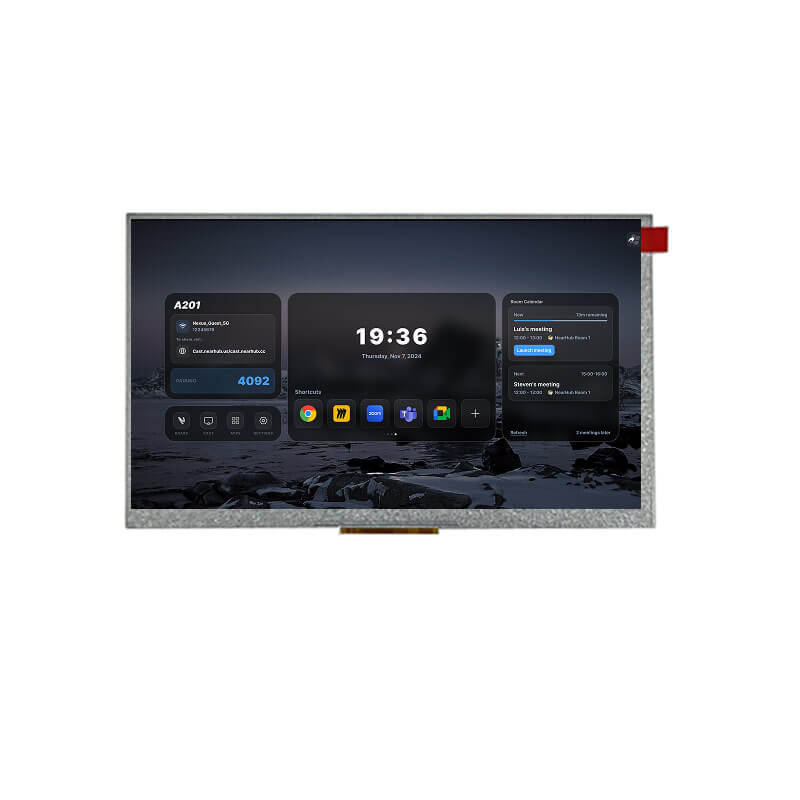

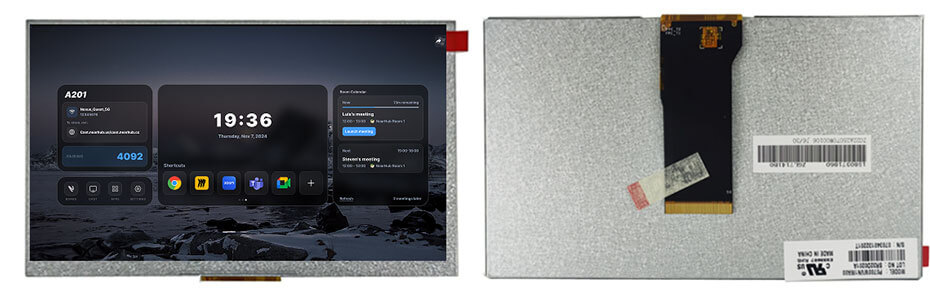

P0700WVN1MA00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)
ET070WS01-T (1024×600, TTL, IPS, 800nits, -20~70°C, 164.9×100mm)
ET070WS10-TC (1024×600, LVDS, IPS, 1000nits, -30~85°C, 179.34×109.89mm)
ET070WX03-T (800×1280, MIPI, IPS, 400nits, -20~70°C, 99.65×160.85mm)
DJ070IA-20B (1280×768, LVDS, IPS, 930nits, -35~80°C, 163.35×107.12mm)
