7 Inch TFT LCD Display 800×480 LVDS High Brightness Wide Temperature Display For Aerospace Display

7 Inch Aerospace Display Overview

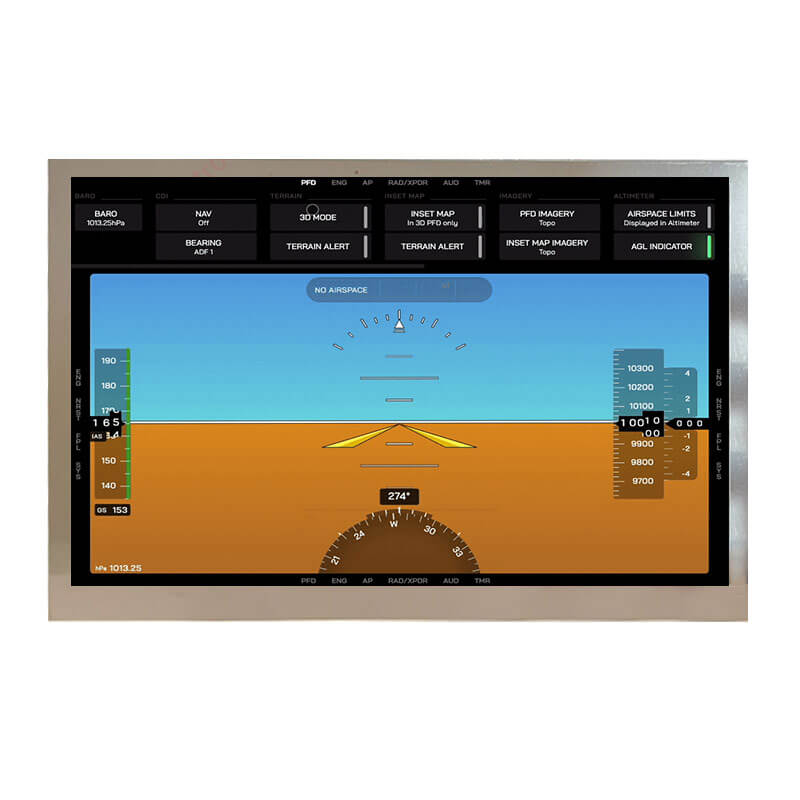

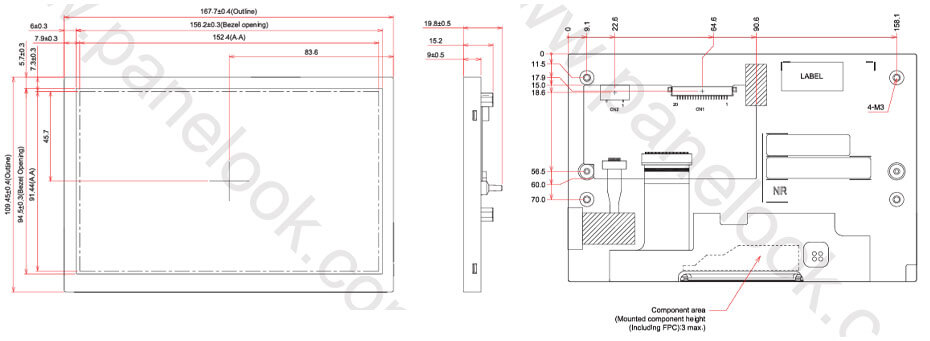

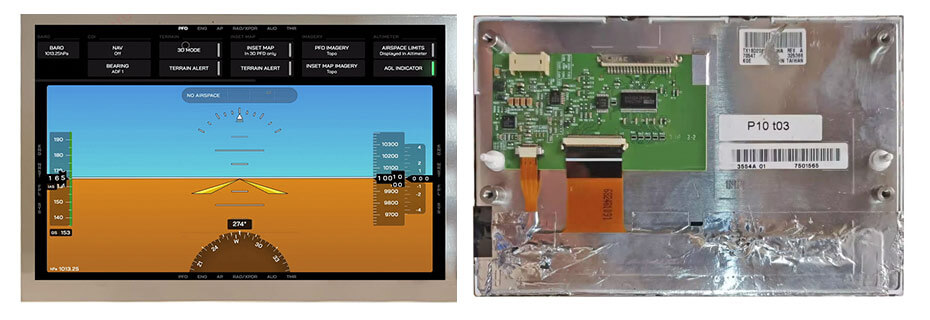

TX18D206VM0BAA is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX18D206VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 167.7(W)×109.45(H)×20.3(D) mm, viewing area size of 156.2(W)×94.5(H) mm, net weight of 231g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D206VM0BAA can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX18D206VM0BAA utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 7 Inch Aerospace Display For Reference
TX18D205VM0BAA (800×480, TTL, 800nits, -40~85°C, 167.7×109.45mm)
P0700WVN1MA00 (800×480, TTL, 1000nits, -30~85°C, 164.9×100mm)
C070VAN02.9 (800×480, TTL, 1000nits, -30~85°C, 167.3×109.2mm)
TX18D206VM0BAA (800×480, LVDS, 800nits, -40~85°C, 167.7×109.45mm)
ET070WV21-K (800×480, LVDS, 1100nits, -30~85°C, 165.4×104.59mm)
P0700WVF1MA00 (800×480, LVDS, 1500nits, -30~80°C, 169.8×109.7mm)
P0700WVF1MA10 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
TX18D212VM0BAA (1280×768, LVDS, 1500nits, -40~85°C, 164.4×105mm)
DJ070IA-20B (1280×768, LVDS, 930nits, -35~80°C, 163.35×107.12mm)
ET070WS10-TC (1024×600, TTL, 1000nits, -30~80°C, 164.9×100mm)
ET070WS07-KT (1024×600, LVDS, 1600nits, -30~85°C, 182×117.6mm

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
