7 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display For Marine Display

7 Inch Marine Display Overview

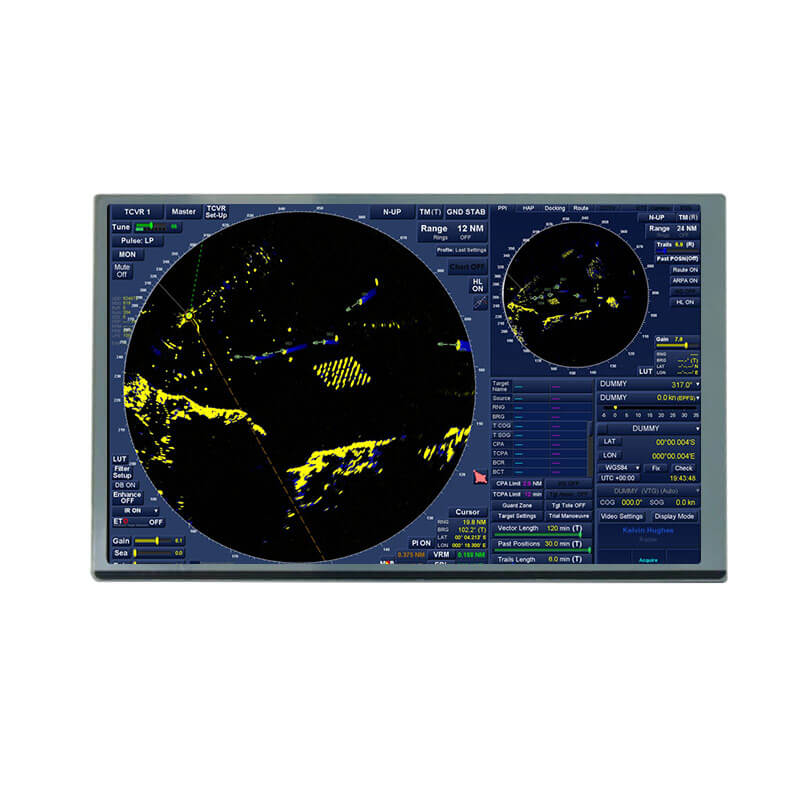

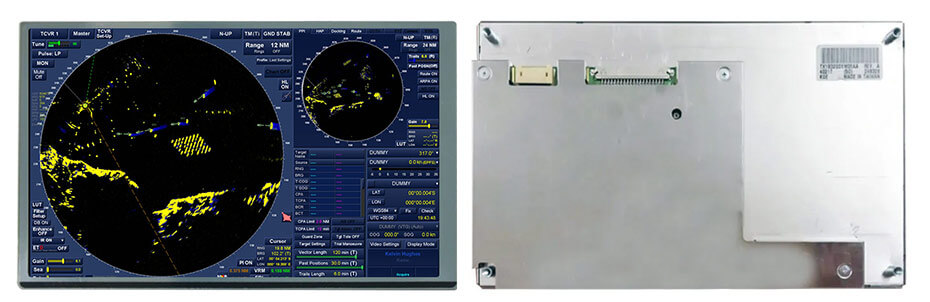

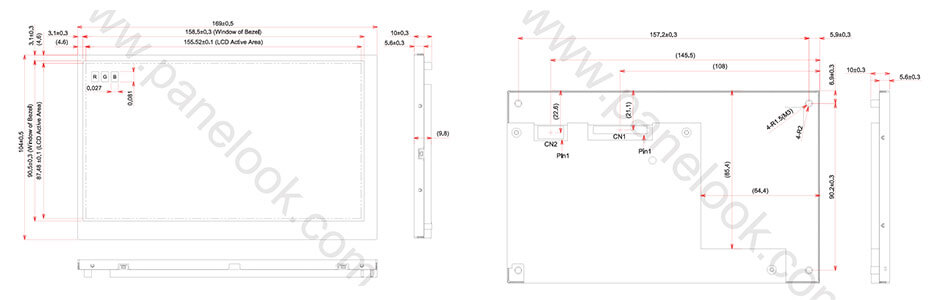

TX18D200VM0EAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 313 PPI. As for mechanical detail, it features active area of 155.52(W)×87.48(H) mm, outline size of 169(W)×104(H)×10.3(D) mm, viewing area size of 158.5(W)×90.5(H) mm, net weight of 180g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, TX18D200VM0EAA can provides 1200 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX18D200VM0EAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

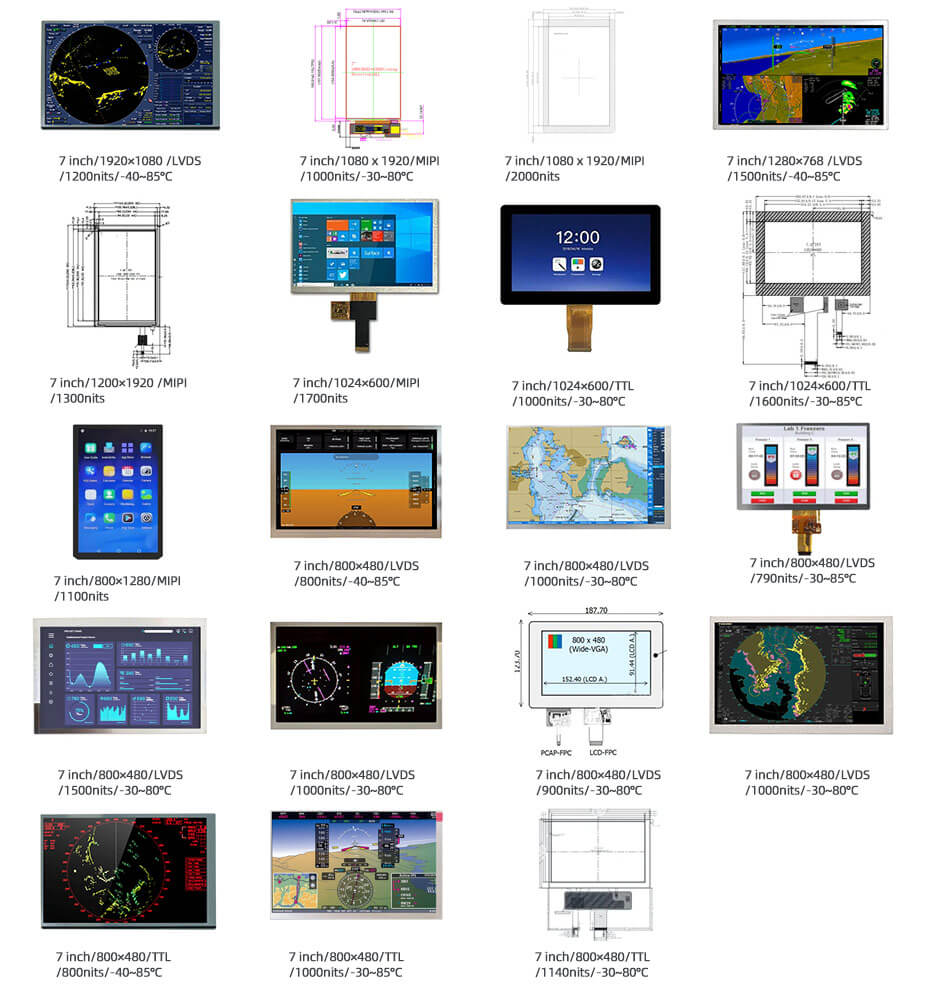

More 7 Inch Marine Display For Reference
TX18D200VM0EAA (1920×1080, LVDS, 1200nits, -40~85°C, 169×104mm)
ET7D0023 (1080×1920, MIPI, 1000nits, -30~80°C, 101.4×174mm)
ET070WV01-RT (1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm)
TX18D212VM0BAA (1280×768, LVDS, 1500nits, -40~85°C, 164.4×105mm)
ET070WU01-TT (1200×1920, MIPI, 1300nits, -20~70°C, 105.18×163.34mm)
ET070HD05-K (1024×600, MIPI, 1700nits, -20~70°C, 165×100mm)
ET070WS10-TC (1024×600, TTL, 1000nits, -30~80°C, 164.9×100mm)
ET070WS07-KT (1024×600, LVDS, 1600nits, -30~85°C, 182×117.6mm)
ET070WX10-TT (800×1280, MIPI, 1100nits, -20~70°C, 108.1×164.2mm)
TX18D206VM0BAA (800×480, LVDS, 800nits, -40~85°C, 167.7×109.45mm)
TCG070WVLQGPNN-AN40 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
COM70H7M24ULC (800×480, LVDS, 790nits, -30~85°C, 169.8×109.7mm)
P0700WVF1MA00 (800×480, LVDS, 1500nits, -30~80°C, 169.8×109.7mm)
P0700WVF1MA10 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
COM70H7M44UTC (800×480, LVDS, 900nits, -30~80°C, 187.7×123.7mm)
G070ACE-LH1 (800×480, LVDS, 1000nits, -30~80°C, 170×110mm)
TX18D210VM0BAA (800×480, TTL, 800nits, -40~85°C, 167.7×109.5mm)
C070VAN02.9 (800×480, TTL, 1000nits, -30~85°C, 167.3×109.2mm)
ET070WV07-KT (800×480, TTL, 1140nits, -30~80°C, 190.5×105.4mm)

Key Features of Marine Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Marine Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
