1.44 Inch Square Display Overview

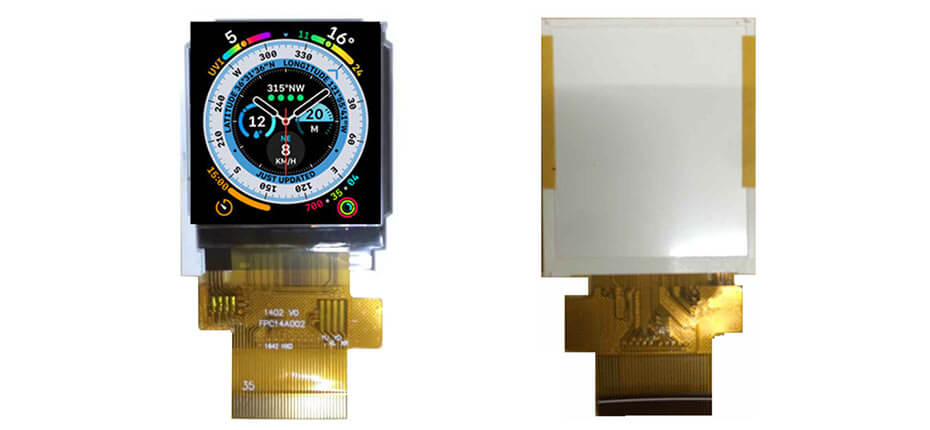

ET014QQ01-K is a 1.44-inch diagonal square TFT LCD display with a 128×128 resolution, featuring a CPU/SPI interface. The display operates in TN mode and has an active area of 25.49(W)×26.49(H) mm, with an outline size of 32.36(W)×38(H) mm. ET014QQ01-K provides a typical brightness of 450 cd/m² and viewing angles of 60° left/right/up and 30° down. It supports operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.
More 1.4 Inch Square Display For Reference

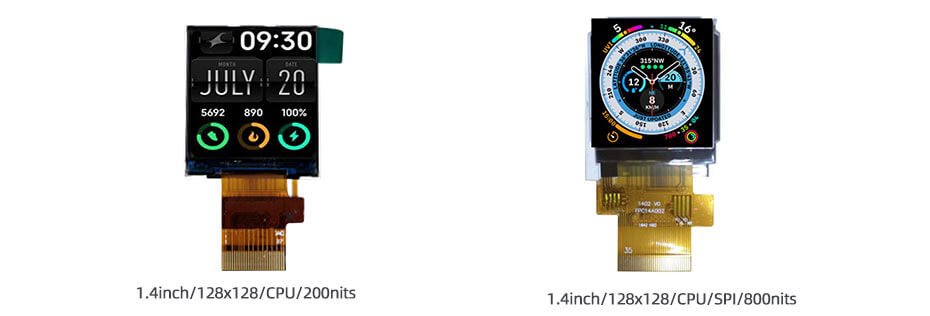

ET014SQ01-R (128x128, CPU, 200nits, -20~70°C, 30.5x33.22mm)
ET014QQ01-K (128x128, CPU/SPI,800nits, -20~70°C, 32.36x38mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
