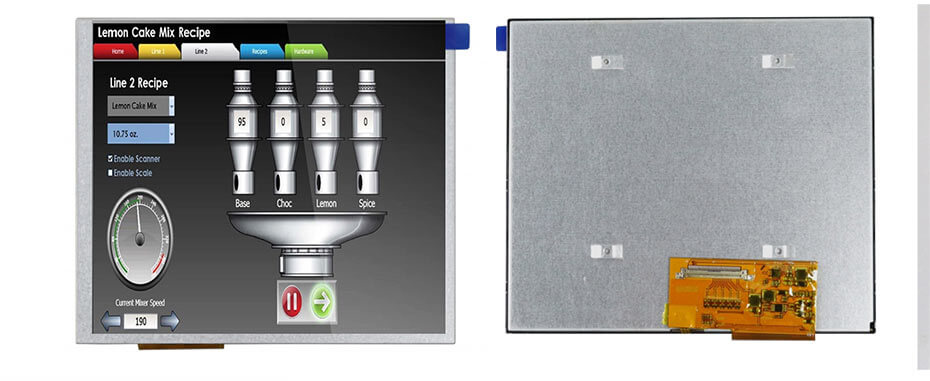

7 Inch Square Display IPS 600x600 LVDS Wide Temperature TFT LCD Display With Capacitive Touch

Part No.:ET070SQ03-KN
Size:7″ inch
Resolution:600x600
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:144x124mm
Active Area:130x113.78mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:430(Typ.)
Operation / Storage Temp:-30~70°C / -40~80°C
Touch:yes

7 Inch Square Display Overview
7 Inch Square Display IPS 600x600 LVDS Wide Temperature TFT LCD Display With Capacitive Touch.

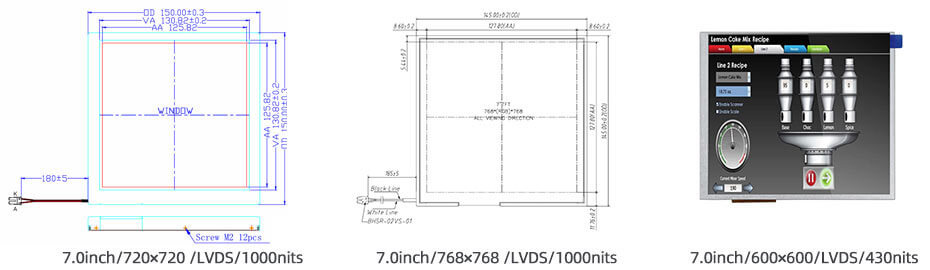

More 7 Inch Square Display For Reference
ET070SQ01-AP (720x720, LVDS, 1000nits, -20~70°C, 150x150mm)
ET070SQ02-AP (768x768, LVDS, 1000nits, -20~70°C, 145x145mm)
ET070SQ03-KN (600x600, LVDS, 430nits, -30~70°C, 144x124mm)

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
