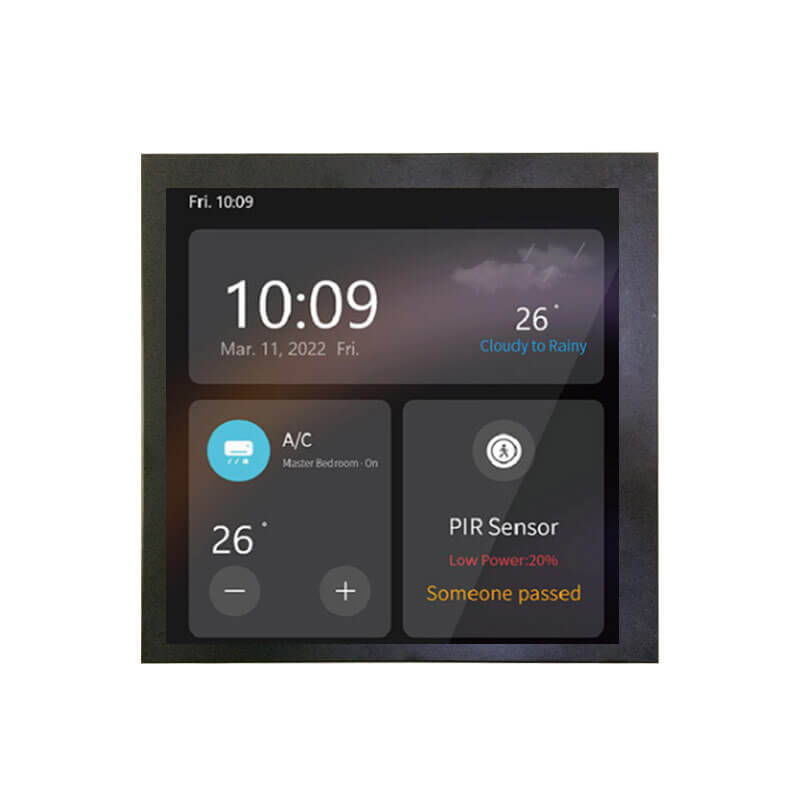

7.1 Inch Square Display 600x600 TTL 500nits High Brightness TFT LCD Display

Part No.:ET071SQ01-IL
Size:7.1″ inch
Resolution:600x600
Panel Interface:TTL
Display mode:Transmissive

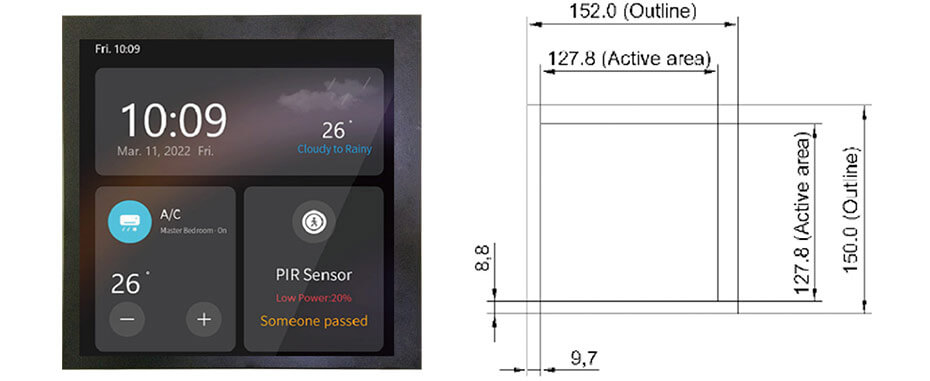

Outline Dimension:152x150mm
Active Area:127.8x127.8mm
Viewing Angle L/R/U/D:75/75/60/60
Brightness（cd/m2）:500(Min.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

7.1 Inch Square Display Overview
ET071SQ01-IL is a 7.1-inch diagonal square TFT LCD display with a 600×600 resolution, featuring a TTL interface. It operates in transmissive mode and has an active area of 127.8(W)×127.8(H) mm, with an outline dimension of 152(W)×150(H) mm. ET071SQ01-IL provides a minimum brightness of 500 cd/m², viewing angles of 75°/75°/60°/60° (L/R/U/D), and supports operation from 0 °C to 50 °C and storage from –20 °C to 60 °C. The display does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
