6"-15.6" Touch Screen (7")

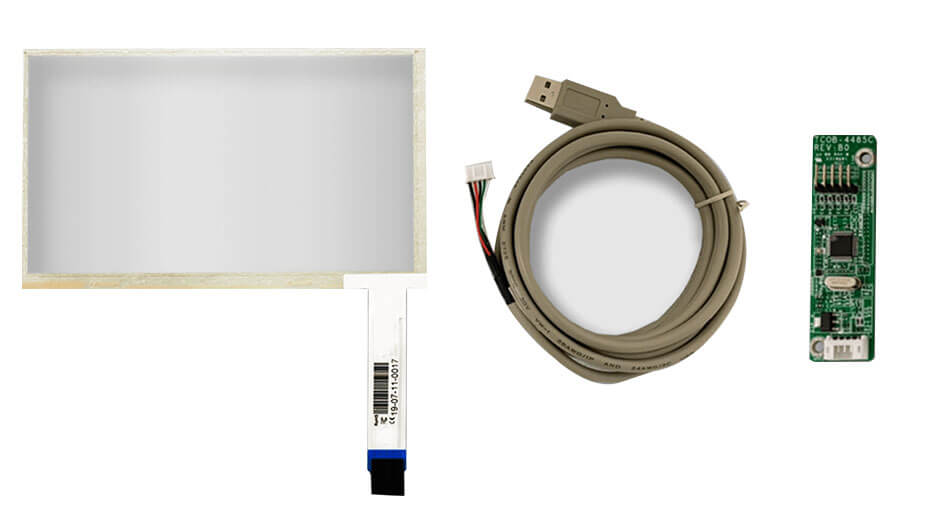

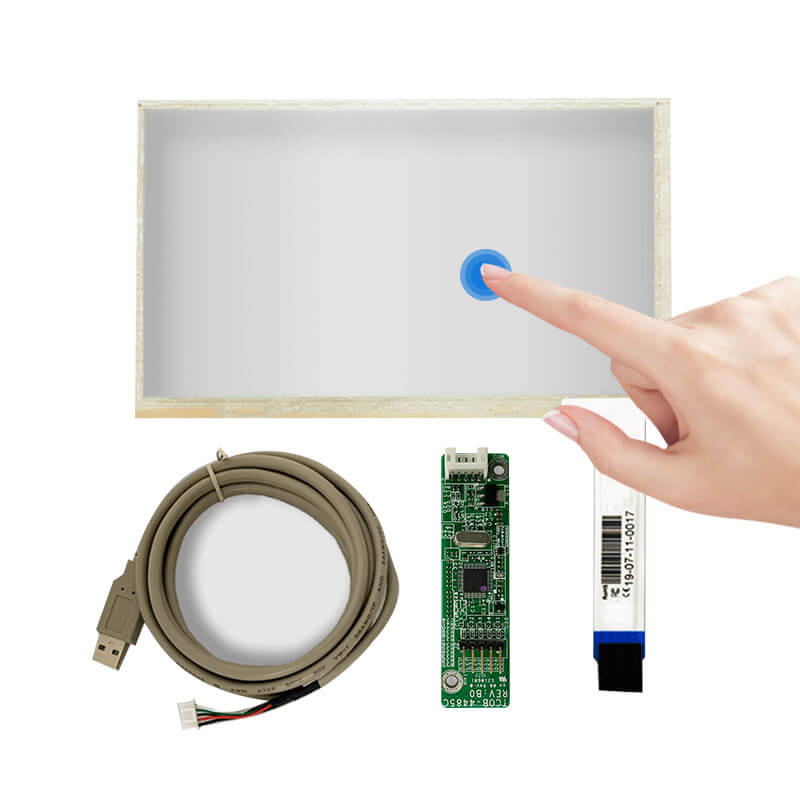

7 Inch RTP Touch Screen F/G Mechanism EETI IC COB Type USB Resistive Touch Screen

Part No.:ET070RTP01
Size:7″ inch
Resolution:Optional
Panel Interface:USB
Display mode:Resistive
Outline Dimension:164.5x99.5mm
Active Area:154.1x86.6mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-30~70°C / -40~80°C
Touch:yes

7 Inch Resistive Touch Screen
Product structure: Film/Glass
Surface hardness: Hard coating (3H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 154.1x86.6 mm
Outline Dim.:164.5x99.5 mm
Operation Temperature: -30 ~ 70°C
Storage Temperature: -40 ~ 80°C

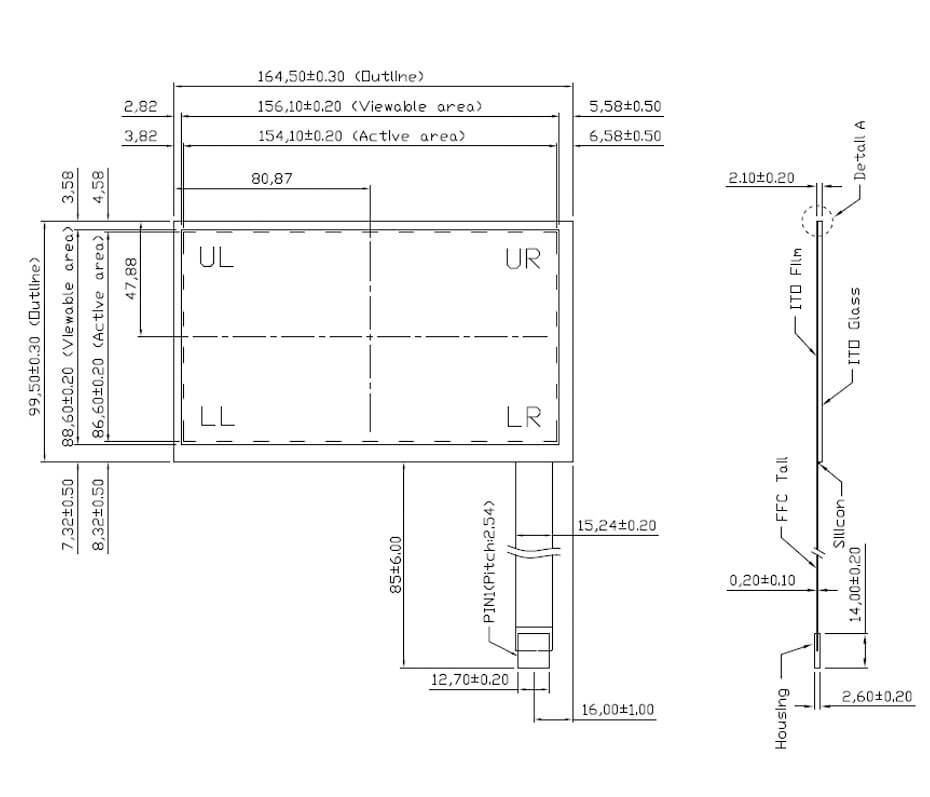

7 Inch Resistive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
