5.1"-7" LCD Display (7")

7 inch 800x1280 IPS MIPI Interface TFT LCD Capacitive Touch Brightness Screen for Industrial Outdoor Medical

Part No.:ET700071S0-CTP
Size:7″ inch
Resolution:800x1280
Panel Interface:MIPI
Display mode:Normally black
Outline Dimension:107.8(W)x187.67(H)mm
Active Area:94.2(W)x150.72(H)mm(A.A)
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:550(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

Products Description

TXW700071S0-CTP-7.0inch-800x1280-TFT-MIPI-IPS-capacitive-touch,-high-brightness-2

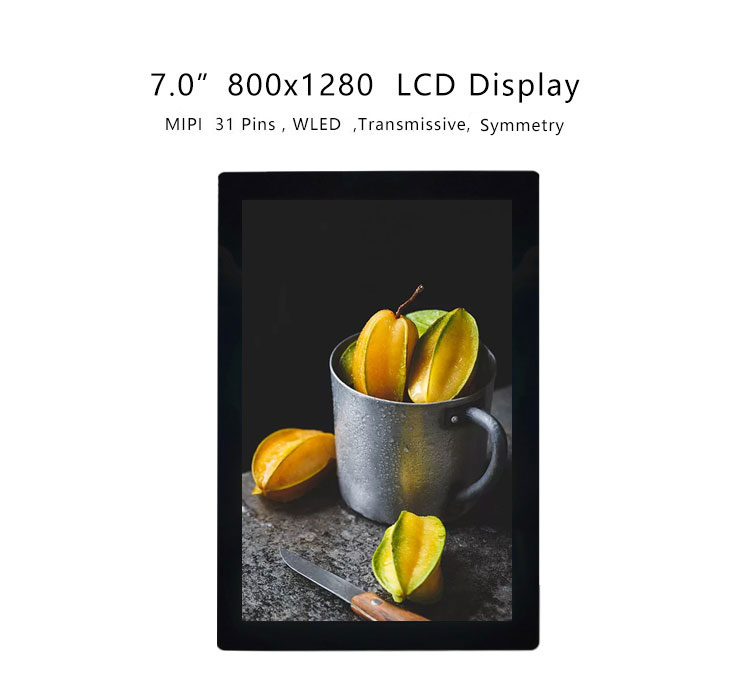

TXW700071S0-CTP_01 TXW700071S0-CTP_02 TXW700071S0-CTP_03

LCD SPECIFICATION
Screen Size	7.0 inch	Screen Type	a-Si TFT-LCD
Pixel Number	800×1280	Aspect Ratio	10:16 (W:H)
Active Area	94.2 (W) × 150.72 (H) mm (A.A)	Outline Dimension	107.8 (W) × 187.67 (H) mm
Brightness	550 (Typ.)	Contrast Ratio	1000:1 (Typ.)
Viewing Angle	80/80/80/80 (L/R/U/D)	Backlight Type	WLED
Viewing Direction	Symmetry	Form Factor	Flat Rectangle
Display Colors	16.7M	Max. Depth	4.45 mm
LC Family	IPS Family	Touch Screen	Without
Polarizer	Transmissive	Application	Industrial, Pad & Tablet
Interface Type	MIPI, 31 Pins Connector
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
