7.1"-10.1" LCD Display (7.8")

7.84 Inch 400x1280 850 Brightness 40pins LVDS Interface Equipped With Touch Screen IPS TFT LCD Display Panel For Industrial

Part No.:ZK0781280400B
Size:7.8″ inch
Resolution:400x1280
Panel Interface:LVDS,50 pins Connector
Display mode:Transmissive
Outline Dimension:67.8(W)x205.78(H)mm
Active Area:59.4(W)x190.08(H)(A.A)
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:850(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Products Description

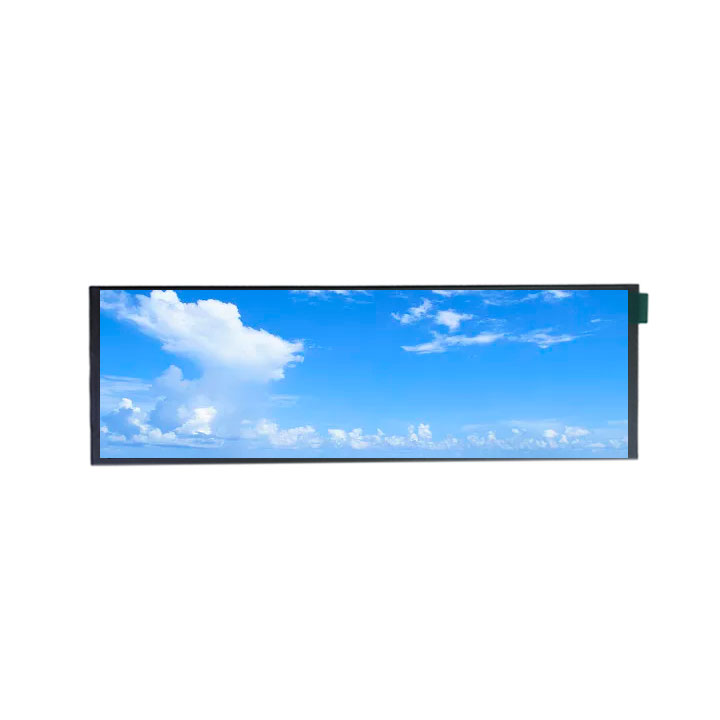

ZK0781280400B-7.8inch-1280×400-LVDS-high-brightness,-850nits,-IPS,-LVDS,-WITH-TOUCH-1

LCD SPECIFICATION
Screen Size	7.8 inch	Screen Type	a-Si TFT-LCD
Pixel Number	400×1280	Configuration	RGB Vertical Stripe
Active Area(mm)	59.4 (W) × 190.08 (H) (A.A)	Outline Dimension	67.8 (W) × 205.78 (H) mm
Luminance	850 (Typ.)	Contrast Ratio	900:1 (Typ.)
Viewing Angle	80/80/80/80 (L/R/U/D)	Backlight Type	WLED
Viewing Direction	Symmetry	Aspect Ratio	>3:1 (W:H)
Display Colors	16.7M	Light Source	WLED , 30K hours , No Driver
Max. Depth	4.75 mm	Touch Screen	Without
Polarizer	Transmissive	Application	Automotive Display
Interface Type	LVDS, 50 pins Connector

ZK0781280400B_02 ZK0781280400B_03 ZK0781280400B_04
