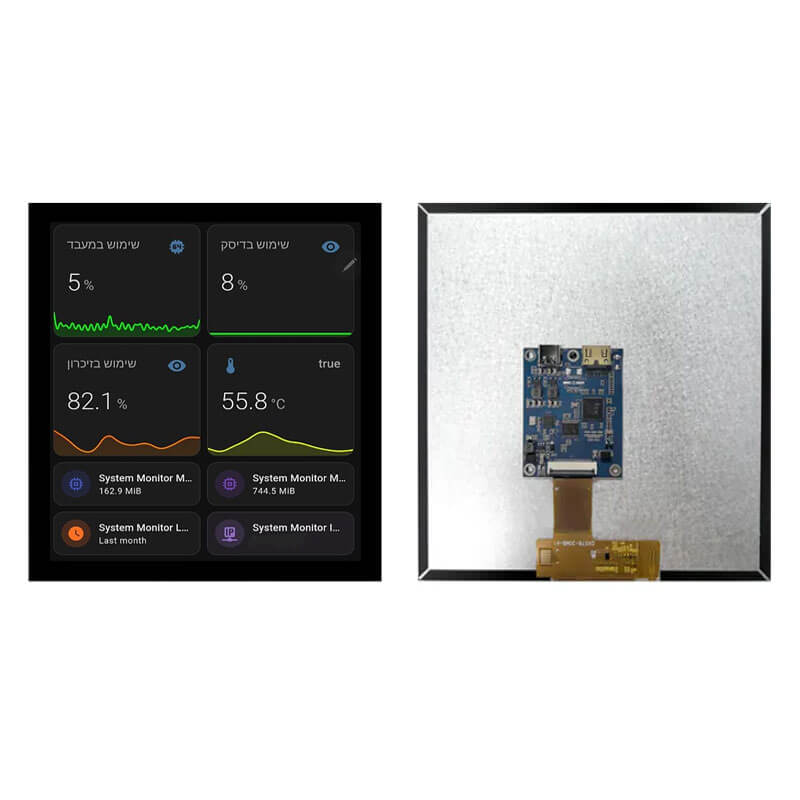

7.6 Inch TFT LCD Display 1200x1200 MIPI HDMI LCD Module With HDMI Driver Board

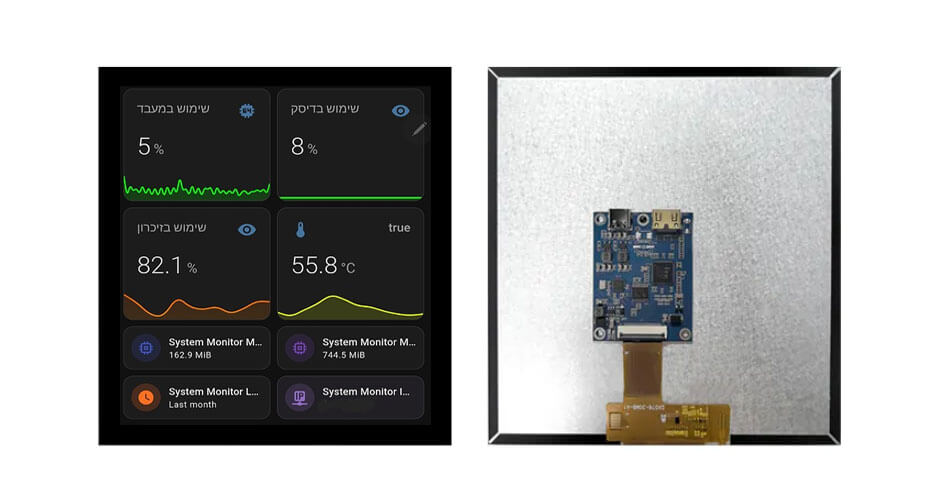

7.6 Inch 1200x1200 Square Display Overview
7.6 Inch TFT LCD Display 1200x1200 MIPI HDMI LCD Module With HDMI Driver Board.

7.6 Inch 1200X1200 Square Display Features
Model：ET076SQ02-V-HDMI
1)  7.6 Inch HDMI TFT Display with 1200×1200 Hardware Resolution.
2) With Capacitive Touch Screen, Support 5-point model control, USB touch, free drive.

HDMI1.4 to Dual-port MIPI DSI/CSI/LVDS with Audio
1) HDMI1.4 Receiver
2) Single/Dual-Port MIPI DSI/CSI Transmitter
3) Single/Dual-Port LVDS Transmitter

7.6 Inch 1200×1200 IPS TFT Display
1) Interface Mode: MIPI
2) Driver IC:
3) Display mode: Normally black
4) Operation Temperature: -20-70℃

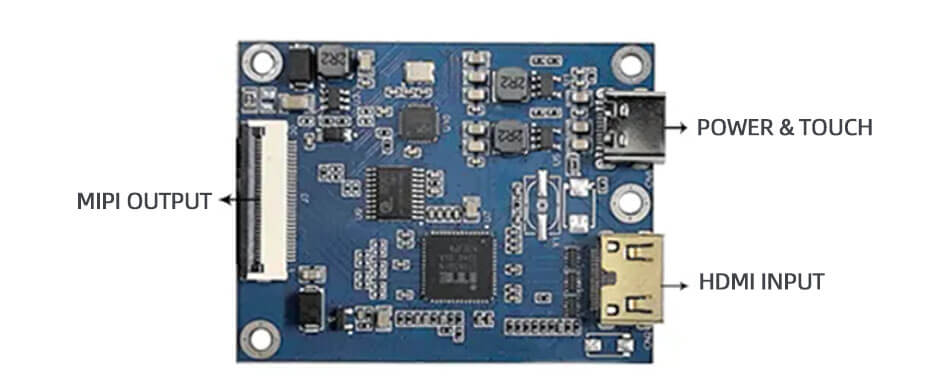

Onboard Resources

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
