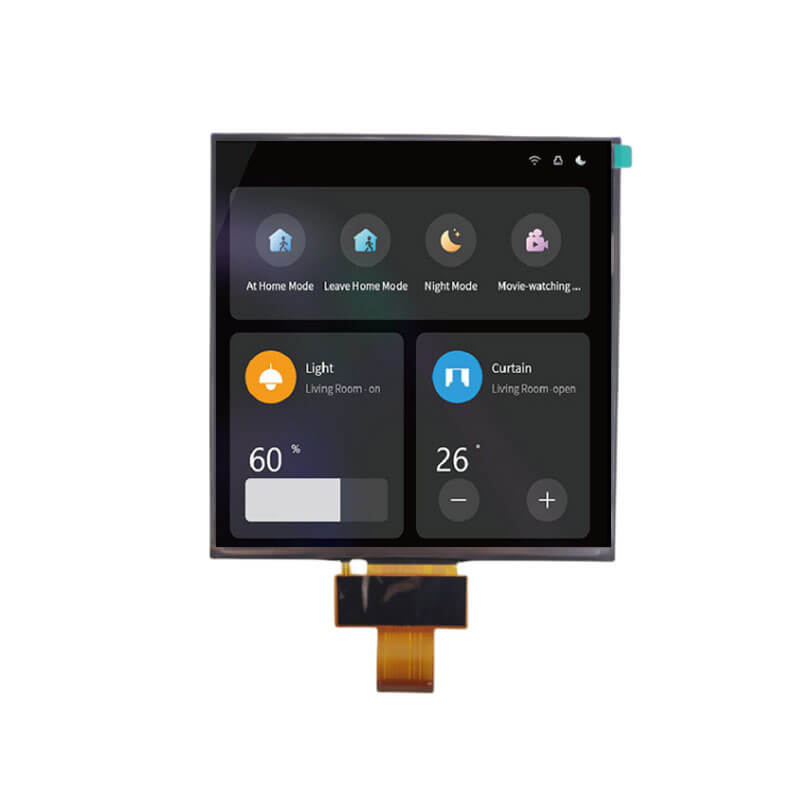

7.5 Inch Square Display Overview

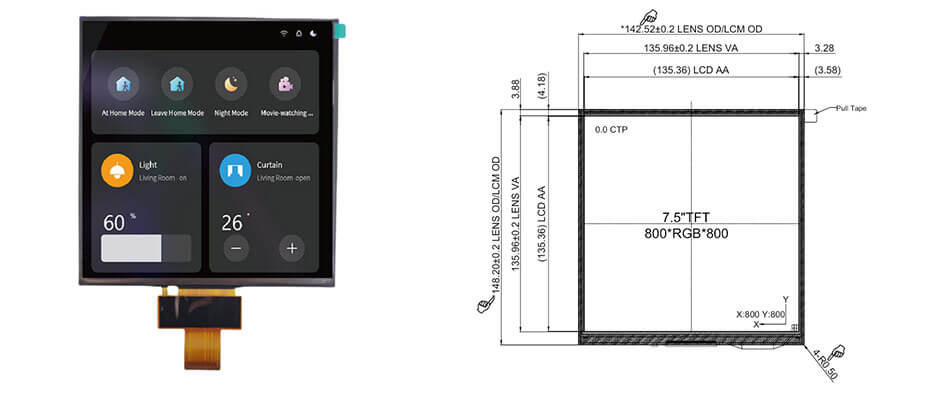

ET075SQ01-KD is a 7.5-inch diagonal square IPS TFT LCD display with a resolution of 800×800, featuring a MIPI interface. The display operates in transmissive mode and has an active area of 135.36(W)×135.36(H) mm, with an outline dimension of 142.52(W)×148.2(H) mm. ET075SQ01-KD provides a typical brightness of 850 cd/m², viewing angles of 80°/80°/80°/80° (L/R/U/D), and supports operation from –20 °C to 70 °C and storage from –30 °C to 80 °C. The display does not include touch functionality.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
