6.9 Inch Stretched Bar Display 280x1424 IPS MIPI 500nits High Brightness TFT LCD Display.

6.9 Inch Stretched Bar Display Overview

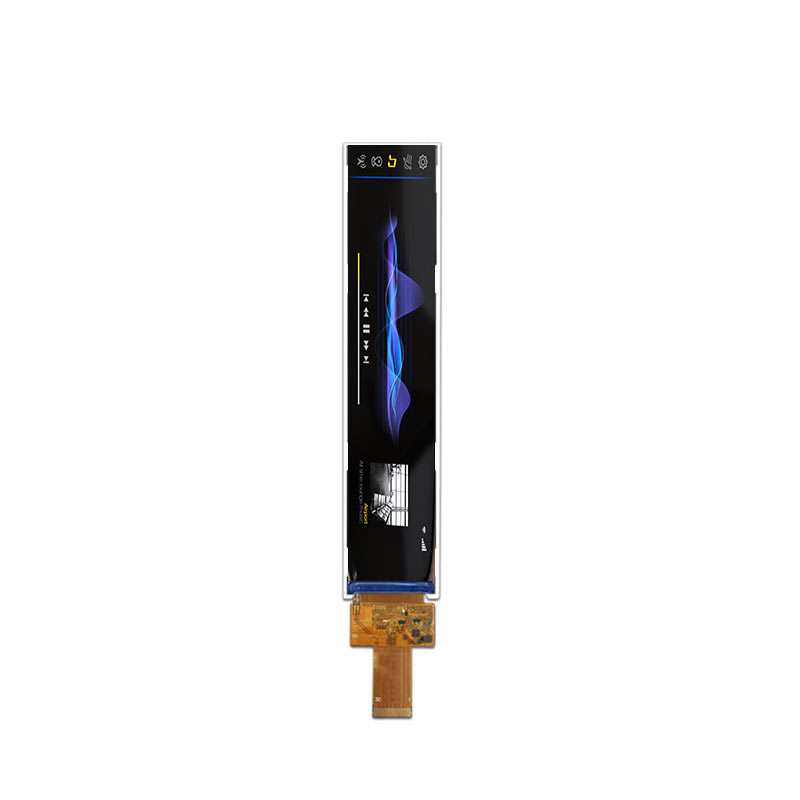

ET070WQ01-T is a 6.9-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 280 × 1424 pixels and uses a MIPI interface for high-speed signal transmission. The display provides an active area of 33.6 (W) × 170.88 (H) mm within an outline dimension of 38.2 (W) × 181.47 (H) mm, making it ideal for tall, vertical-oriented applications. With wide viewing angles of 80° in all directions (L/R/U/D), it delivers stable and consistent image quality. The typical brightness reaches 500 cd/m², ensuring good readability in bright environments. ET070WQ01-T is designed for reliable operation across a broad temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness stretched bar display applications such as industrial control panels, smart devices, and embedded systems.

More 6.9 Inch Bar Displays For Reference
ET070WQ01-T (280×1424, MIPI, IPS, 500nits, -20~70°C, 38.2x181.47mm)
ET070BA01-TT (280×1424, MIPI, IPS, 600nits, -20~70°C, 47.2x195.88mm)
ET070WQ02-T (280×1424, MIPI, IPS, 550nits, -20~70°C, 38.2x181.47mm)
ET070BA20-T-HDMI (280×1424, HDMI, IPS, 500nits, -20~70°C, 38.2x181.47mm)
ET070WQ02-TT (280×1424, TTL, IPS, 450nits, -20~70°C, 38.2x181.47mm)
