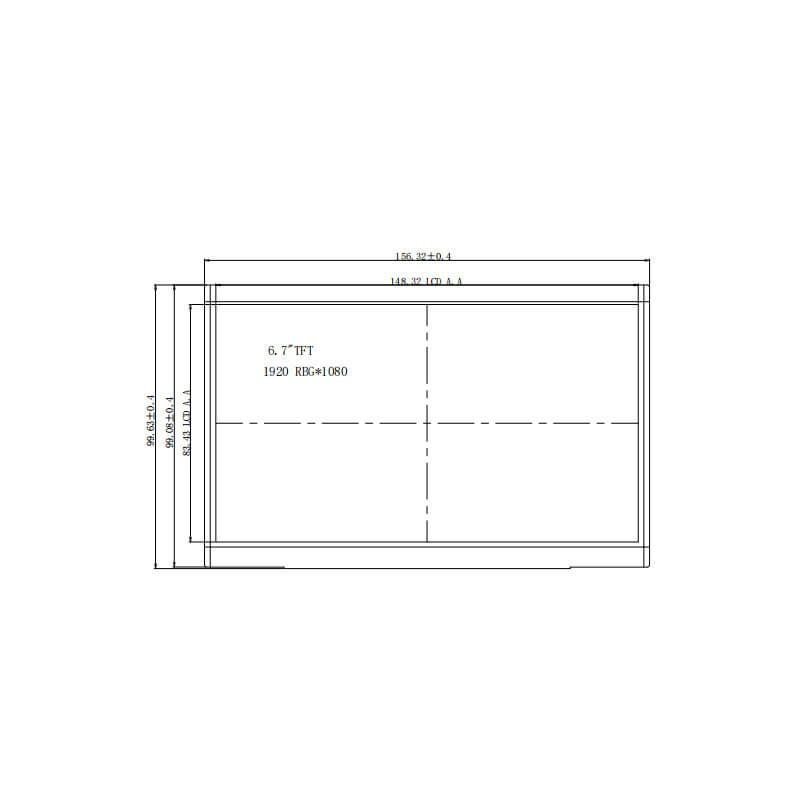

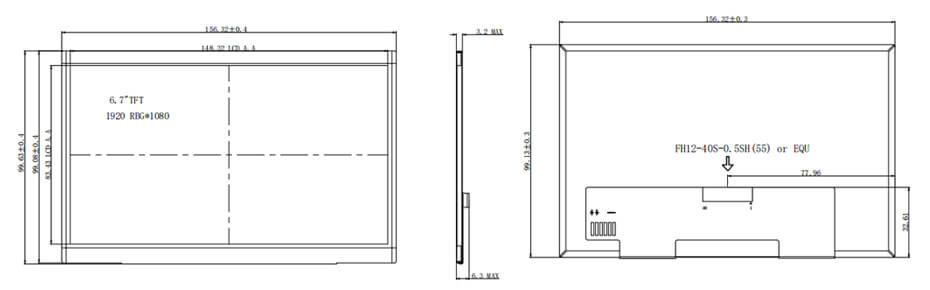

ET067FH01-R is a 6.7-inch diagonal TFT-LCD display module featuring a transmissive display mode. ET067FH01-R supports 1920×1080 (FHD) resolution with an aspect ratio of 16:9 (W), delivering sharp, clear, and vibrant image quality for drone display applications. Equipped with a MIPI interface, it provides efficient signal transmission and reliable performance for compact UAV systems. ET067FH01-R can provide an ultra-high brightness of 2000 cd/m², ensuring excellent readability under direct sunlight and challenging outdoor lighting conditions. It supports an ultra-wide operating and storage temperature range of -30°C to 85°C, making it suitable for demanding environments and extreme weather conditions. Designed without a touch panel, ET067FH01-R is an ideal display solution for drone monitoring systems, UAV control equipment, and other rugged outdoor industrial applications.
ET070WU01-R (1920x1200, MIPI, 1500nits, -20~80°C, 100.02×167.41×2.41mm)
ET070WU01-TT (1920x1200, MIPI, 1300nits, -20~70°C, 105.18×163.34mm)
ET070WX10-TT (800×1280, MIPI, 1100nits, -20~70°C, 108.1×164.2mm, CTP)
ET070HD05-K (1024×600, MIPI, 1700nits, -20~70°C, 165×100mm)
ET070FH01-RT (1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm, In-Cell)
Sunlight Readability
-High brightness levels (typically 1000+ nits) ensure flight data, maps, and video feeds remain visible under direct sunlight.
Enhanced Contrast Ratio
-Delivers sharp image details and improved readability in varying lighting conditions.
High Resolution
-Sharp and detailed image display.
Wide Temperature Operation
-Stable performance in extreme conditions.
Anti-Glare & Anti-Reflective Technology
-Reduces screen reflections and glare for a clearer viewing experience.
Wide Viewing Angles
-Maintains consistent image quality when viewed from different positions during field operations.
Touchscreen Integration
-Responsive and intuitive user interaction.
Fast Response Time
-Supports real-time video transmission and responsive control interfaces for FPV and UAV monitoring.
Accurate Color Reproduction
-Provides true-to-life images for aerial photography, surveillance, and inspection tasks.
Low Power Consumption
-Optimizes battery life for portable drone controllers and ground control stations.
Rugged Reliability
-Resistant to vibration, shock, and harsh environments.
Reliable Outdoor Performance
-Designed to operate consistently in challenging environments, including bright sunlight, temperature fluctuations, and demanding field conditions.
Agricultural Drones
-Crop monitoring, spraying control, and field mapping.
Inspection Drones
-Power line, pipeline, solar panel, and infrastructure inspections.
Surveying & Mapping UAVs
-Land surveying, GIS mapping, and construction monitoring.
Security & Defense Drones
-Surveillance, reconnaissance, and mission control.
Emergency Response Drones
-Search and rescue, firefighting, and disaster assessment.
Logistics & Delivery Drones
-Route monitoring and fleet management.
Aerial Photography & Broadcasting
-Real-time video monitoring and camera control.
Industrial UAV Operations
-Asset management, environmental monitoring, and smart city applications.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
