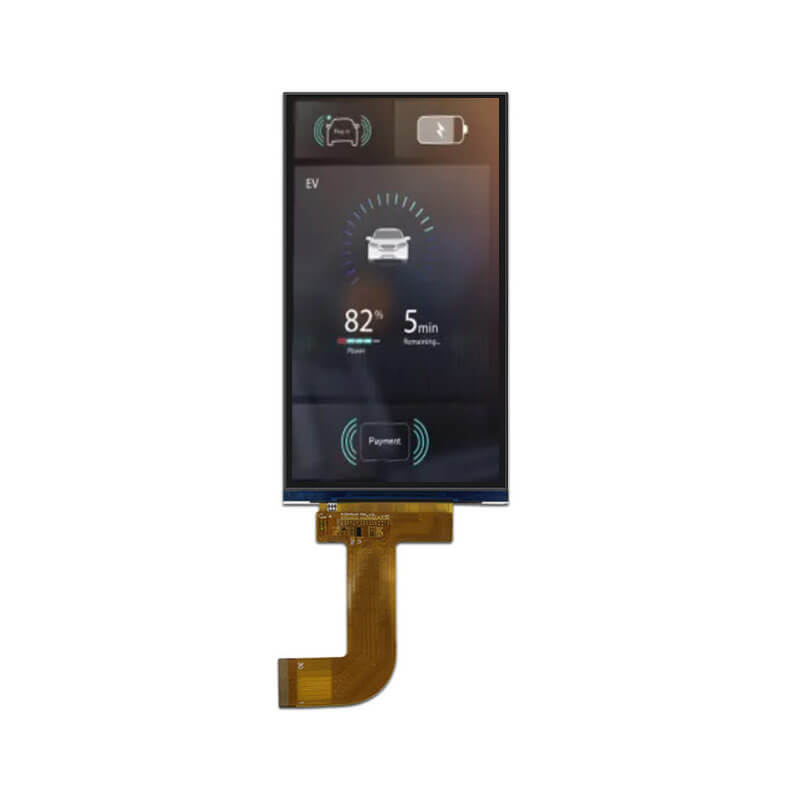

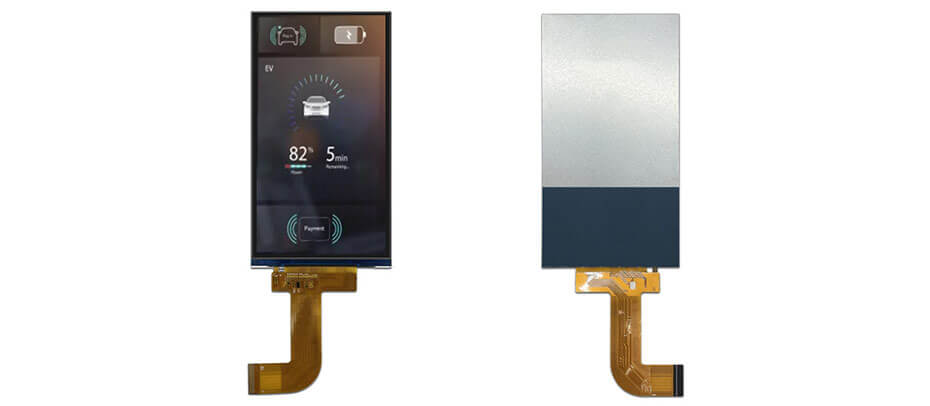

ET055HD11-T is a 5.5-inch TFT-LCD display module designed for EV charger, industrial control, and outdoor smart terminal applications. ET055HD11-T supports a display resolution of 720×1280 (HD) with a portrait aspect ratio, delivering clear and vibrant image performance. It features a transmissive display mode and MIPI interface for high-speed data transmission and reliable system integration. The module provides an active area of 68(W) × 120(H) mm and an outline dimension of 70(W) × 128(H) mm. With an ultra-high brightness of 1000 cd/m², ET055HD11-T ensures excellent readability under direct sunlight and challenging outdoor environments. It offers wide viewing angles of 80° in all directions (L/R/U/D), providing consistent image quality from multiple perspectives. Designed for demanding applications, the display supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, ensuring stable performance in harsh environmental conditions. ET055HD11-T is supplied without a touch panel and is an ideal display solution for EV charging stations, energy management systems, smart kiosks, and industrial HMI devices.
More 5.5 Inch EV Charger Display For Reference

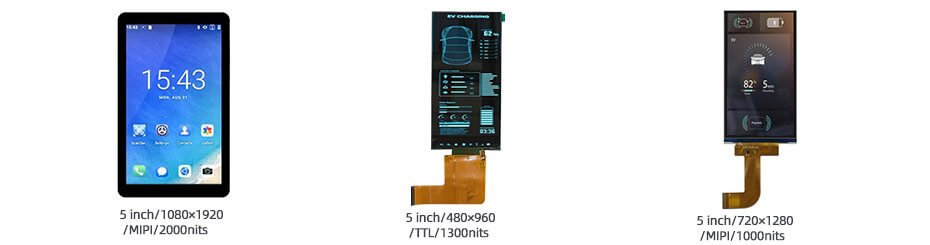

ET055WU06-TT (1080×1920, MIPI, 2000nits, -20~70°C, 83.7×141.2mm)
ET055FW01-R (480×960, TTL, 1300nits, -20~70°C, 68×134mm)
ET055HD11-T (720×1280, MIPI, 1000nits, -20~70°C, 70.34×128.1mm)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
