5.1"-7" LCD Display (6.5")

6.5 Inch High Brightness Display 700nits IPS 800x480 TTL Wide Temperature TFT LCD Display

Part No.:ET065WV01-ZK
Size:6.5″ inch
Resolution:800x480
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:155.2x89.4mm
Active Area:143.4x76.7mm
Viewing Angle L/R/U/D:70/70/50/70
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

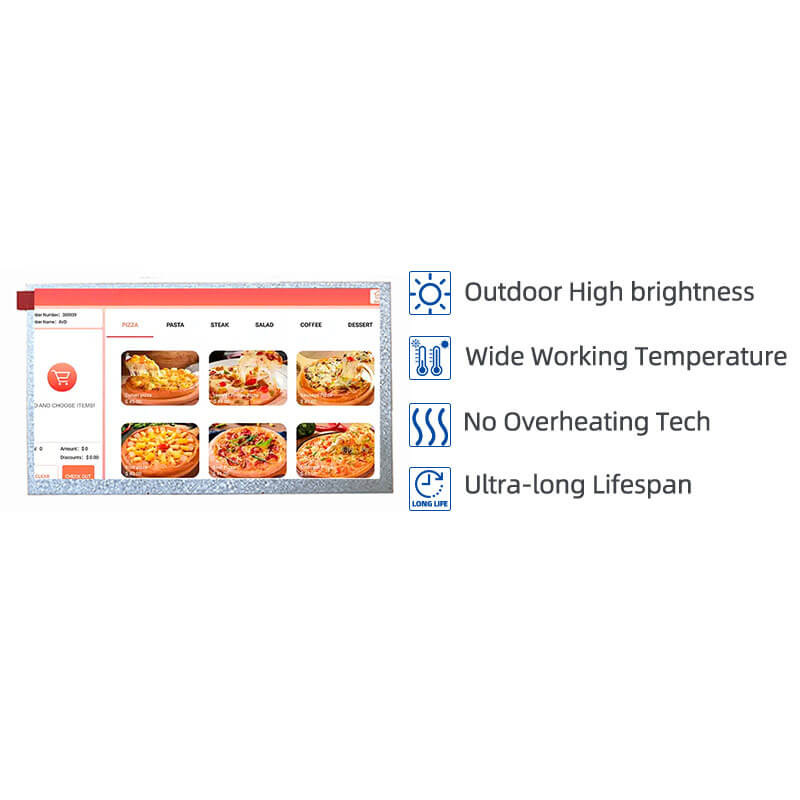

6.5 Inch High Brightness LCD Display Overview
6.5 Inch High Brightness Display 700nits IPS 800x480 TTL Wide Temperature TFT LCD Display.

More 6.5 Inch High Brightness LCD Display For Reference

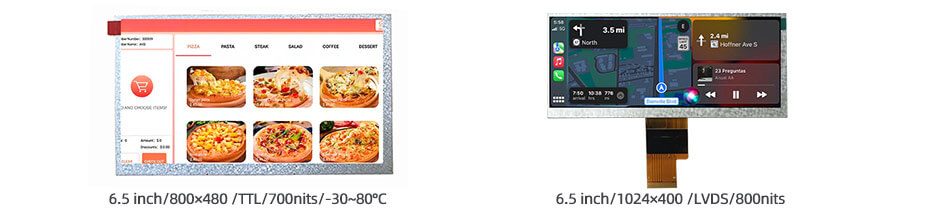

ET065WV01-ZK (800x480, TTL, 700nits, -30~80°C, 155.2x89.4mm)
ET065BA01-S (1024x600, LVDS, 800nits, -20~70°C, 165x72.86mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
