5.1"-7" LCD Display (6.2")

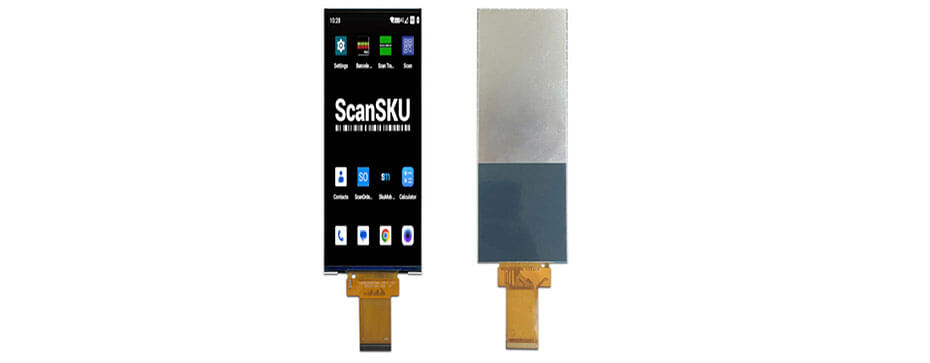

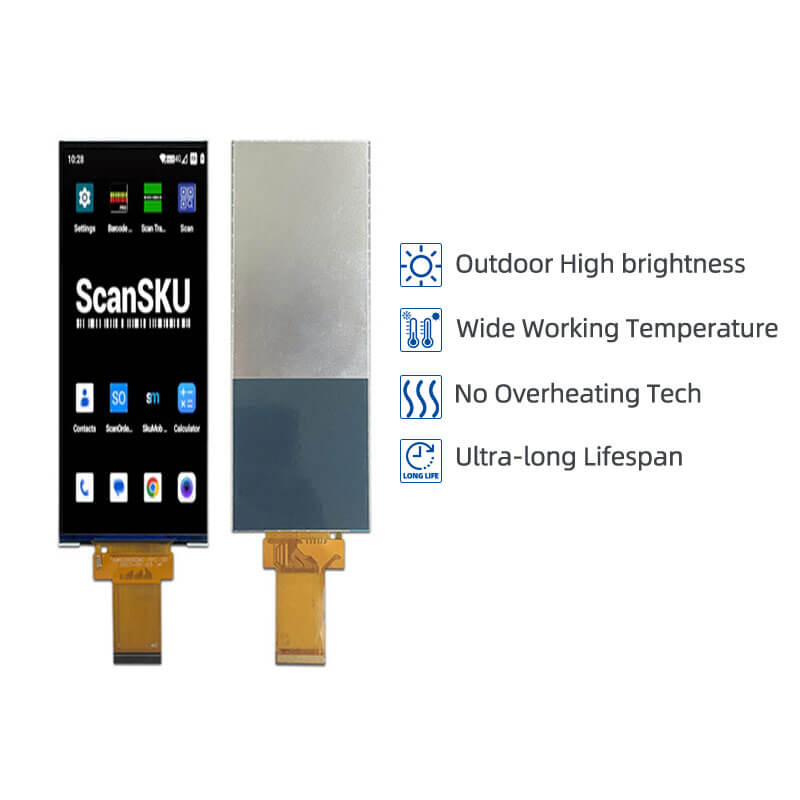

6.2 Inch High Brightness Display 700nits IPS 360x960 TTL TFT LCD Display

Part No.:ET062NH02-T
Size:6.2″ inch
Resolution:360x960
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:58.1x154.9mm
Active Area:55.3x147.46mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

6.2 Inch High Brightness LCD Display Overview
6.2 Inch High Brightness Display 700nits IPS 360x960 TTL TFT LCD Display.

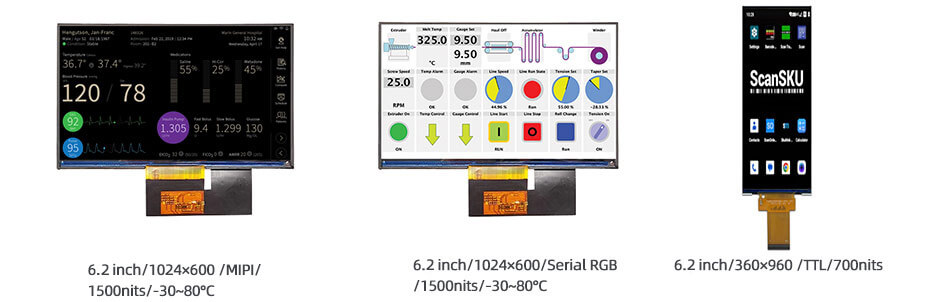

More 6.2 Inch High Brightness LCD Display For Reference
ET062WS01-F (1024x600, MIPI, 1500nits, -30~80°C, 144.33x88.16mm)
ET062WS02-F (1024x600, Serial RGB, 1500nits, -30~80°C, 144.33x88.16mm)
ET062NH02-T (360x960, TTL, 700nits, -20~70°C, 58.1x154.9mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
