6"-15.6" Touch Screen (6.5")

6.5 Inch Capacitive Touch Screen G+G Touch Display For Vehicle-mounted Military Industry Medical Industry

Part No.:ET065CTP02
Size:6.5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:144.58x114.36mm
Active Area:133.08x99.96mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

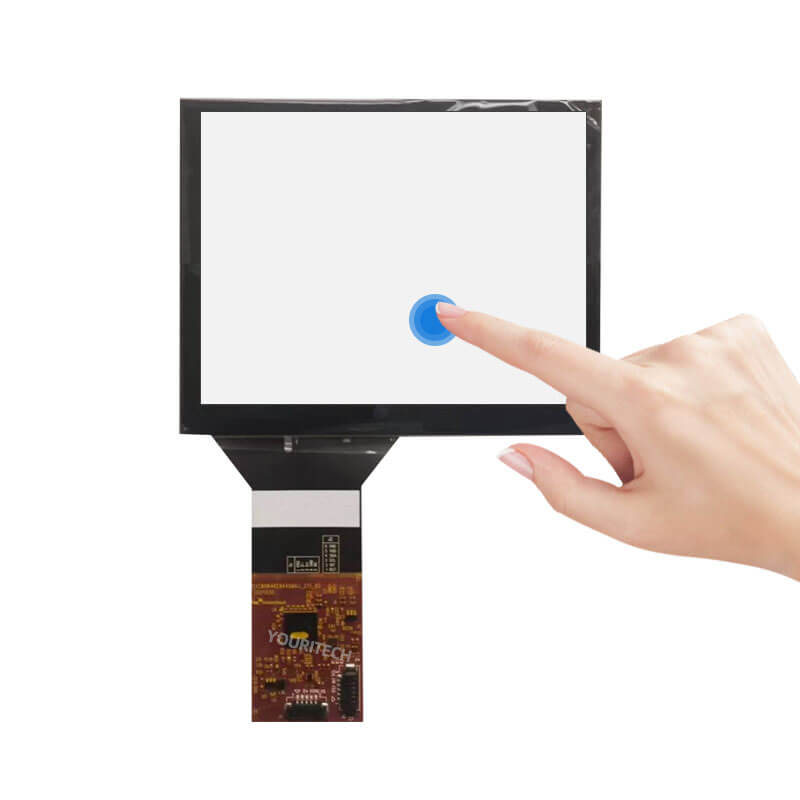

6.5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 133.08x99.96 mm
Outline Dim.: 144.58x114.36 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

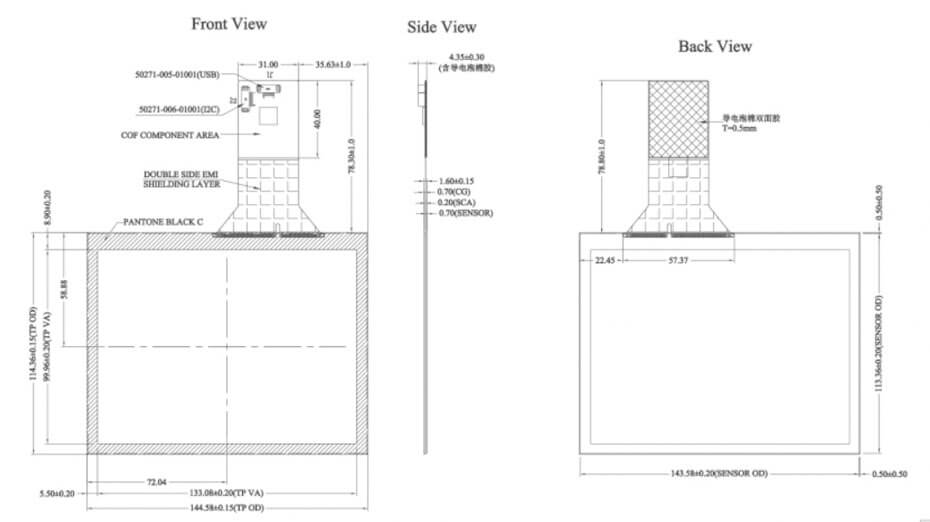

6.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
