6.2 Inch TFT LCD Display 1024×600 TTL High Brightness 750nits Wide Temperature LCD Display For Automotive

6.2 Inch Automotive Display Overview

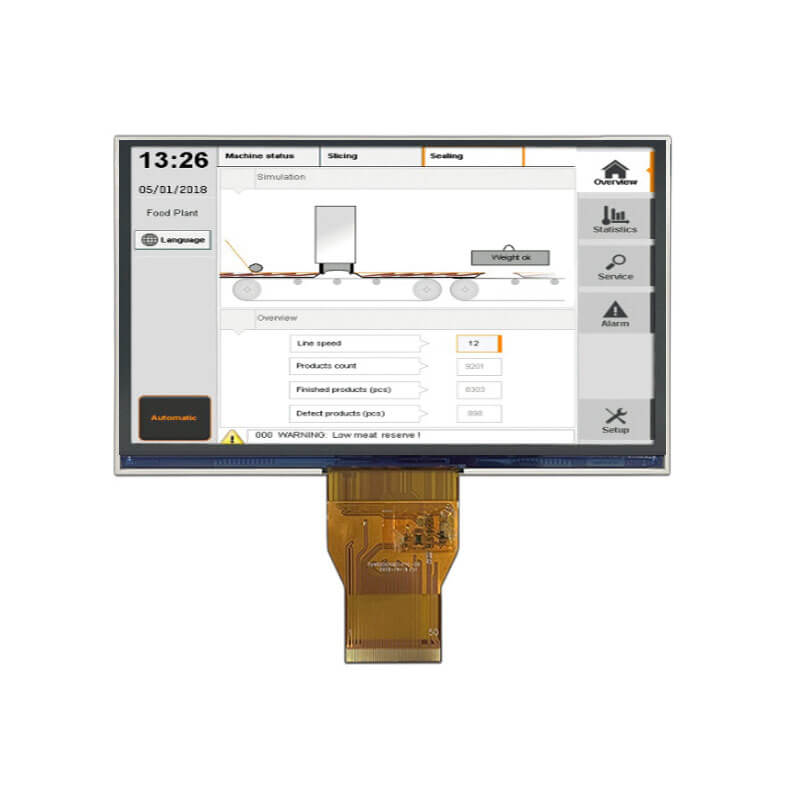

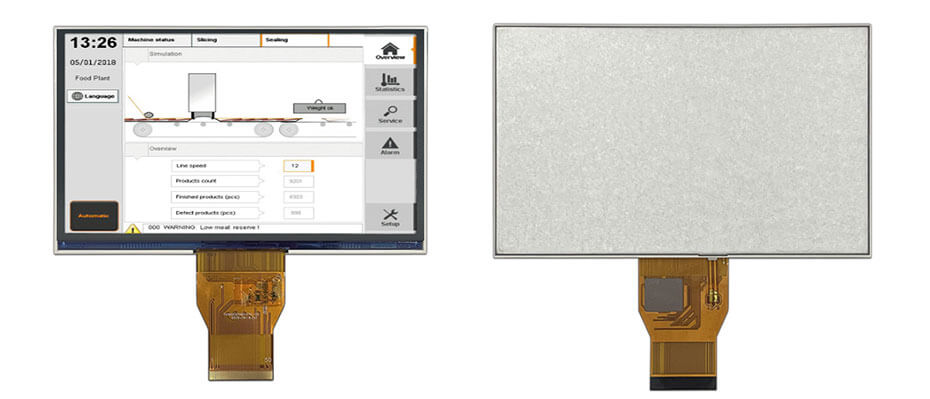

ET062WS01-T is a 6.2-inch TFT LCD display screen product designed for automotive applications, it supports display resolution 1024×600 (WSVGA) with aspect ratio of 16:9 (W:H), and uses a TTL interface. It features a transmissive display mode with IPS wide viewing angle (L/R/U/D), providing excellent viewing performance from all directions. The ET062WS01-T has an outline dimension of 144.27(W)×88.1(H) mm, and offers high brightness up to 750 cd/m², making it suitable for high ambient light environments. It supports a wide operating and storage temperature range of -30°C to 80°C, ensuring stable performance in harsh automotive conditions. This model does not include touch functionality.

More 6.2 Inch Automotive Display For Reference
HSD062IDW1-A02 (800×480, TTL, IPS, 400nits, -20~70°C, 155.2×88.2mm)
ET062NH02-T (360×960, TTL, IPS, 800nits, -20~70°C, 58.1×154.9mm)
ET062NH02-TT (360×960, MIPI, IPS, 500nits, -20~70°C, 68×165mm)
ET062WS01-T (1024×600, TTL, IPS, 750nits, -30~80°C, 144.27×88.1mm)
