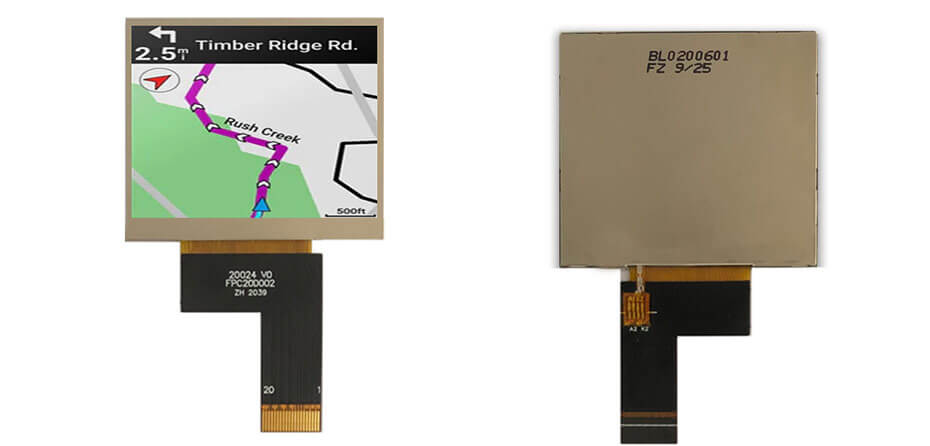

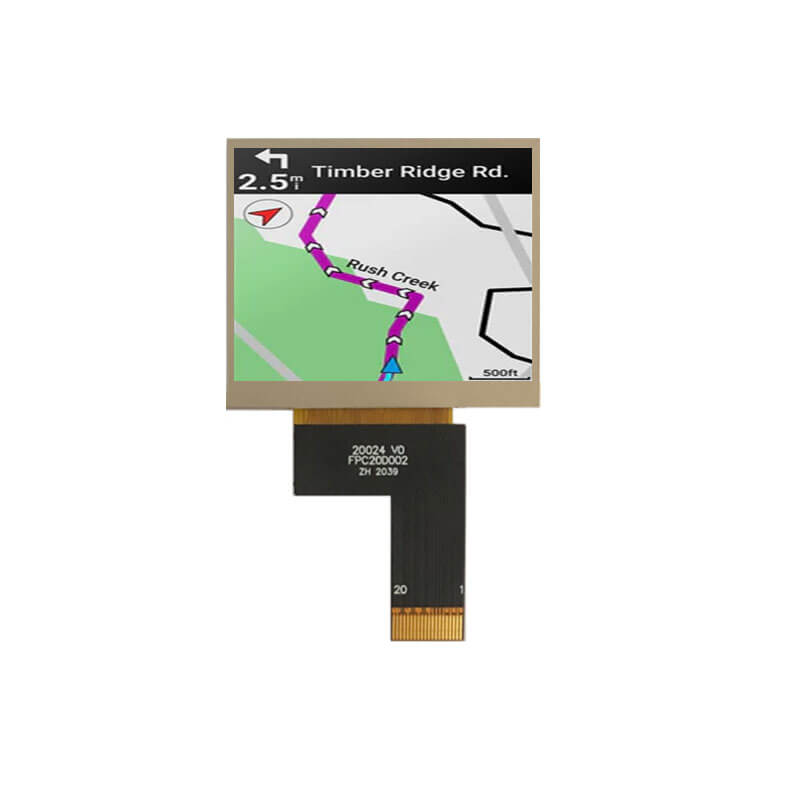

ET020WQ30-K is a 2.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 480×360 with a 4:3 aspect ratio (W:H), delivering clear and balanced image performance. This module adopts a MIPI interface for efficient data transmission. It offers an active area of 40.824 (W) × 30.618 (H) mm and an outline dimension of 46.5 (W) × 41.56 (H) mm. With a high brightness of 900 cd/m², it ensures excellent visibility even under strong ambient light, making it suitable for outdoor applications such as cycling computer and bike displays. The display provides wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring consistent image quality from different directions. It operates reliably within a wide temperature range of -30°C to 85°C (storage: -30°C to 85°C), and does not include a touch panel.
More 2 Inch Cycling Computer Bike Display For Reference
ET020WQ30-K (480×360, MIPI, LCM, 900nits, -30~85°C, 46.5×41.56mm)
ET020VG01-R (480×640, TTL, LCM, 700nits, -20~70°C, 34.6×47.8mm)
ET020AM02-HT (368×448, MIPI, OLED, 800nits, -20~70°C, 34.64×42.89mm)
ET020AM03-HT (410×502, MIPI, OLED, 800nits, -20~70°C, 33.07×41.05mm)
ET020QV01-K (240×320, CPU/RGB/SPI , LCM, 200nits, -20~70°C, 35.8×52.1mm)
ET020HV02-R (320×240, TTL , LCM, 190nits, -20~70°C, 46×41.3mm)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
