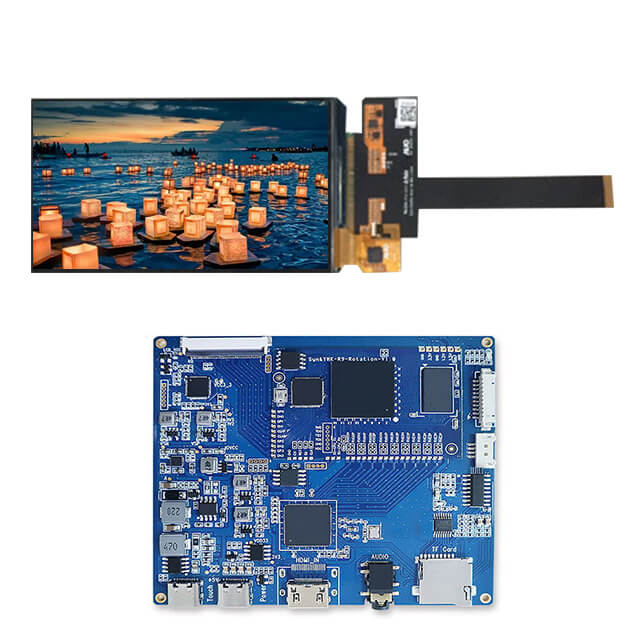

5 inch OLED LCD screen display 720x1280 AMOLED LCD display panel HDMI to MIPI DSI board and HD-MI to MIPI Driver board

LCD SPECIFICATION

Diagonal Size

5.0 inch

Type

AM-OLED , OLED

Pixel Format

720(RGB)×1280   [WXGA]

Configuration

RGB Vertical Stripe

Display Area

61.92(W)×110.08(H) mm

Outline Dim.

-

Outline Size

65.92(W)×118.64(H) ×1.15(D) mm

Surface

-

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Min.) (TM)

View Direction

Symmetry

Display Mode

-

Viewing Angle

80/80/80/80 (Min.)(CR≥1600)

Response Time

1.0 (Max.)

Support Color

16.7M   100% NTSC

Lamp Type

self

Panel Weight

TBD

Designed For

Mobile phone

Frame Rate

60Hz

Touch Panel

On-Cell Touch

Driver IC

Built-in RM69052

Interface Type

MIPI (4 data lanes) , 39 pins FPC

Power Supply

1.8/3.1/3.7V (Typ.)(VDDI/VCI/VBAT)

Environment

Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
