5.5 Inch 1080x1920 Display Overview

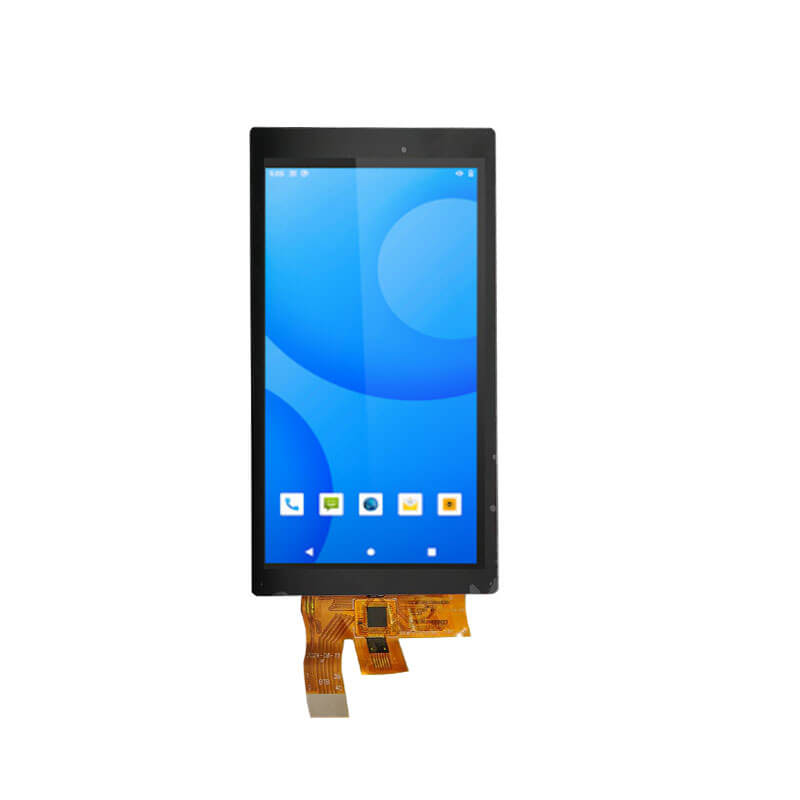

The ET055WU02-TT is a 5.5-inch TFT LCD display designed for high-resolution applications. It features a resolution of 1080x1920, providing sharp and vibrant visuals. The display has an active area of 68.04mm x 120.96mm and compact outline dimensions of 70.04mm x 128.29mm x 1.78mm, making it suitable for a variety of devices with limited space. It operates with a 4-lane MIPI interface, enabling high-speed data transmission for efficient performance. The display mode is normally black, offering excellent contrast and color representation. With wide viewing angles in all directions (ALL O'CLOCK), it ensures consistent visibility from different viewing positions. The ET055WU02-TT is equipped with touch functionality, providing an intuitive user experience. Its operating and storage temperature ranges are not specified, but it is designed to operate efficiently across typical industrial and commercial environments.
Medium Size Display List For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness | CTP/RTP |
| 5 | 800x480 | ST7262 | 120.7x75.9x2.95 | 108x64.8 | RGB 24 BIT | 600 | CTP |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | RGB 24 BIT | 400 | / | |
| 800x480 | ST7262 | 120.7x75.9x3.0 | 108x64.8 | RGB 24 BIT | 1500 | / | |
| 720x1280 | ST7703 | 65.3x119.28x1.64 | 62.1x110.4 | MIPI 4 LANE | 350 | CTP | |
| 480x854 | ST7701S | 65.3x119.3x2.05 | 61.56x109.53 | MIPI 2 LANE | 350 | / | |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | MIPI 2 LANE | 1000 | / | |
| 720x1280 | NV3051FL | 65.4x119.3x1.59 | 61.56x109.53 | LVDS | 400 | / | |
| 1080x1920 | HX8399C | 64.76x118.7x1.5 | 61.88x110.02 | MIPI 4 LANE | 800 | / | |
| 720x1280 | NV3052C | 65.4x119.3x1.99 | 61.56x109.53 | RGB 24 BIT | 300 | / | |
| 5.2 | 1080x1920 | HX8399C | 67x122.6x1.7 | 64.8x115.2 | MIPI 4 LANE | 1200 | CTP |
| 5.5 | 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 1200 | CTP |
| 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 500 | CTP | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 300 | / | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 1000 | / | |
| 6 | 720x1280 | RM68200 | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 500 | / |
| 720x1280 | ILI9881C | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 450 | CTP | |
| 1080x1920 | FT8275 | / | 74.52x132.48 | MIPI | 400 | / | |
| 7 | 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB 24 BIT | 800 | / |
| 720x1280 | ILI9881C | 91.44x165.91x2.35 | 86.94x154.56 | MIPI 4 LANE | 350 | / | |
| 1024x600 | HX8282A11 | 164.9x100x3.5 | 154.08x85.92 | LVDS 8 BIT | 1300 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 550 | / | |
| 600x1024 | JD9365DA | 94.85x163.14x2.73 | 89.28x184.8 | MIPI 4 LANE | 350 | CTP | |
| 600x1024 | JD9365DA | 94.85x161.29x2.53 | 89.28x184.8 | MIPI 2 LANE | 800 | CTP | |
| 800x480 | HX8264-E | 164.9x100x5.5 | 154.08x85.92 | TTL | 450 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 1100 | CTP | |
| 1024x600 | EK79007AD2 | 164.9x100x3.45 | 154.08x85.92 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB | 1000 | CG | |
| 1200x1920 | HX8279 | 105.18x163.34x3.65 | 94.5x151.2 | MIPI 4 LANE | 1600 | / | |
| 8 | 1024x768 | / | 183x141x5.5 | 162.5x121.54 | LVDS | 1000 | / |
| 800x1280 | JD9365DA | 114.66x184.24x2.41 | 107.64x172.22 | MIPI 4 LANE | 450 | CTP | |
| 800x1280 | NV3052C | 114.66x184.24x2.41 | 107.64x172.22 | LVDS | 350 | CTP | |
| 1024x600 | HX8282 | 192.8x116.9x6.45 | 176.64x99.36 | LVDS | 450 | / | |
| 1024x768 | / | 174x136x2.5 | 162.5x121.54 | LVDS | 300 | / | |
| 1200x1920 | / | / | 176.64x99.36 | MIPI | / | / | |
| 1920x1200 | / | / | 172.22x107.64 | LVDS | / | / | |
| 9 | 1024x600 | HX8282A11 | 210.7x126.5x5 | 196.61x114.15 | LVDS 8 BIT | 450 | / |
| 9.7 | 1024x768 | / | 210.21x164.25x2.85 | 196.6x147.46 | LVDS | 1000 | / |
| 10.1 | 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 350 | / |
| 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 235x143x4.5 | 222.72x125.28 | LVDS | 450 | / | |
| 1200x1920 | HX8279 | 143x228.6x2.56 | 135.36x216.58 | MIPI 4 LANE | 300 | / | |
| 1280x800 | EK79202 | 229.46x149.1x2.6 | 216.96x135.6 | LVDS | 350 | / | |
| 1280x800 | EK79202 | 229.46x149.1x4.4 | 216.96x135.6 | LVDS | 1000 | / | |
| 800x1280 | NV3051F1 | 143x228.6x2.8 | 135.36x216.58 | LVDS 8 BIT | 400 | CTP | |
| 1920x1200 | / | 229.25x149.8x4.25 | / | LVDS | 1000 | / | |
| 1024x600 | / | 235x143x4.5 | / | RGB | 700 | / | |
| Touch Screens are Available and Optional | |||||||
5.5 Inch 1080x1920 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
5.5 Inch 1080x1920 Display Touch screen,standard type and customization
5.5 Inch 1080x1920 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
5.5 Inch 1080x1920 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
