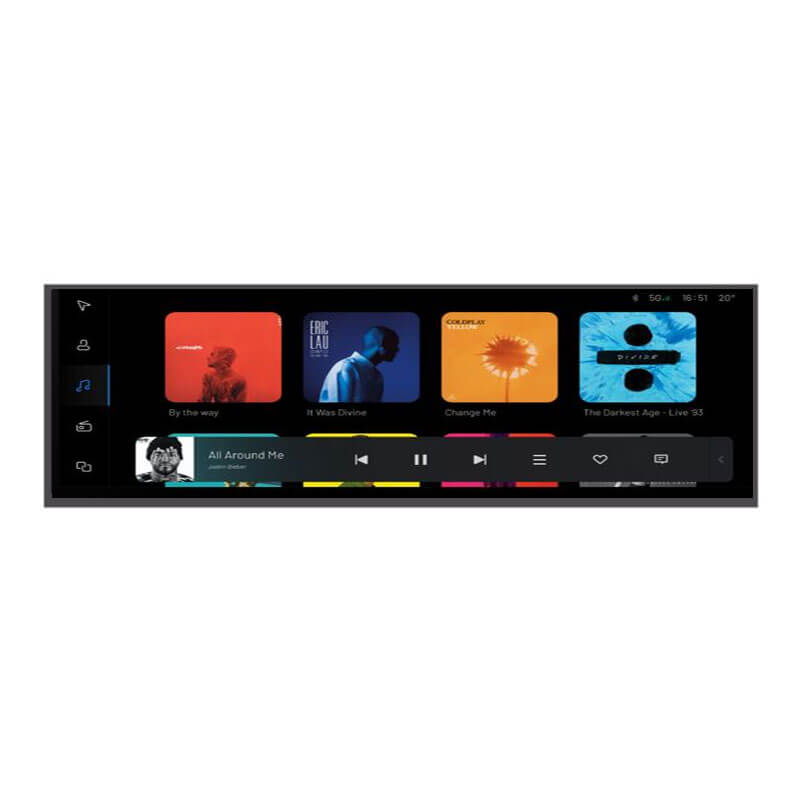

14.1 Inch 1920x550 Bar Display Overview
The NV140DQM-N53 from BOE is a 14.1-inch stretched bar display designed to deliver high brightness and vibrant visuals. With a resolution of 1920x550, it offers exceptional clarity, especially in applications requiring wide, narrow-format displays. The display features an active area of 344.218mm x 98.604mm and an outline dimension of 350.52mm x 109.5mm, making it suitable for various industrial and commercial uses. It boasts a high brightness of 600 cd/m², ensuring excellent visibility even in bright environments. The panel uses an eDP (2 Lanes) interface, ensuring high data transfer rates and efficient integration. The display operates in transmissive mode, providing clear, vivid images. The viewing angles are 85° in all directions (L/R/U/D), ensuring optimal visibility from multiple perspectives. The NV140DQM-N53 operates within a temperature range of 0°C to 60°C for operation and -20°C to 65°C for storage, making it reliable for use in various environments. This display does not include touch functionality.
More Bar Displays For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness |
| 0.96 | 80x160 | ST7735S | 13.5x27.95x1.5 | 10.80x21.70 | SPI | 500 |
| 80x160 | ST7735S | 13.5x27.95x2.15 | 10.80x21.70 | SPI | 1800 | |
| 1.14 | 135x240 | ST7789V | 17.56x31.07x1.6 | 14.86x24.91 | SPI4 | 500 |
| 1.9 | 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | SPI4 | 500 |
| 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | MCU8Bit/SPI Line | 1000 | |
| 2.86 | 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | MIPI | 600 |
| 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | RGB 24 BIT | 400 | |
| 2.99 | 268x800 | ST7701S | 26.12x78.75x1.65 | 24.12x72 | RGB 24 BIT | 400 |
| 3.5 | 340x800 | ST7701S | 37.27x89x1.6 | 33.97x81 | RGB | 400 |
| 3.71 | 240x960 | ST7701S | 25.3x98.89x1.61 | 22.86x91.44 | RGB 24 BIT | 400 |
| 3.9 | 480x128 | / | / | / | TTL | / |
| 3.99 | 480x960 | ST7701S | 42.9x102.08x2.19 | 39.18x94.03 | SPI3+RGB 18 BIT | 800 |
| 4.58 | 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 450 |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 1000 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 400 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | MIPI 2 LANE | 400 | |
| 5.8 | 800x320 | / | / | / | TTL | / |
| 6.2 | 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | MIPI 2 LANE | 400 |
| 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | RGB 24 BIT | 700 | |
| 6.5 | 1024x400 | / | / | / | TTL | / |
| 6.86 | 480x1280 | NV3051F1 | 66.6x181x4.5 | 60.22x160.58 | LVDS 8 BIT | 600 |
| 480x1280 | ICNL9707 | 72.42x173.79x6.5 | 60.22x160.58 | MIPI 4 LANE | 1000 | |
| 480x1280 | NV3052C | 66.6x181x4.5 | 60.22x160.58 | RGB 24 BIT | 600 | |
| 6.9 | 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 |
| 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 | |
| 280x1424 | NV3052C | 38.2x181.47x3.45 | 33.6x170.88 | RGB | 500 | |
| 7 | 280x1424 | OTA7290N | 38.2x181.47x3.4 | 33.60x170.88 | MIPI | 650 |
| 280x1424 | HDMI | 38.20x181.47x9.58 | 33.60x170.88 | HDMI | 700 | |
| 7.84 | 480x1280 | NV3051FL | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 900 |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | LVDS 8 BIT | 900 | |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 1200 | |
| 8 | 1600x480 | / | 249.2x87x6.86 | 194.4x58.32 | LVDS | 440 |
| 8.8 | 480x1920 | OTA7290B | 64.3x231.3x4.8 | 54.72x218.88 | MIPI 4 LANE | 500 |
| 1280x480 | HX82102A | 229.5×97.20×3.5 | 209.28x78.48 | LVDS 6/8 BIT | 500 | |
| 9.35 | 320x1280 | ICNL9707 | 64.48x246.15x4.5 | 58.08x232.7 | MIPI 4 LANE | 1000 |
| 9.9 | 720x1600 | ST7703I | 115.36x251.06x4.70 | 106.92x237.60 | MIPI 4 LANE | 1000 |
| 10.1 | 440x1920 | / | 64.98x266.44x4.6 | 57.95x252.86 | MIPI | 750 |
| 10.25 | 1920x480 | / | 258.90x111.1x7.55 | 243.648x91.368 | LVDS 8 BIT | 1000 |
| 10.4 | 1024x100 | HX8282 | 288.92x41.5x7.12 | 264.192x25.8 | RGB | 450 |
| 11.3 | 440x1920 | ICNL9707 | 64.98x266.39 | 57.9x252.69x4.6 | MIPI 4 LANE | 600 |
| 12.3 | 1920x720 | / | 305.92×123.62 | 292.32×109.62 | LVDS | 1400 |
| 12.6 | 1920×515 | / | 315.61×94.02 | 309.312×82.9665 | eDP | 400 |
| 12.7 | 2880×864 | / | 313.54×101.33 | 308.448×92.534 | eDP | 500 |
| 14.1 | 3840×1100 | / | 350.52× 118.65 | 344.218× 98.604 | eDP | 300 |
| 14.5 | 2560×720 | / | 362.42× 112.41 | 354.816× 99.792 | / | 900 |
| 2560x720 | / | 363.5x133.5x8 | 354.816x99.792 | LVDS | 650 | |
| 19.1 | 1920×360 | / | 491.5×109.4 | 476.64×89.37 | LVDS | 300 |
| 20.3 | 3840×720 | / | 555.01×126.98 | 506.88×95.04 | LVDS | 750 |
| 21 | 1920×132 | / | 542.4× 54.7 | 529.416× 36.3974 | LVDS | 300 |
| 1920x184 | / | 592x75x12.3 | 527.04x50.6 | LVDS | 500 | |
| 23.1 | 1920×158 | / | 597.2×61.8 | 585.216×48.1584 | LVDS | 700 |
| 24 | 1920×360 | / | 612.7× 132.1 | 597.888× 112.104 | LVDS | 300 |
| 28 | 1920×360 | / | 732×165×17.3 | 699.84×131.22 | LVDS | 700 |
| 1920x360 | / | 729.3x167.3x19.2 | 698.4x130.95 | LVDS | 700 | |
| 28.6 | 1920×540 | / | 722.2×220.23 | 698.4×196.425 | LVDS | 700 |
| 29 | 1920×540 | / | 720.8×226.25 | 705.6×198.45 | LVDS | 700 |
| 29.4 | 1920×720 | / | 698.4×261.9 | 722.2×285.7 | LVDS | 700 |
| 35 | 3840×200 | / | 891.6×60.4 | 877.824×45.72 | V-by-One 8 lane | 500 |
| 36.6 | 1920x290 | / | 960× 174.35 | 919.3× 138.85 | LVDS | 700 |
| 37 | 1920×540 | / | 914.9×280.9 | 899.712×253.044 | LVDS | 700 |
| 37.6 | 1920×540 | / | 972.4 ×299.8 | 919.296× 258.552 | LVDS | 1000 |
| 42 | 1920×480 | / | 1067.48× 287.72 | 1039.68× 259.92 | LVDS | 2500 |
| 43 | 3840×720 | / | 1076.3×204.5 | 1073.66×201.312 | V-by-One 8 lane | 1000 |
| 47 | 3840×160 | / | 1209×62.9 | 1196.16×49.84 | V-by-One 8 lane | 500 |
| 48 | 3840×720 | / | 1217.85×248.18 | 1194.05×223.884 | V-by-One 8 lane | 1000 |
| 49 | 5120×1440 | / | 1209.9×360.45 | 1198.08×336.96 | eDP | 350 |
| 49.5 | 1920×540 | / | 1232.4×363 | 1209.6×340.2 | LVDS | 1500 |
| Touch Screen and Demo Board are Available and Optional | ||||||
14.1 Inch 1920x550 Bar Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
14.1 Inch 1920x550 Bar Display Touch screen,standard type and customization
14.1 Inch 1920x550 Bar Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
14.1 Inch 1920x550 Bar Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
