0.48"-5" LCD Display (4")

4 Inch High Brightness Display 1000nits 480x800 MIPI IPS TFT LCD Display

  • Part No.:ET040WV01-EX
  • Size:4″ inch
  • Resolution:480x800
  • Panel Interface:MIPI
  • Display mode:Transmissive

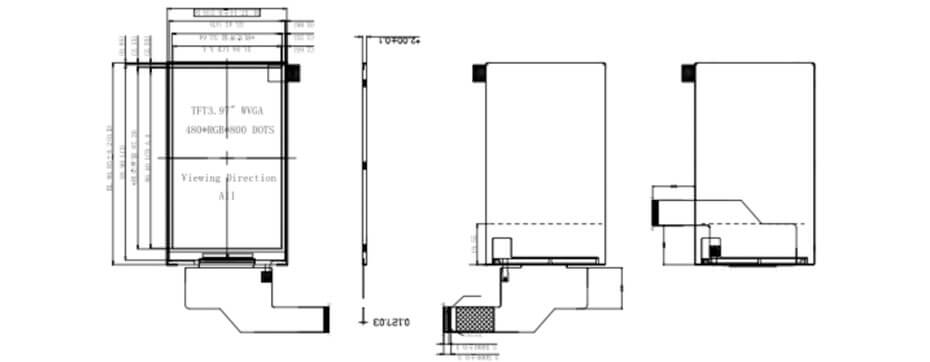

  • Outline Dimension:57.14x97.3mm
  • Active Area:51.84x86.4mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):1000(Typ.)
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:no

4 Inch High Brightness LCD Display Overview
4 Inch High Brightness Display 1000nits 480x800 MIPI IPS TFT LCD Display.

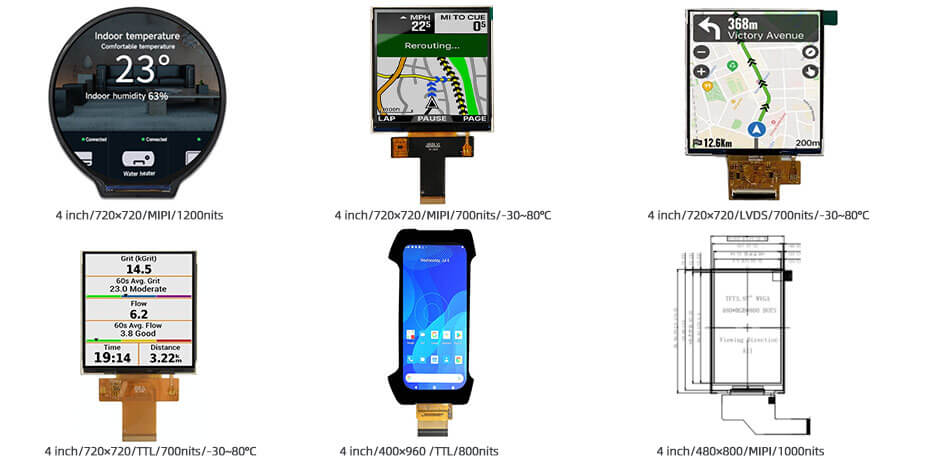

More 4 Inch High Brightness LCD Display For Reference
ET040HD30-T (720X720, MIPI, 1200nits, -20~70°C, 110x117.14mm)
ET040HD30-T (720X720, MIPI, 700nits, -30~80°C, 77x80mm)
ET040HD22-K (720X720, LVDS, 700nits, -30~80°C, 77x80mm)
ET040HD21-K (720X720, TTL, 700nits, -30~80°C, 77x80mm)
ET040FW01-T (400x960, TTL, 800nits, -20~60°C, 42.9x95.7mm)
ET040WV01-EX (480x800, MIPI, 1000nits, -10~60°C, 57.14x97.3mm)


Outdoor High Brightness Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.


Production and Manufacturing

X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
