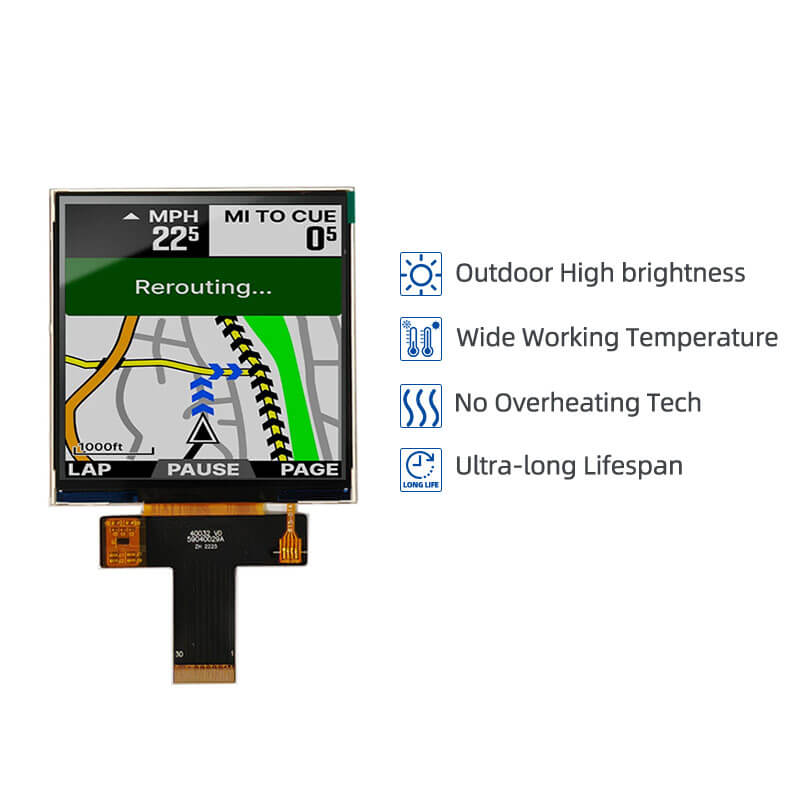

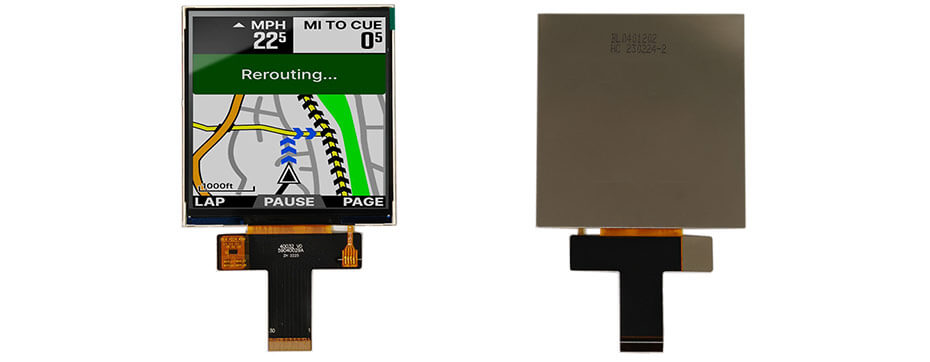

4 Inch High Brightness Display 700nits 720x720 MIPI Wide Temperature IPS TFT LCD Display

Part No.:ET040HD20-K
Size:4″ inch
Resolution:720x720
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:77x80mm
Active Area:71.93x71.93mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-30~80°C / -30~85°C
Touch:no

4 Inch High Brightness LCD Display Overview
4 Inch High Brightness Display 700nits 720x720 MIPI Wide Temperature IPS TFT LCD Display.

More 4 Inch High Brightness LCD Display For Reference
ET040HD30-T (720X720, MIPI, 1200nits, -20~70°C, 110x117.14mm)
ET040HD30-T (720X720, MIPI, 700nits, -30~80°C, 77x80mm)
ET040HD22-K (720X720, LVDS, 700nits, -30~80°C, 77x80mm)
ET040HD21-K (720X720, TTL, 700nits, -30~80°C, 77x80mm)
ET040FW01-T (400x960, TTL, 800nits, -20~60°C, 42.9x95.7mm)
ET040WV01-EX (480x800, MIPI, 1000nits, -10~60°C, 57.14x97.3mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
