7.1"-10.1" LCD Display (8.8")

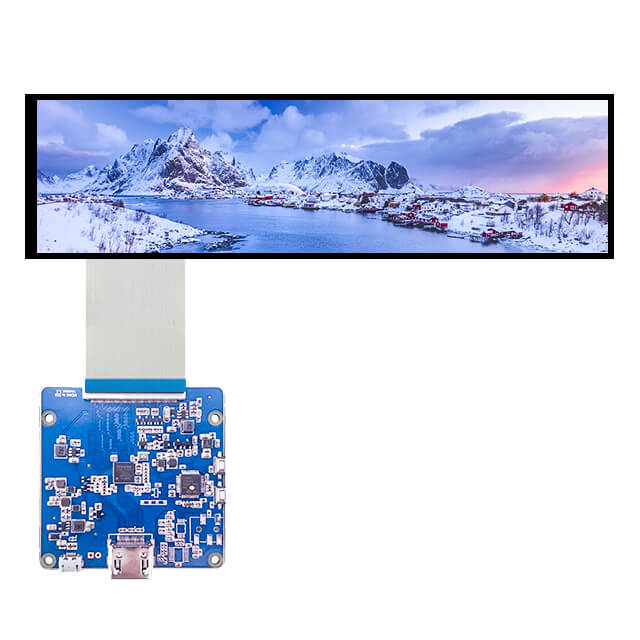

8.8 inch 1920*480 bar lcd panel display 8.8 inch bar lcd module with HDMI to MIPI controller board

  • Part No.:ET088IPW1-A00
  • Size:8.8″ inch
  • Resolution:1920x480
  • Panel Interface:MIPI
  • Display mode:IPS Pro
  • Outline Dimension:221.9x57.7
  • Active Area:218.88x54.72
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):600cd/m²
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

ET088IPW1-A00

General Features

Diagonal Size

8.8 inch

Type

LCM ,   a-Si TFT-LCD

Pixel Format

1920×480(RGB)

Configuration

RGB Horizontal Stripe

Active Area

218.88 × 54.72 (H×V) mm

Outline Dim.

231.3 × 64.3 × 6.4 (H×V×D) mm

Bezel Area

 221.9 × 57.7 (H×V) mm

Treatment

Hard coating

Luminance

600 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

330 (Typ.)(Tr+Td) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Operating Mode

IPS Pro, Normally Black, Transmissive

Support Color

16.7M

Light Source

WLED , 30K hours , No Driver

Weight

 -

Designed For

Automotive Display

Frame Rate

60Hz

Touch Panel

without

Interface Type

40 pins mipi

Power Supply

3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)

Environment

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
