0.48"-5" LCD Display (4.6")

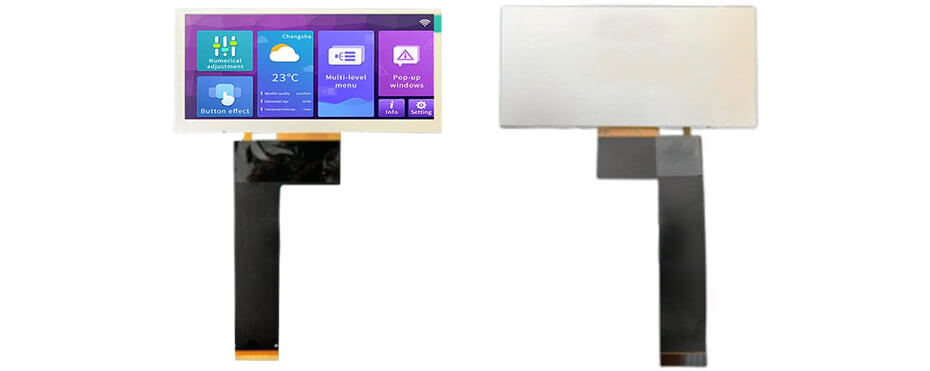

4.6 Inch High Brightness Display 850nits 800x320 TTL IPS TFT LCD Display

Part No.:ET046BA01-S
Size:4.6″ inch
Resolution:800x320
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:120.7x56.16mm
Active Area:108x43.2mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:850(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

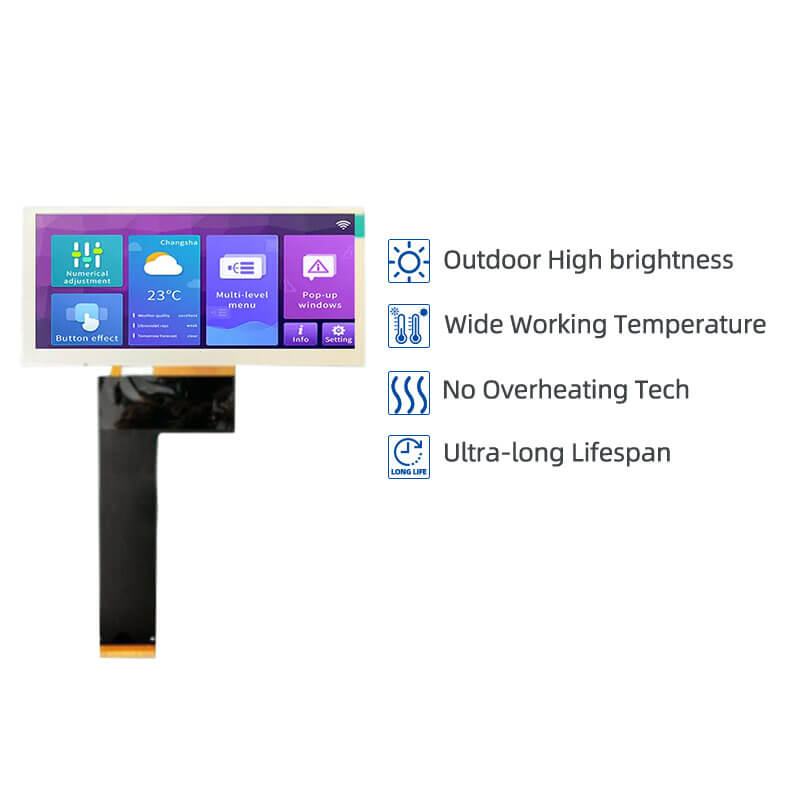

4.6 Inch High Brightness LCD Display Overview
4.6 Inch High Brightness Display 850nits 800x320 TTL IPS TFT LCD Display.

More 4.6 Inch High Brightness LCD Display For Reference
ET046BA01-S (800x320, TTL, 850nits, -20~70°C, 120.7x56.16mm)
ET046BA01-ST (800x320, TTL, 700nits, -20~70°C, 120.7x56.16mm, CTP)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
