4.6 Inch High Brightness LCD Display Overview

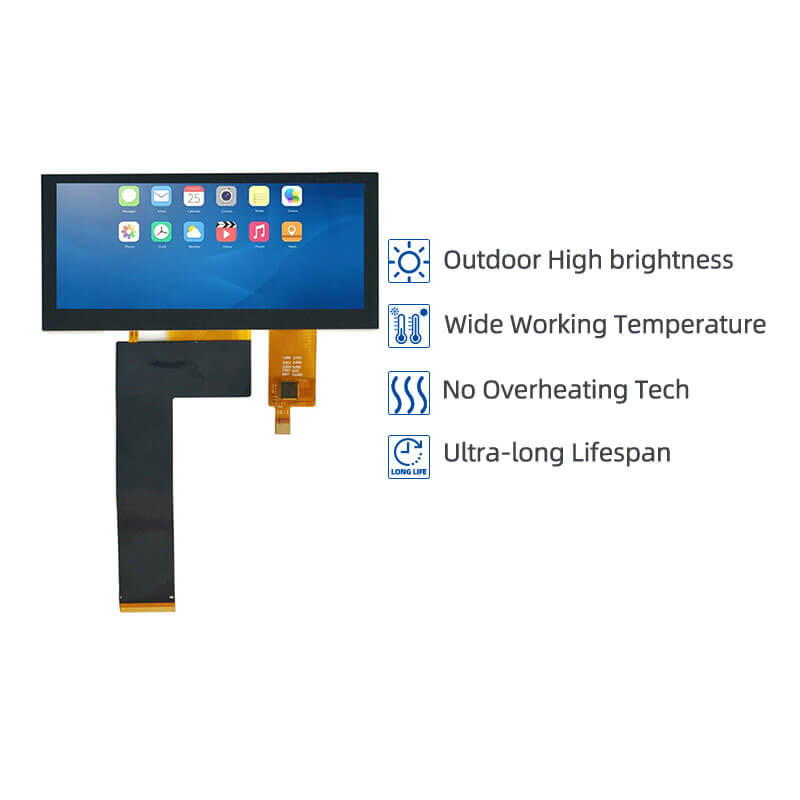

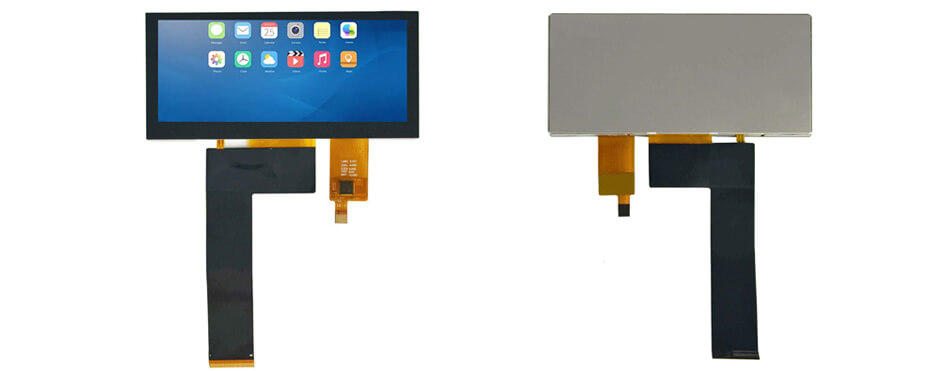

ET046BA01-ST is a 4.6-inch high-brightness IPS TFT LCD display with TTL interface, featuring a resolution of 800×320 in transmissive mode. It provides a typical brightness of 700 cd/m², with 80° viewing angles in all directions. The active area measures 108 × 43.2 mm within an outline dimension of 120.7 × 56.16 mm. The display operates from –20 °C to 70 °C and can be stored between –30 °C and 80 °C. This model supports capacitive touch functionality.
More 4.6 Inch High Brightness LCD Display For Reference

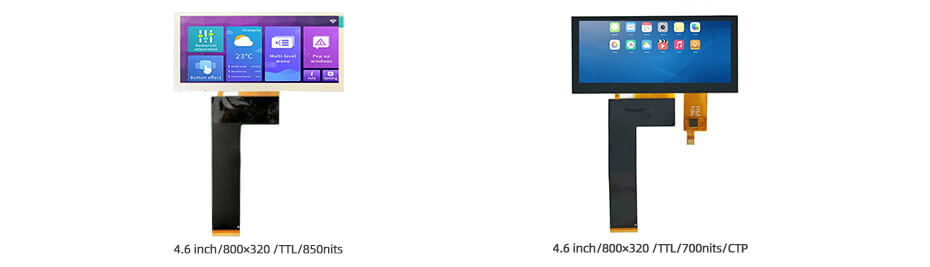

ET046BA01-S (800x320, TTL, 850nits, -20~70°C, 120.7x56.16mm)
ET046BA01-ST (800x320, TTL, 700nits, -20~70°C, 120.7x56.16mm, CTP)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
