4.3 Inch TFT LCD Display 800×480 TTL 1200nits High Brightness Wide Temperature LCD Display For Cycling Computer Bike Display

T4.3 Inch TFT LCD Display 800×480 TTL 1200nits High Brightness Wide Temperature LCD Display For Cycling Computer Bike Display Video

4.3 Inch TFT LCD Display 800×480 TTL 1200nits High Brightness Wide Temperature LCD Display For Cycling Computer Bike Display Overview

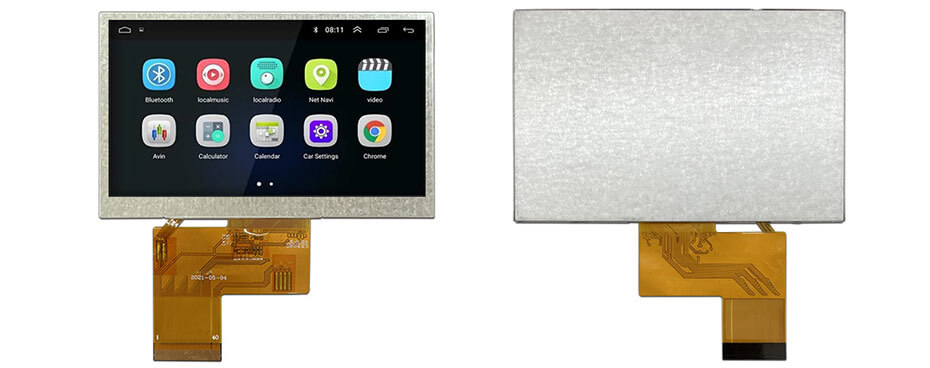

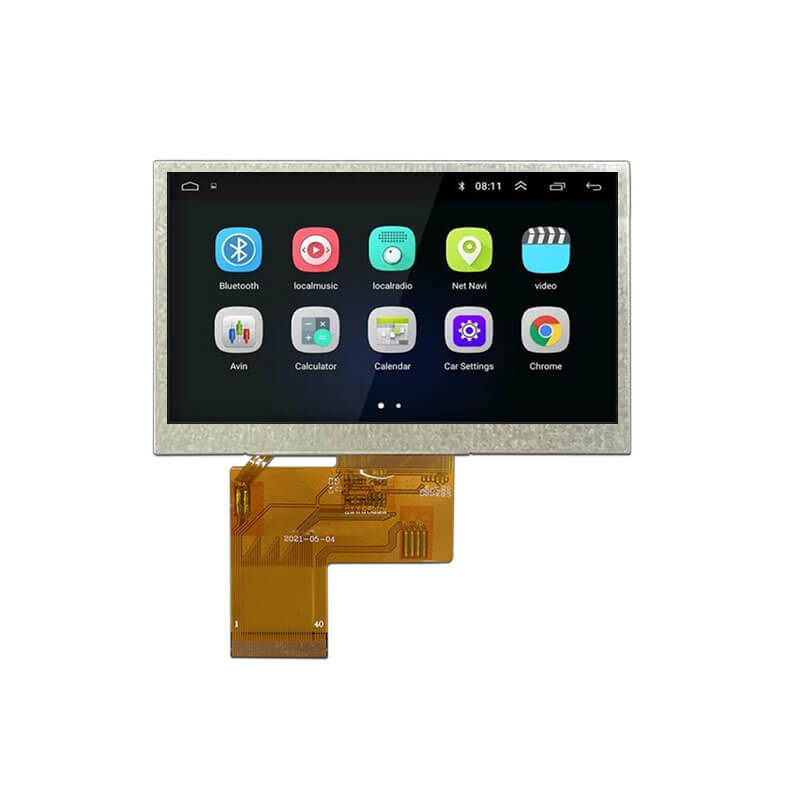

ET043WV15-T is a 4.3 inch diagonal TFT LCD display screen product, featuring a transmissive display mode. ET043WV15-T supports 800×480 resolution with an aspect ratio of 16:9 (W:H). It adopts a TTL interface and provides an active area of 95(W) × 53(H) mm, with an outline dimension of 105(W) × 67(H) mm. This display delivers a typical brightness of 1200 cd/m² and offers wide viewing angles of 80/80/80/80 (L/R/U/D). Designed for demanding environments, ET043WV15-T supports an operating temperature range of -30°C to 80°C and a storage temperature range of -30°C to 85°C. With no touch function, it is an ideal high-brightness wide-temperature display solution for cycling computers and bike display applications.

More 4.3 Inch Cycling Computer Bike Display For Reference
TM043NDHG11 (480×272, TTL, LCM, 880nits,  -20~70°C, 105.5×67.2mm)
COM43H4N44ULC (480×272, TTL, LCM, 1200nits,  -30~85°C, 105.5×67.2mm)
ET043WV09-TT (480×800, TTL, LCM, 800nits,  -30~85°C, 62×104.25mm)
COM43H4N91UTC (480×800, TTL, LCM, 320nits,  -20~70°C, 63×105.3mm)
COM43H4N90ULC (480×800, TTL, LCM, 400nits,  -20~70°C, 63×105.3mm)
COM43H4N66ULC (480×800, MIPI, LCM, 300nits,  -20~70°C, 61.2×103mm)
ET043WV15-T (800×480, TTL, LCM, 1200nits,  -30~80°C, 105.5×67.2mm)
ET043FH01-Z (1920×1080, LVDS, LCM, 1000nits,  -20~70°C, 106.34×66.01mm)

Cycling Computer Bike Display Solution

Youritech Cycling Computer Bike Display Production and Manufacturing
