32 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1000nits LCD Display For Automotive

Part No.:ET320FH02-T
Size:32″ inch
Resolution:1920x1080
Panel Interface:LVDS
Display mode:TN
Outline Dimension:725.2x422.7
Active Area:698.40x392.85mm
Viewing Angle L/R/U/D:All O\\\'clock
Brightness（cd/m2）:1000nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

32 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1000nits LCD Display For Automotive Video

32 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1000nits LCD Display For Automotive Overview

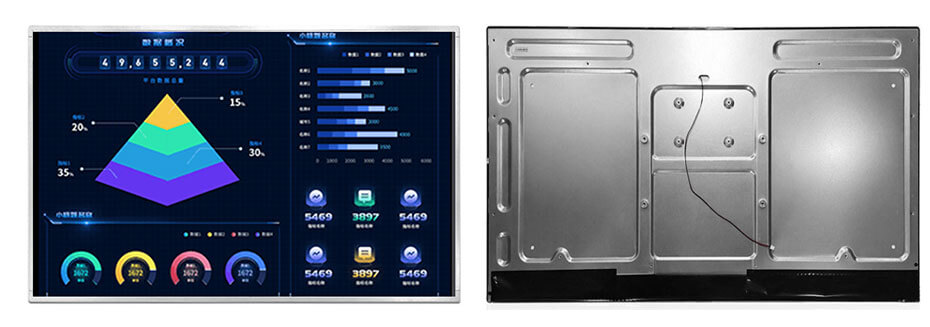

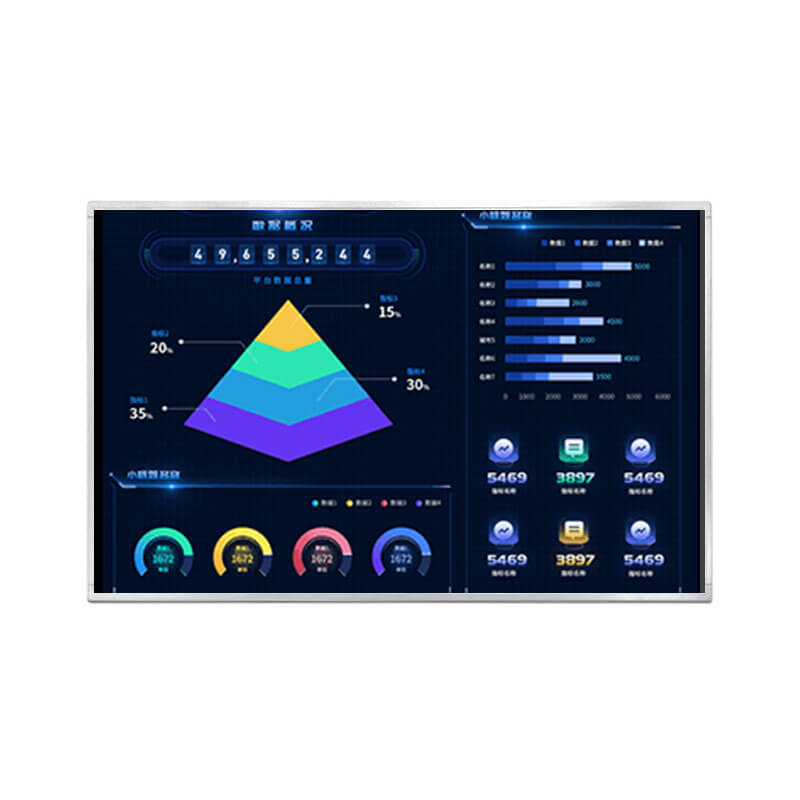

ET320FH02-T is a 32 inch diagonal TFT-LCD display product featuring a 1920×1080 (FHD) resolution with a 16:9 aspect ratio. It adopts a TN display mode and supports LVDS interface transmission. The display offers an active area of 698.40(W) × 392.85(H) mm and an outline dimension of 725.2(W) × 422.7(H) mm. Designed with 1000 cd/m² high brightness, the ET320FH02-T delivers excellent visibility for automotive and high ambient light environments, while providing All O’clock viewing angles for wide-angle viewing performance. It supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. This model is supplied without touch function, making it suitable for automotive display and industrial visual applications.
