0.48"-5" LCD Display (4.2")

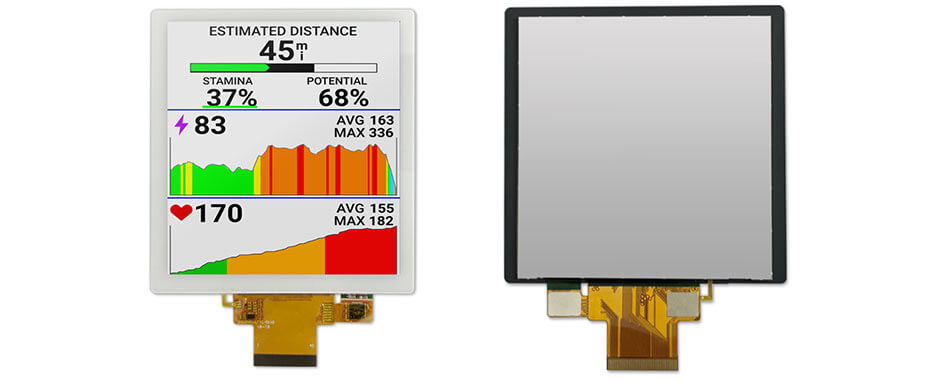

4.2 Inch Square Display IPS 720x672 MIPI TFT LCD Display

  • Part No.:ET042SQ01-TST
  • Size:4.2″ inch
  • Resolution:720x672
  • Panel Interface:MIPI
  • Display mode:Transmissive
  • Outline Dimension:84x84mm
  • Active Area:77.976x72.7776mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness（cd/m2）:300(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no
Get a quote


4.2 Inch Square Display Overview
4.2 Inch Square Display IPS 720x672 MIPI TFT LCD Display.

More 4.2 Inch Square Display For Reference
ET042SQ01-TST (720x672, MIPI, 300nits, -20~70°C, 84x84mm)
ET042SQ02-TST (720x672, TTL, 300nits, -20~70°C, 84x84mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
