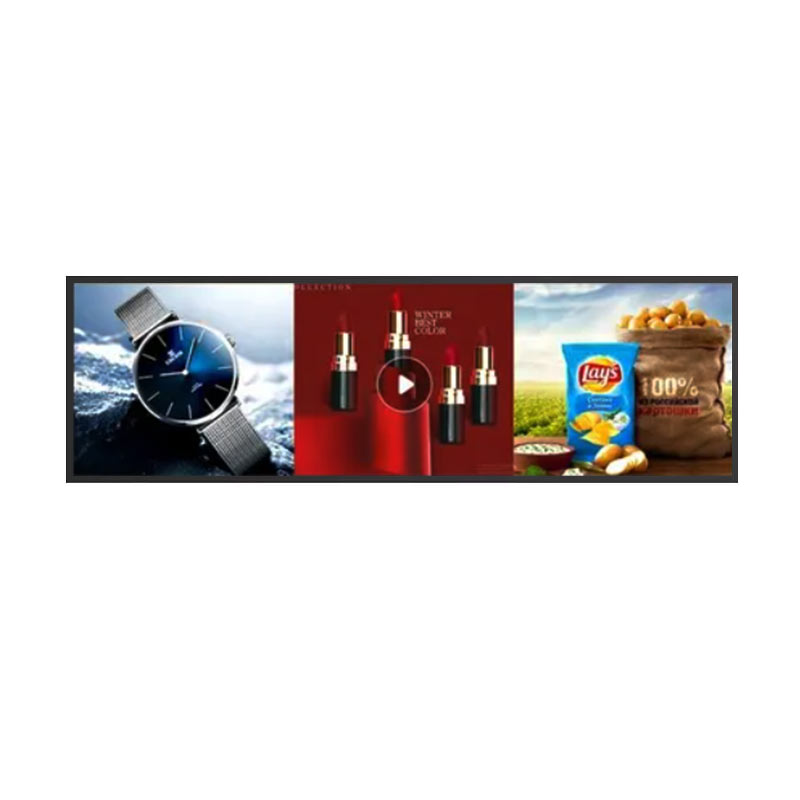

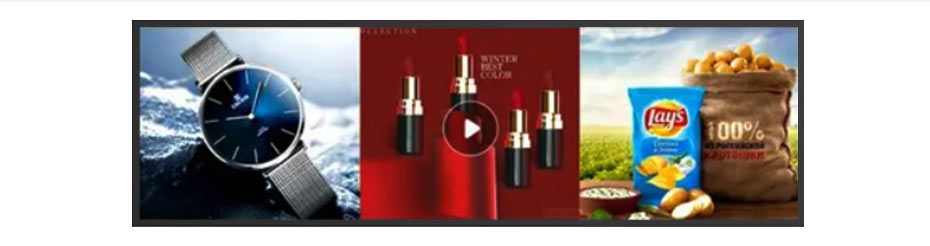

36 Inch Stretched Bar Display Overview
ET360BA01-YU is a 36-inch diagonal stretched bar V-by-One TFT-LCD display featuring a transmissive panel. It supports a resolution of 3840 × 1080 with an active area of 878.112 (W) × 242.68 (H) mm and an outline dimension of 900 (W) × 263 (H) mm. The display provides high brightness of 500 cd/m² (typical) and wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET360BA01-YU operates in temperatures from 0 °C to 50 °C and can be stored between –20 °C and 60 °C, and it supports touch functionality, making it suitable for interactive, high-visibility applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
