LCD above 17.3" (36.6")

36.6 Inch Stretched Bar Display 1920x290 High Brightness 1000nits LVDS TFT LCD Display

Part No.:ET366BA01-RX
Size:36.6″ inch
Resolution:1920x290
Panel Interface:LVDS
Display mode:Transmissive

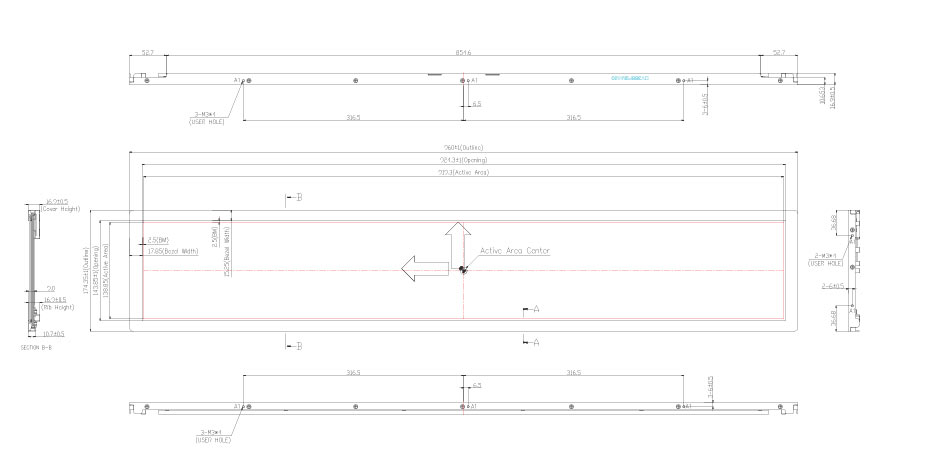

Outline Dimension:960x174.35mm
Active Area:919.296x139mm
Viewing Angle L/R/U/D:88/88/88/88
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~60°C / -20~60°C
Touch:yes

36.6 Inch Stretched Bar Display Overview

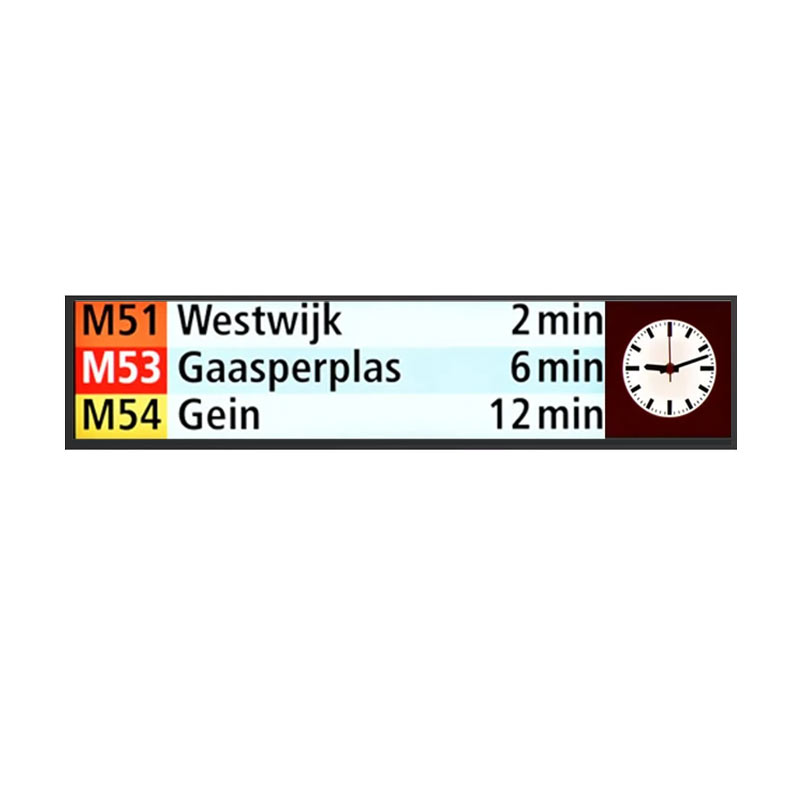

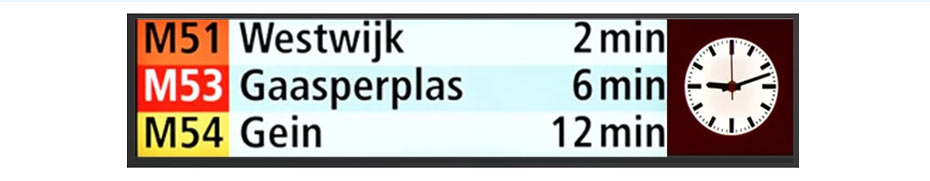

ET366BA01-RX is a 36.6-inch diagonal stretched bar LVDS TFT-LCD display with a transmissive panel. It supports a resolution of 1920 × 290, featuring an active area of 919.296 (W) × 139 (H) mm and an outline dimension of 960 (W) × 174.35 (H) mm. The display offers high brightness of 1000 cd/m² (typical) and wide viewing angles of 88°/88°/88°/88° (L/R/U/D). ET366BA01-RX operates within –20 °C to 60 °C and can be stored between –20 °C and 60 °C, and it supports touch functionality, making it suitable for interactive, high-visibility applications.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
