35 Inch Stretched Bar Display Overview

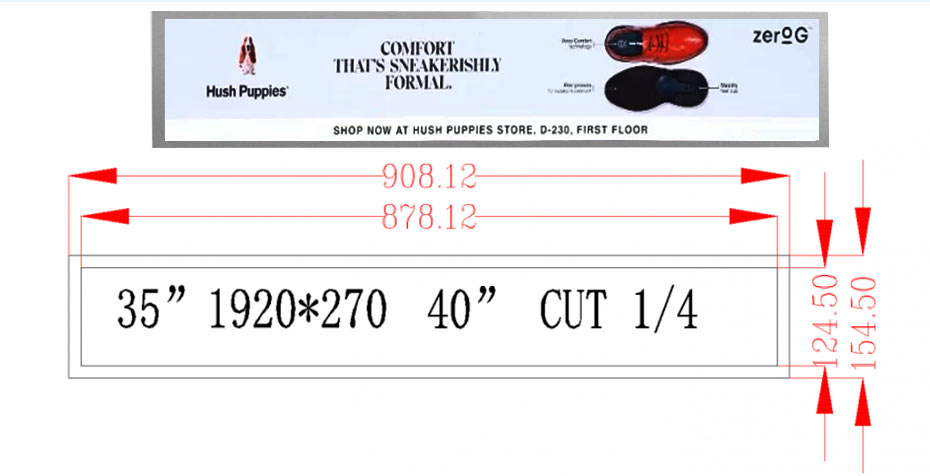

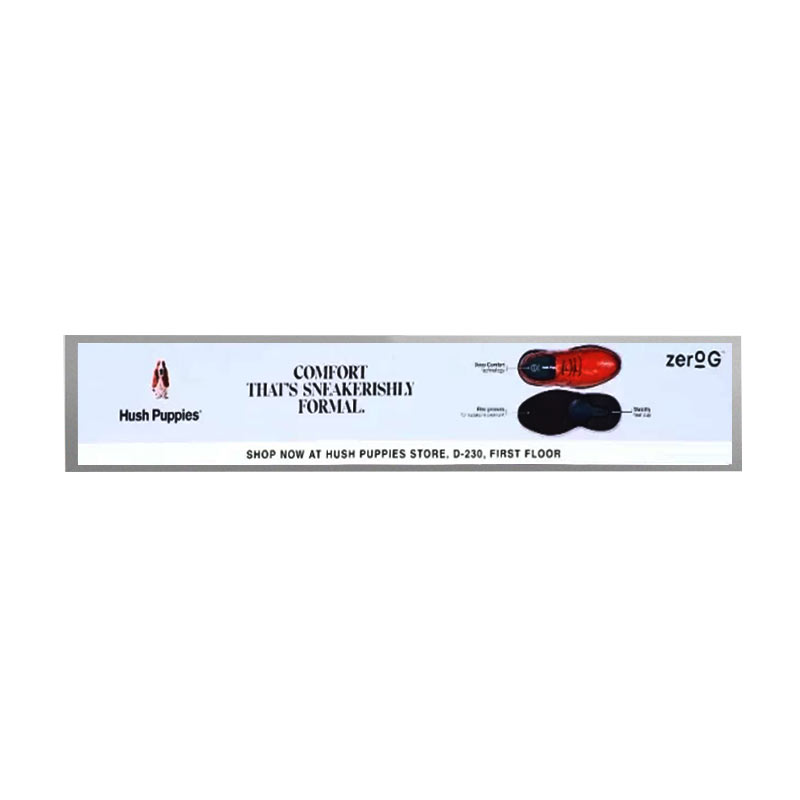

ET350BA01-HT is a 35-inch diagonal stretched bar LVDS TFT-LCD display featuring a transmissive panel. It supports a resolution of 1920 × 270 with an active area of 878.12 (W) × 124.5 (H) mm and an outline dimension of 908.12 (W) × 154.5 (H) mm. The display provides high brightness of 500 cd/m² (typical) and wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET350BA01-HT operates in temperatures from 0 °C to 50 °C and can be stored between –20 °C and 70 °C, and it supports touch functionality, making it ideal for interactive and high-visibility applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
