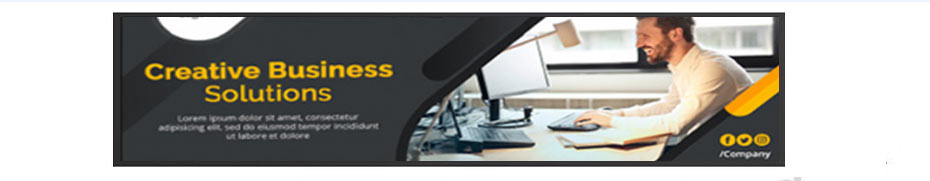

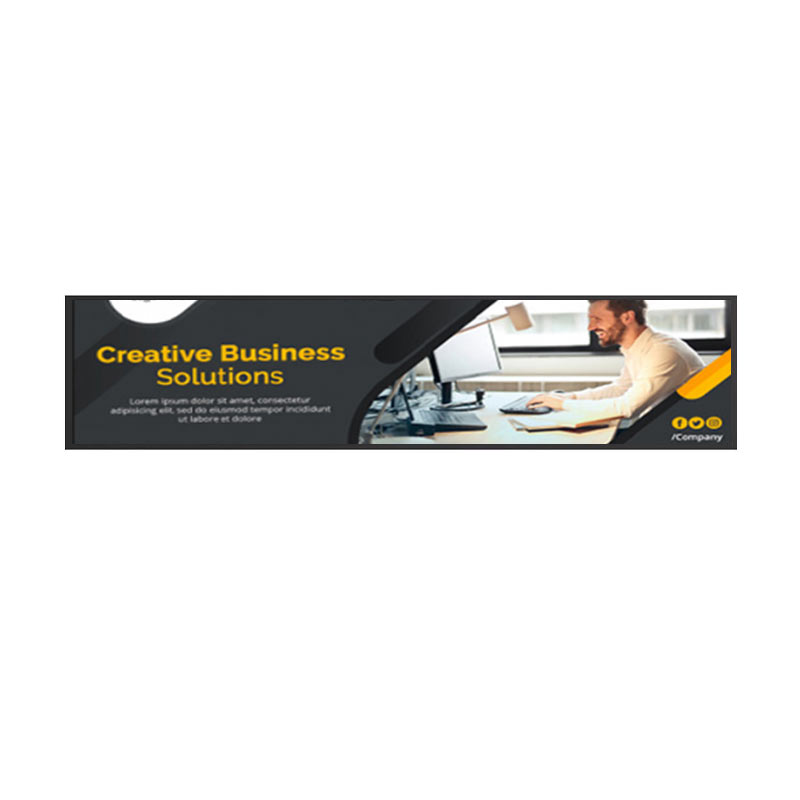

36.8 Inch Stretched Bar Display Overview

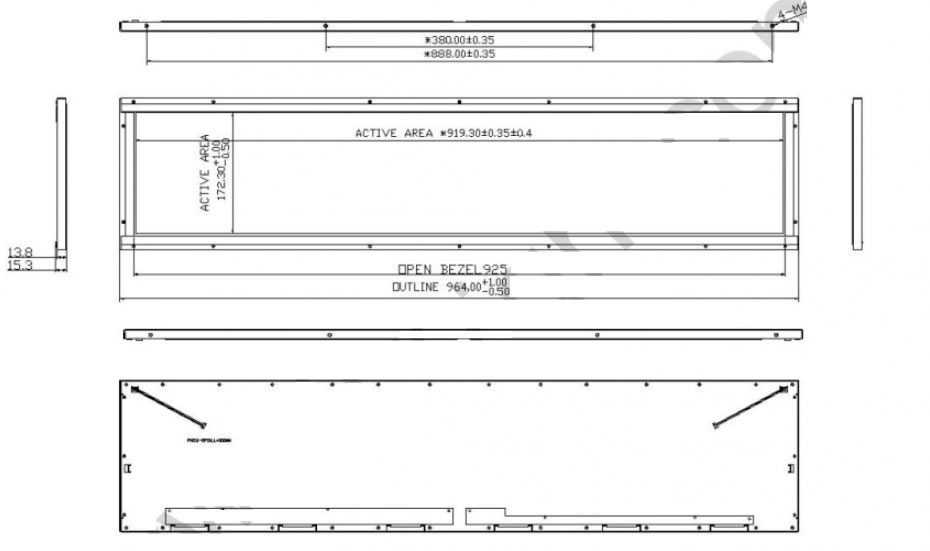

ET368BA01-VL is a 36.8-inch diagonal stretched bar LVDS TFT-LCD display featuring a transmissive panel. It supports a resolution of 1920 × 360, with an active area of 919.3 (W) × 172.3 (H) mm and an outline dimension of 964 (W) × 215.5 (H) mm. The display delivers high brightness of 1000 cd/m² (typical) and wide viewing angles of 88°/88°/88°/88° (L/R/U/D). ET368BA01-VL operates within 0 °C to 50 °C and can be stored between –20 °C and 60 °C, and it supports touch functionality, making it ideal for high-visibility, interactive applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
