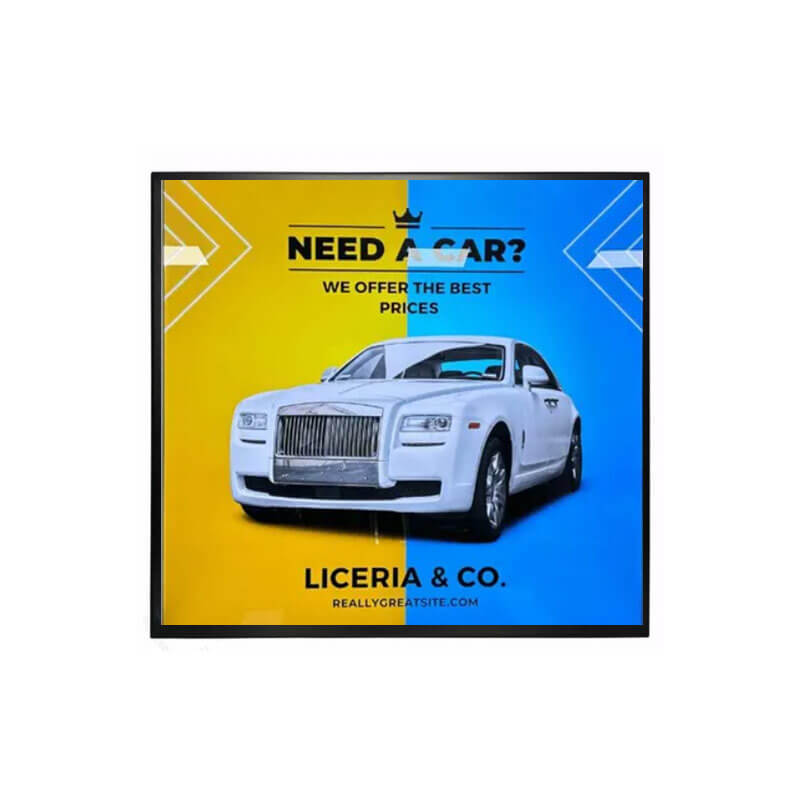

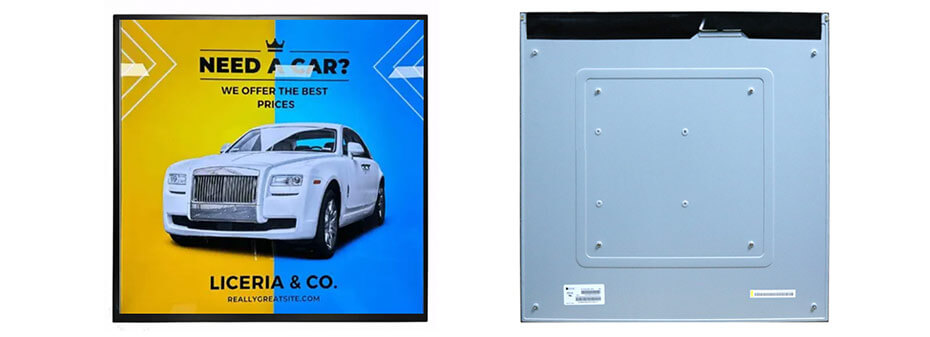

33 Inch Square Display IPS 1920x1920 LVDS 500nits High Brightness TFT LCD Display

Part No.:ET330SQ01-RX
Size:33″ inch
Resolution:1920x1920
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:612.96x612.96mm
Active Area:596.16x596.16mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

33 Inch Square Display Overview
ET330SQ01-RX is a 33-inch diagonal square IPS TFT LCD display with a resolution of 1920×1920, featuring an LVDS interface. The display operates in transmissive mode and has an active area of 596.16(W)×596.16(H) mm, with an outline dimension of 612.96(W)×612.96(H) mm. ET330SQ01-RX provides high brightness of 500 cd/m² (Typ.), wide viewing angles of 89° in all directions (L/R/U/D), and supports operation from 0 °C to 50 °C and storage from –20 °C to 60 °C. This model does not include touch functionality.
