0.48"-5" LCD Display (3")

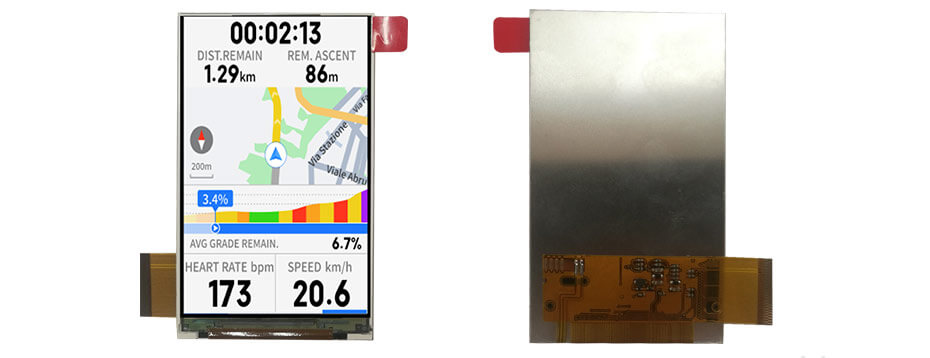

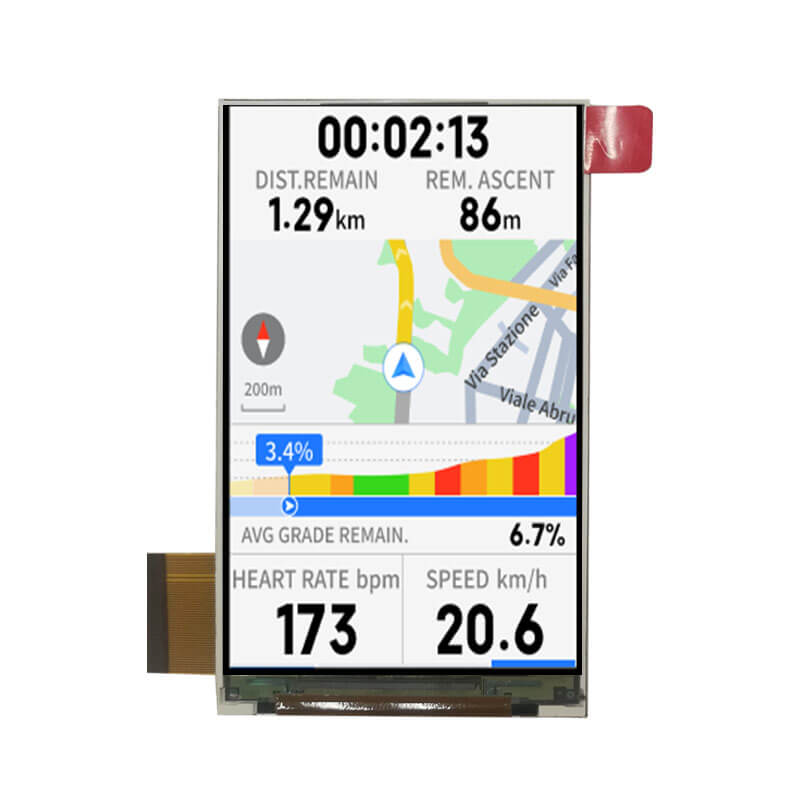

3 Inch Transflective Display 480x800 TTL Sunlight Readable LCD Display For Handheld PDA

Part No.:ET030WV01-S
Size:3″ inch
Resolution:480x800
Panel Interface:TTL
Display mode:Transflective
Outline Dimension:43.95x74.75mm
Active Area:38.88x64.8mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3 Inch Transflective LCD Display Overview
The ET030WV01-S is a 3-inch transflective LCD display designed for handheld PDAs, featuring a 480×800 resolution and TTL interface. It offers an active area of 38.88×64.8 mm within overall dimensions of 43.95×74.75 mm. The display delivers 400 cd/m² typical brightness, 80° viewing angles in all directions, operates from –20 to 70 °C, can be stored between –30 and 80 °C, and does not support touch functionality.

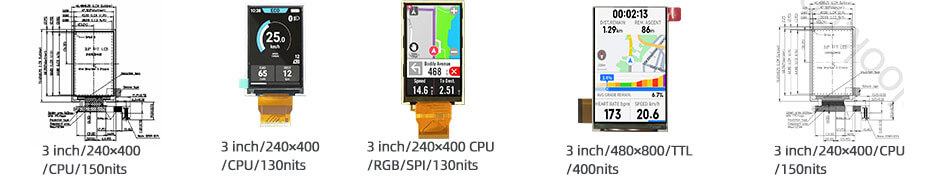

More 3 Inch Transflective LCD Display For Reference
TM030LDHT15 (240x400, CPU, 150nits, -20~70°C, 46.48x76.65mm)
TM030LDHT16 (240x400, CPU, 130nits, -20~70°C, 47.28x76.4mm)
TM030LDHT1 (240x400, CPU/RGB/SPI, 130nits, -20~70°C, 47.28x76.4mm)
ET030WV01-S (480x800, TTL, 400nits, -20~70°C, 43.95x74.75mm)
TM030LDHT10 (240x400, CPU, 150nits, -20~70°C, 46.48x76.65mm)
