2.8 Inch Transflective Display 240x320 CPU/RGB/SPI Sunlight Readable LCD Display For Handheld PDA

Part No.:ET028TR01-M
Size:2.8″ inch
Resolution:240x320
Panel Interface:CPU/RGB/SPI
Display mode:Transflective

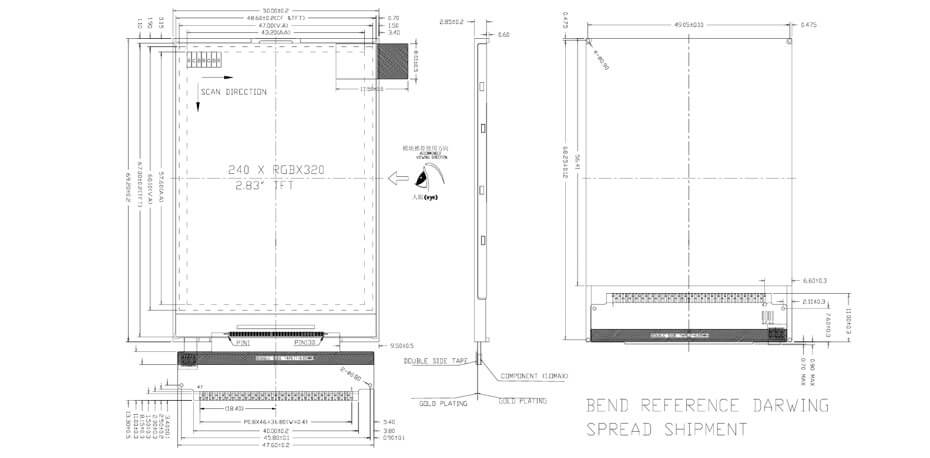

Outline Dimension:50x69.2mm
Active Area:43.2x57.6mm
Viewing Angle L/R/U/D:41/32/45/45
Brightness（cd/m2）:125(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

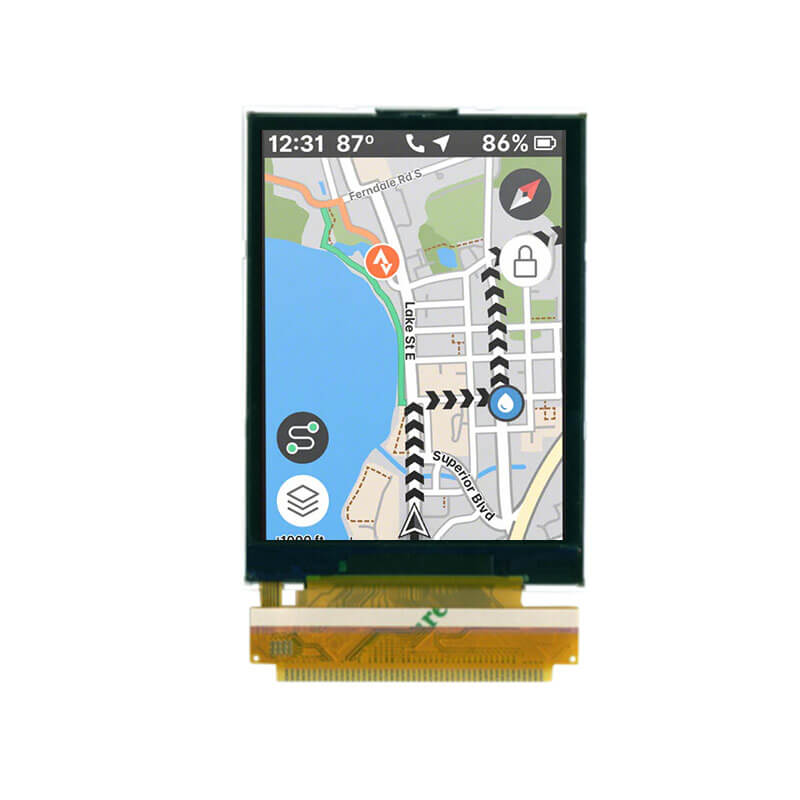

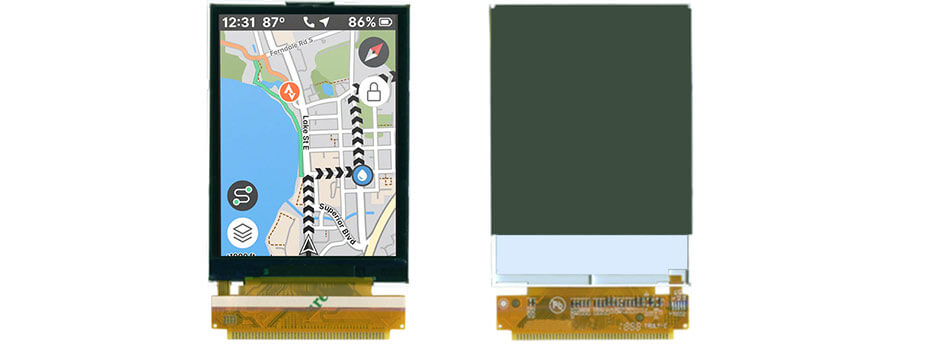

2.8 Inch Transflective LCD Display Overview
The ET028TR01-M is a 2.8-inch transflective LCD display for handheld PDAs, featuring a 240×320 resolution and CPU/RGB/SPI interface. It has an active area of 43.2×57.6 mm and overall dimensions of 50×69.2 mm. The display provides 125 cd/m² brightness, typical viewing angles of 41°/32°/45°/45° (L/R/U/D), operates between –20–70 °C, can be stored from –30–80 °C, and does not support touch functionality.
