3.97 Inch TFT LCD Display 480×800 CPU RGB SPI LCD Display For Healthcare Medical Display Solution

3.97 Inch TFT LCD Display 480×800 CPU RGB SPI LCD Display For Healthcare Medical Display Solution Overview

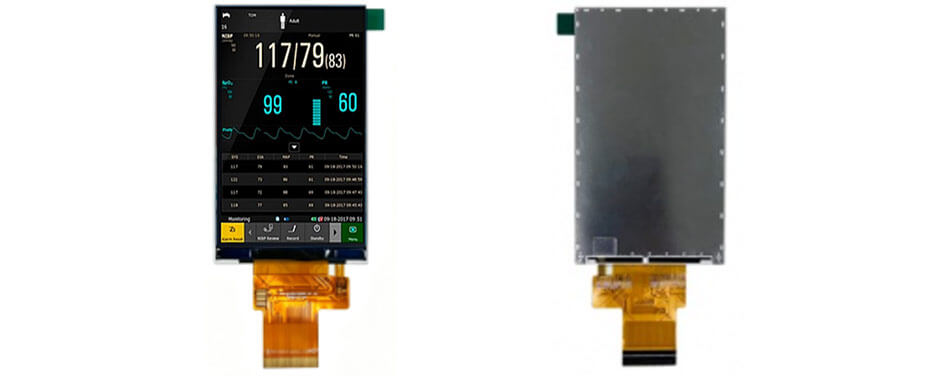

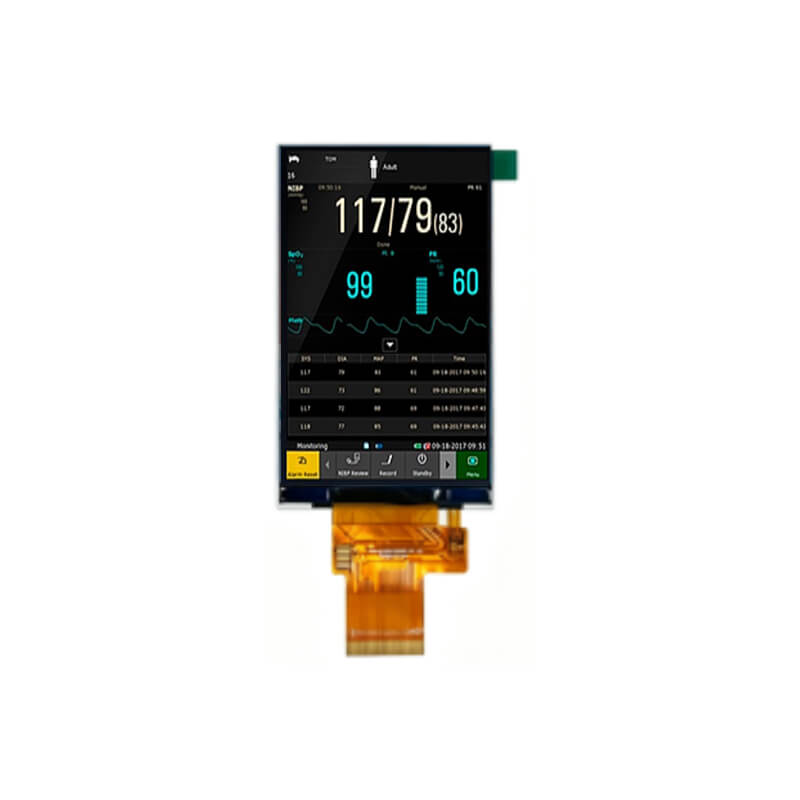

ET040WV01-YS is a 3.97-inch diagonal TFT LCD display designed for healthcare and medical display solutions. ET040WV01-YS supports a resolution of 480×800 pixels with a CPU RGB SPI interface and a transmissive display mode. It features an active area of 51.84(W)×86.4(H) mm and an outline dimension of 57.14(W)×96.85(H) mm. The display provides a typical brightness of 300 cd/m² and a wide viewing angle of L/R/U/D 80°/80°/80°/80°. ET040WV01-YS is designed for reliable performance across an operating temperature range of -20~70°C and a storage temperature range of -30~80°C. Without touch functionality, this compact TFT LCD display is suitable for a variety of healthcare, medical equipment, and embedded display applications.

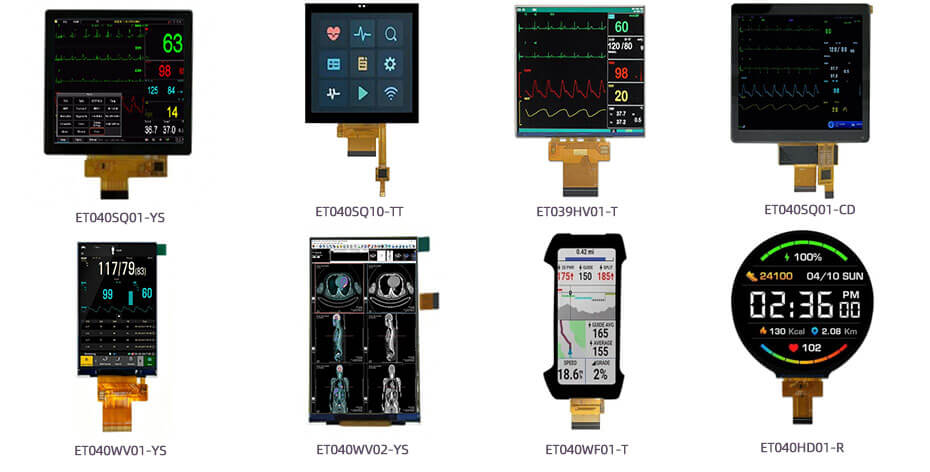

More 4 Inch Healthcare & Medical Display Solution For Reference
ET040SQ01-YS (LCM, 720×720, MIPI, -20~70°C, 84×84mm)
ET040SQ10-TT (LCM, 480×480, TTL, -20~70°C, 81.8×84.95mm)
ET039HV01-T (LCM, 480×480, CPU/SPI, -20~70°C, 74.86×76.73mm)
ET040SQ01-CD (LCM, 480×480, MIPI, -20~70°C, 86×86mm)
ET040WV01-YS (LCM, 480×480, CPU/RGB/SPI, -20~70°C, 57.14×96.85mm)
ET040WV02-YS (LCM, 480×480, MIPI, -20~70°C, 57.14×96.85mm)
ET040WF01-T (LCM, 400×960, TTL, -20~60°C, 42.9×95.7mm)
ET040HD01-R (LCM, 640×1280, MIPI, -20~70°C, 51.7×101.75mm)

Key Features of Healthcare & Medical Display Solutions

High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.

Application of Healthcare & Medical Display Solutions

Medical Imaging Equipment

Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.

Patient Monitoring & Critical Care

Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.

Diagnostic & Laboratory Equipment

Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.

Surgical & Operating Room Equipment

Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.

Dental Equipment

Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.

Emergency & Ambulance Equipment

Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.

Respiratory & Anesthesia Equipment

Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.

Infusion & Drug Delivery

Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.

Rehabilitation & Home Healthcare

Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.

Ophthalmic Equipment

Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.

Cardiology Equipment

ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
