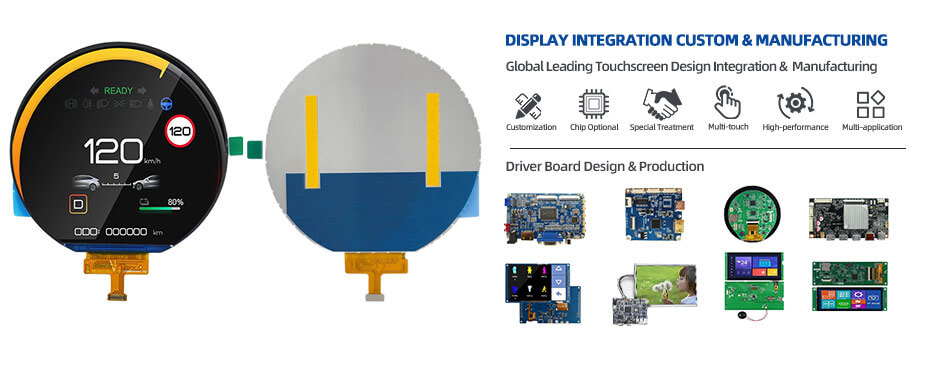

3.6 Inch Circular Display 544x506 LVDS IPS Round LCD Display For Wearable

Part No.:ET036CR01-A
Size:3.6″ inch
Resolution:544x506
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:95.46x91.81mm
Active Area:83.49x89.76mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:480(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.6 Inch Circular Display Overview
ET036CR01-A is a 3.6-inch circular IPS LCD display designed for wearable applications. It supports a 544 × 506 resolution with a transmissive display mode and LVDS interface. The display features an active area of 83.49 × 89.76 mm, an outline size of 95.46 × 91.81 mm, 85° viewing angles in all directions, and a typical brightness of 480 cd/m². It operates between –20 to 70 °C, can be stored from –30 to 80 °C, and does not include touch functionality.

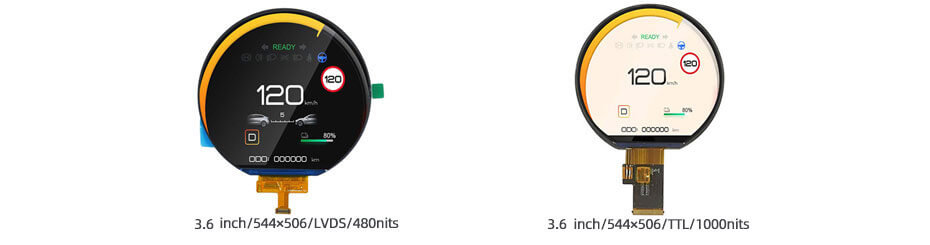

More 3.6 Inch Circular LCD Display For Reference
ET036CR01-A (544x506, LVDS, 480nits, -20~70°C, 95.46x91.81mm)
ET036CR01-T (544x506, TTL, 1000nits, -30~85°C, 98.88x94.12mm)
