6.8 Inch Stretched Bar Display 480x1280 IPS MIPI 1000nits High Brightness TFT LCD Display.

6.8 Inch Stretched Bar Display Overview

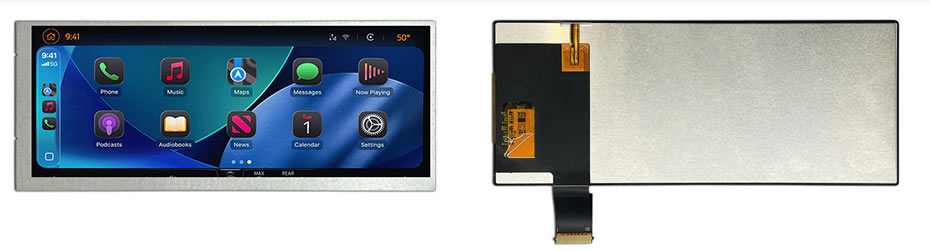

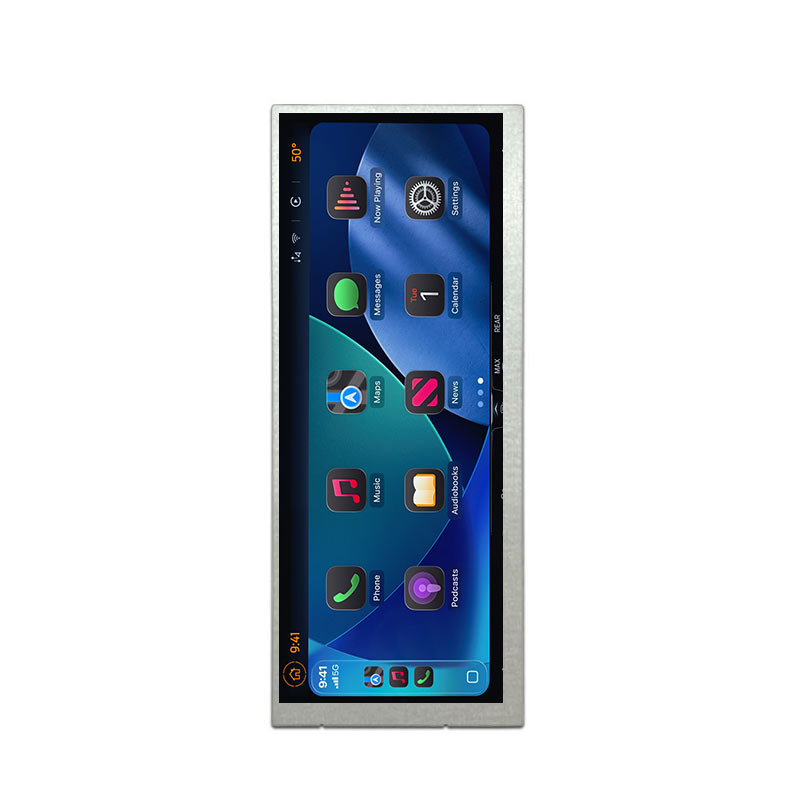

ET068BA07-T is a 6.8-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 1280 pixels and utilizes a MIPI interface for high-speed signal transmission. The display provides an active area of 60.22 (W) × 160.59 (H) mm within an outline dimension of 74.42 (W) × 173.79 (H) mm, making it suitable for tall, vertical-oriented applications. With wide viewing angles of 85° in all directions (L/R/U/D), it delivers stable and consistent image quality from multiple perspectives. The typical brightness reaches 1000 cd/m², offering excellent visibility even in high ambient-light environments. ET068BA07-T is designed for reliable performance across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it ideal for high-brightness industrial, transportation, and embedded system stretched bar display applications.

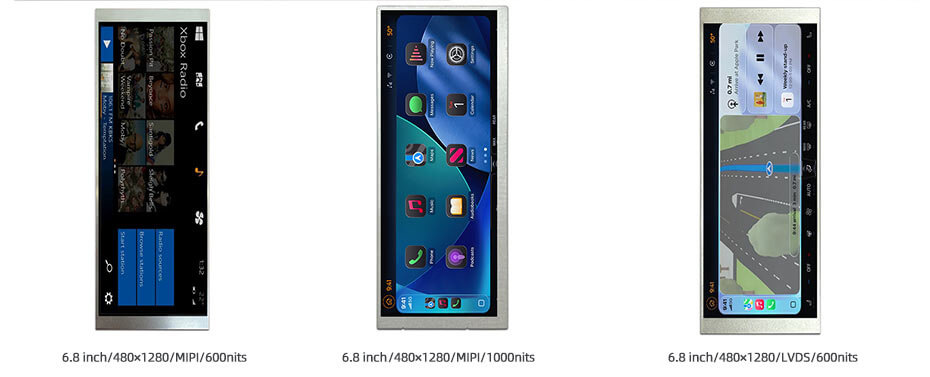

More 6.8 Inch Bar Displays For Reference
ET068BA03-T (480x1280 , MIPI, IPS, 600nits, -20~70°C, 66.7x181mm)
ET068BA07-T (480x1280 , MIPI, IPS, 1000nits, -20~70°C, 74.42x173.79mm)
ET068BA01-T (480x1280 , LVDS, IPS, 600nits, -20~70°C, 66.7x181mm)
