29.3 Inch High Brightness Display 1000nits IPS 1920x710 LVDS Stretched Bar Display

Part No.:ET293BA01-Y
Size:29.3″ inch
Resolution:1920x710
Panel Interface:LVDS
Display mode:Transmissive

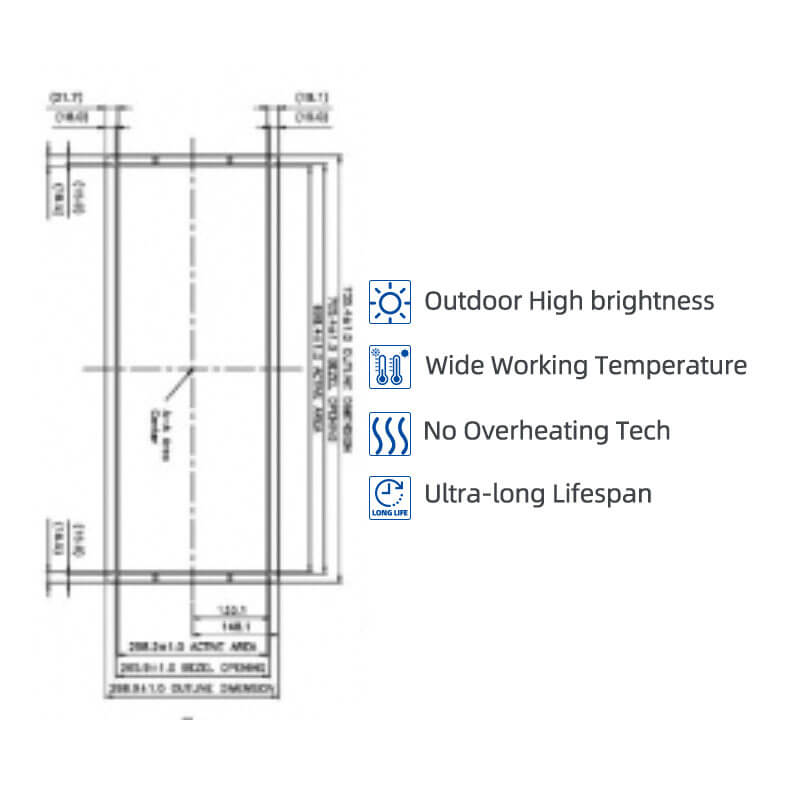

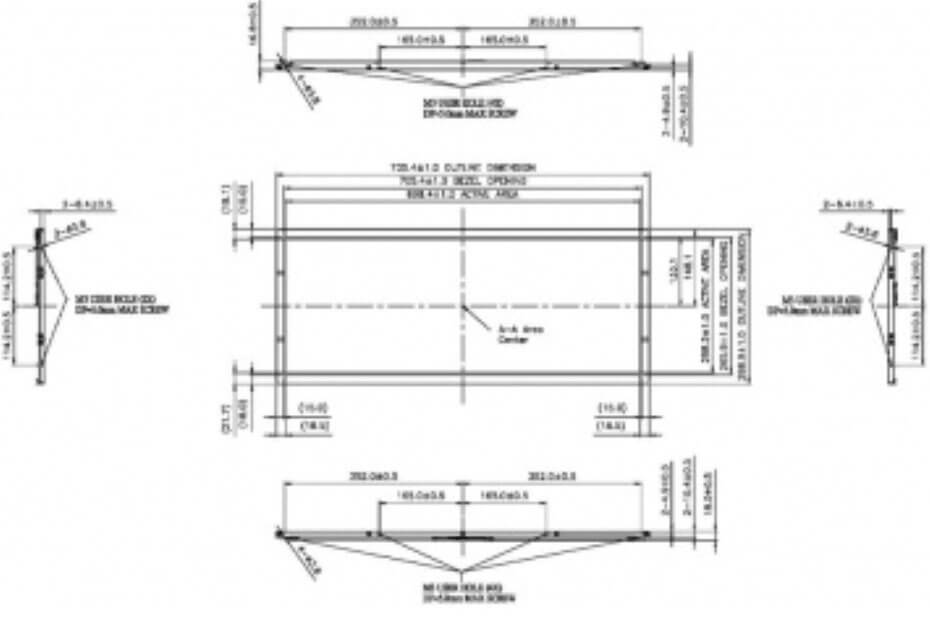

Outline Dimension:735.4x298.9mm
Active Area:698.4x258.2mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

29.3 Inch High Brightness LCD Display Overview
The ET293BA01-Y is a 29.3-inch high-brightness IPS stretched bar display with a 1920×710 resolution and LVDS interface. It features a transmissive panel with an active area of 698.4×258.2 mm and overall dimensions of 735.4×298.9 mm. The display delivers 1000 cd/m² brightness, provides 89° viewing angles in all directions, operates between 0–50 °C, can be stored from –20–60 °C, and does not support touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
