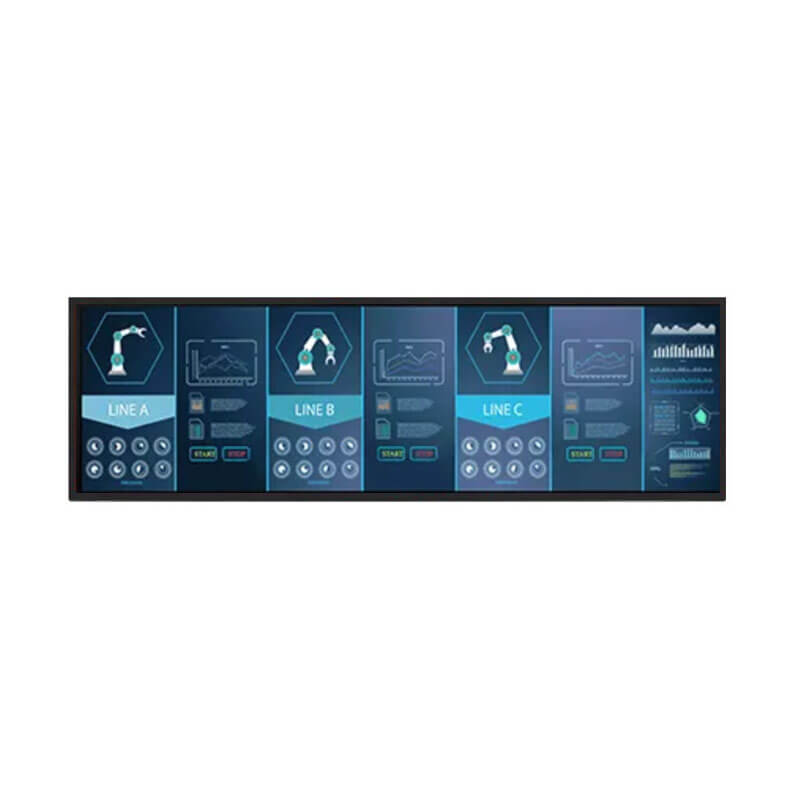

28 Inch 4K LCD Display 3840x720 High Brightness 500nits V-by-One IPS LCD Module

Part No.:ET280BA01-YU
Size:28″ inch
Resolution:3840x720
Panel Interface:V-by-One
Display mode:Transmissive
Outline Dimension:720x151mm
Active Area:698.4x131mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

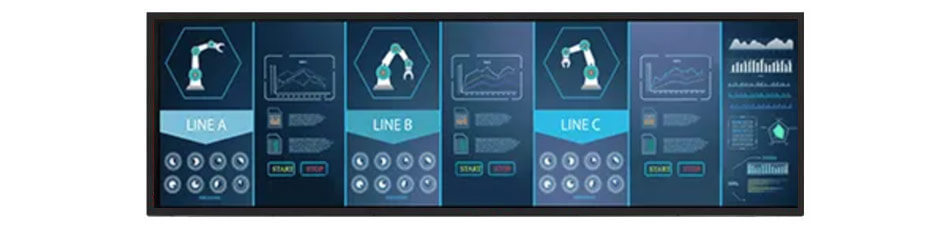

28 Inch 4k Display Overview
ET280BA01-YU is a 28-inch diagonal LCD display module based on IPS technology and operating in transmissive display mode. It supports a resolution of 3840 × 720 with an ultra-wide aspect ratio, delivering clear image performance and wide viewing angles of 89° in all directions (L/R/U/D). The panel adopts a V-by-One interface for high-speed signal transmission and provides a typical brightness of 500 cd/m², suitable for indoor display applications. It features an active area of 698.4 (W) × 131 (H) mm and an outline dimension of 720 × 151 mm. ET280BA01-YU supports an operating temperature range of 0 to 50°C, a storage temperature range of −20 to 60°C, and does not include touch functionality.

More 28 Inch 4k Display For Reference
ET280BA01-YU (LCM, 3840x720, V-by-One, 500nits, 0~50°C, 720x151mm)
M280DCA-E7B (LCM, 3840x2160, eDP, 300nits, 0~50°C, 631.93x359.78mm)
