17"-31.5" Touch Screen (27“)

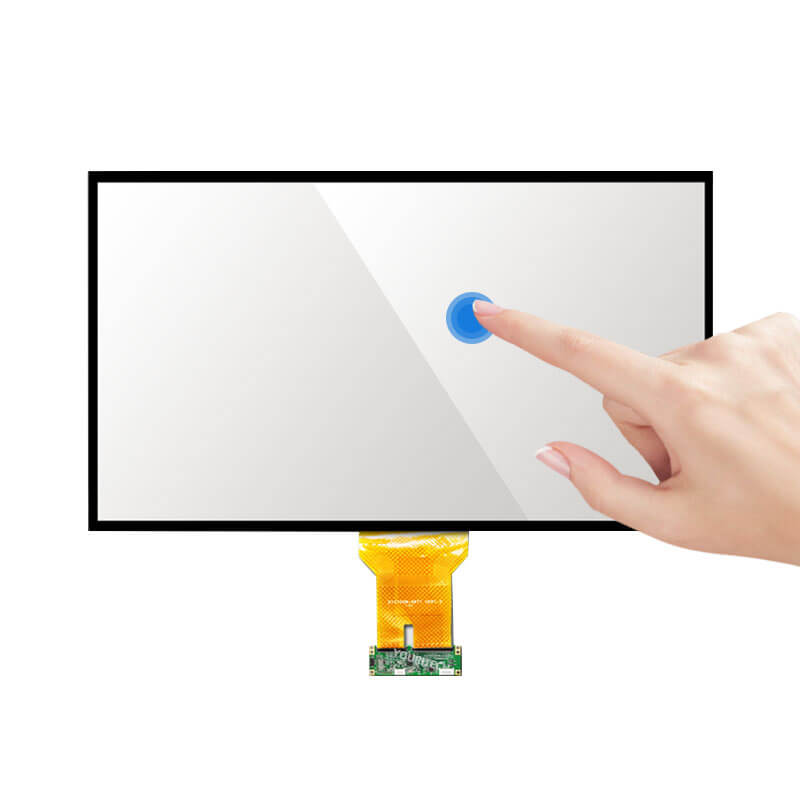

27 Inch PCAP Touch Control Screen G/G mechanism EETI IC COB Type USB/RS232 Touch Display

  • Part No.:ET270CTP01
  • Size:27″ inch
  • Resolution:Optional
  • Panel Interface:USB,RS232
  • Display mode:PCAP
  • Outline Dimension:629x372mm
  • Active Area:599x337.7mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:yes
Get a quote

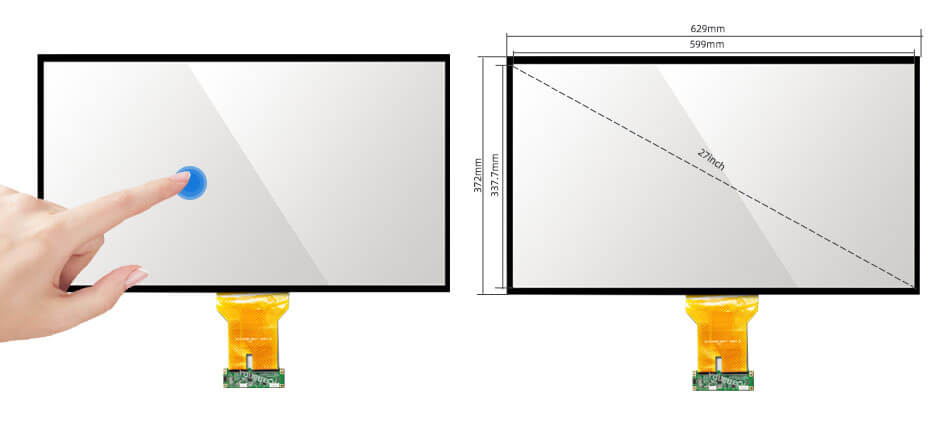

27 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB，RS232
Display Area: 599x337.7 mm
Outline Dim.: 629x372 mm
Operation Temperature: -10~60 °C
Storage Temperature: -20~70 °C

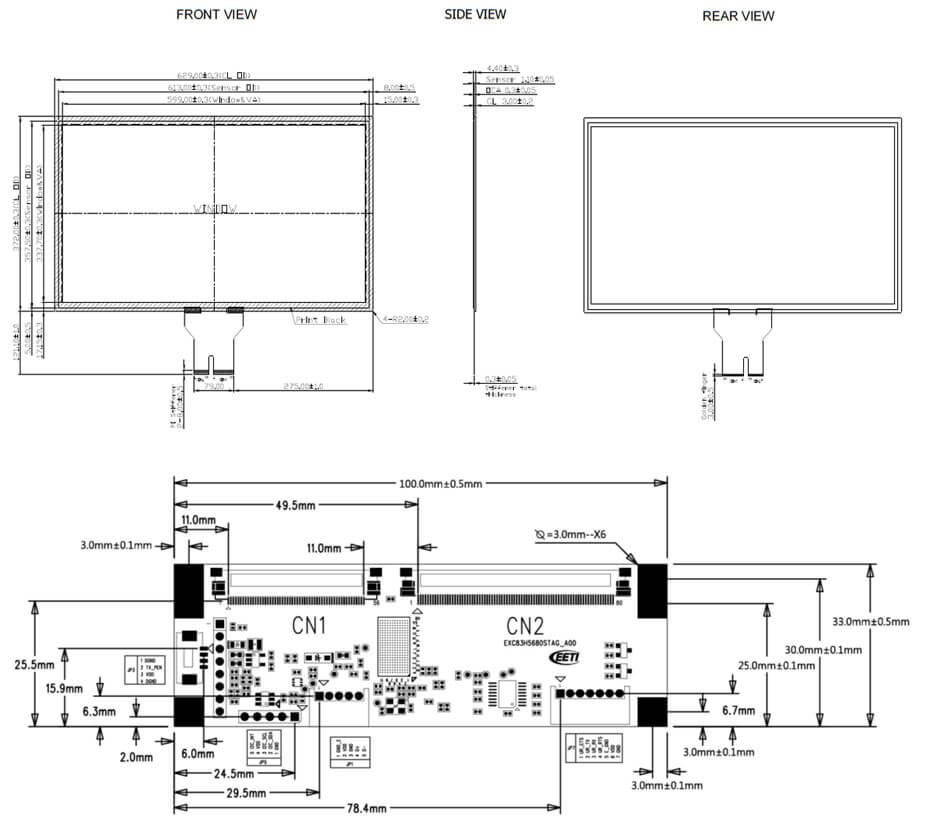

27 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
