17"-31.5" Touch Screen (21.5")

21.5 Inch PCAP Touch Control Screen G/G Mechanism EETI IC COB Type USB/RS232 Touch Display

Part No.:ET215CTP01
Size:21.5″ inch
Resolution:Optional
Panel Interface:USB,RS232
Display mode:PCAP

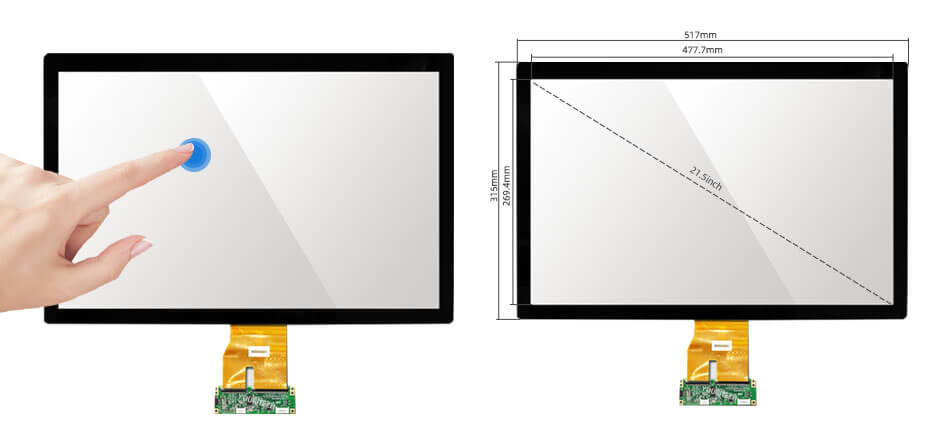

Outline Dimension:517x315mm
Active Area:477.7x269.4mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

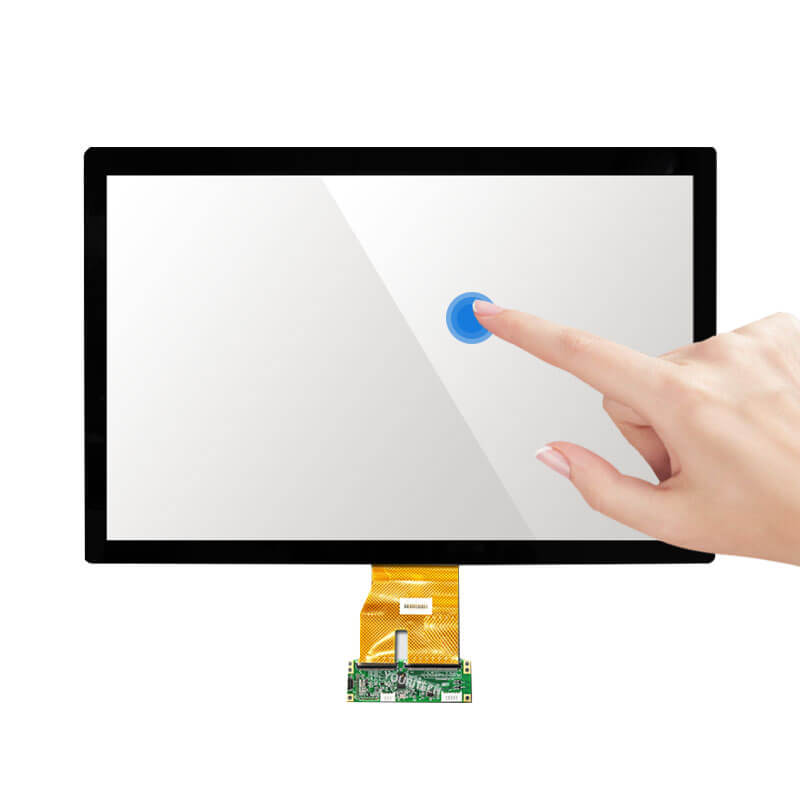

21.5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB,RS232
Display Area: 477.7x269.4 mm
Outline Dim.: 517x315 mm
Operation Temperature: -10~60 °C
Storage Temperature: -20~70 °C

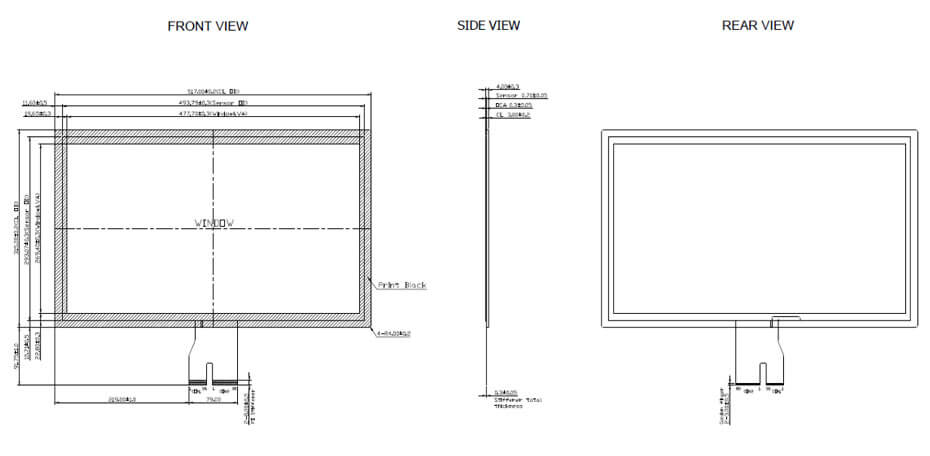

21.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
