LCD above 17.3" (25")

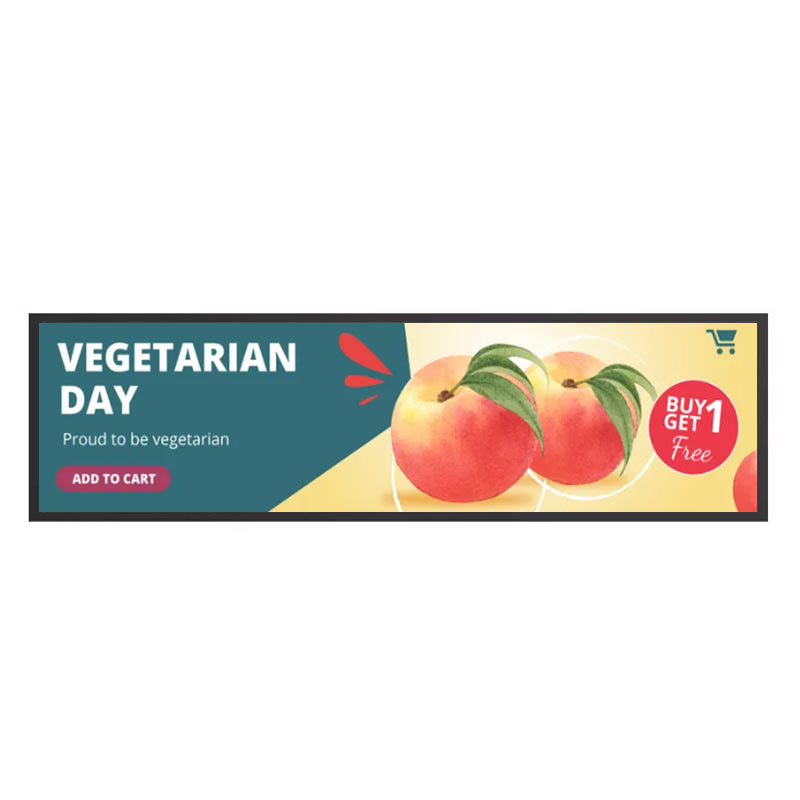

25 Inch Stretched Bar Display 1366x254 IPS High Brightness 700nits LVDS TFT LCD Display

Part No.:ET250BA01-YF
Size:25″ inch
Resolution:1366x254
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:735.4x170.5mm
Active Area:697.7x129.7mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-0~50℃ / -20~60℃
Touch:yes

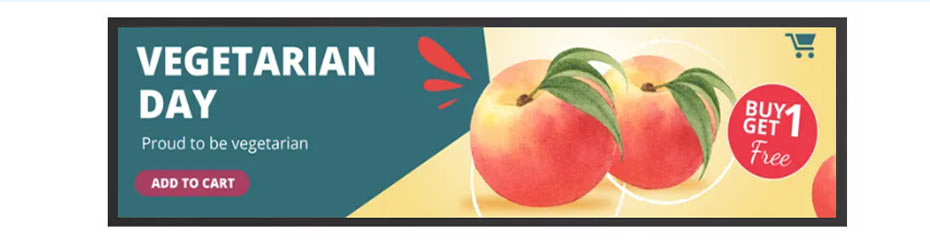

25 Inch Stretched Bar Display Overview
25 Inch Stretched Bar Display 1366x254 IPS High Brightness 700nits LVDS TFT LCD Display.

More 25 Inch Bar Displays For Reference

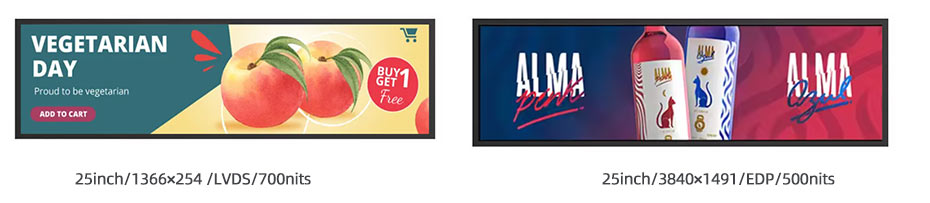

ET250BA01-YF (1366×254, LVDS, IPS, 700nits, 0~50°C, 735.4×170.5mm)
ET250BA01-YU (3840×1491, eDP, IPS, 500nits, 0~50°C, 620×245mm)

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
